2 ddc interpretation, 3 flat panel connector – Kontron JRexplus-DC User Manual
Page 19
KTD-S0008-F Page
14
Graphics
Interface
JRexplus-DC User's Guide
7.2

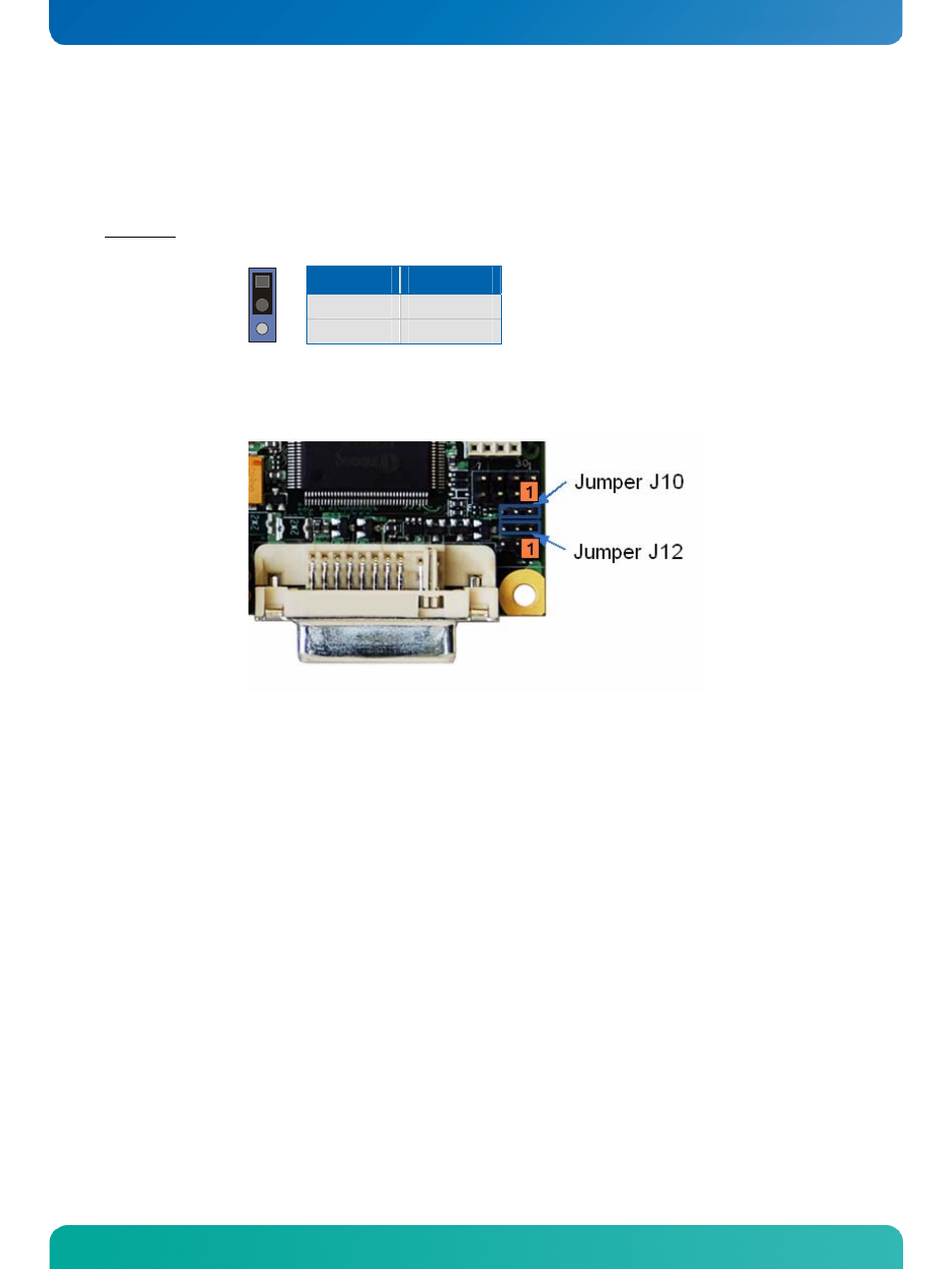

DDC Interpretation
Depending on the jumper settings of J10 and J12 the DDC data delivered by the display is either interpre-
ted for the CRT channel or for the DVI channel.
Important: Both jumpers (J10 and J12) must be set to the same position.
1
7.2.1 Jumper
Setting
7.3
Flat Panel Connector
The LVDS interface for the flat panel is available through the JILI30 connector (30 pins) J4 on the bottom
side of the board. This connector represents the JILI interface. The implementation of this subsystem com-
plies with the JILI specification of KONTRON Technology A/S. A variety of cables for different display types
are available from KONTRON.
Pins
DDC Signal
1 - 2
DVI
2 - 3
CRT
