Slot Connectors
KTA70M/mITX Users Guide
KTA70M/mITX Users Guide
8.4

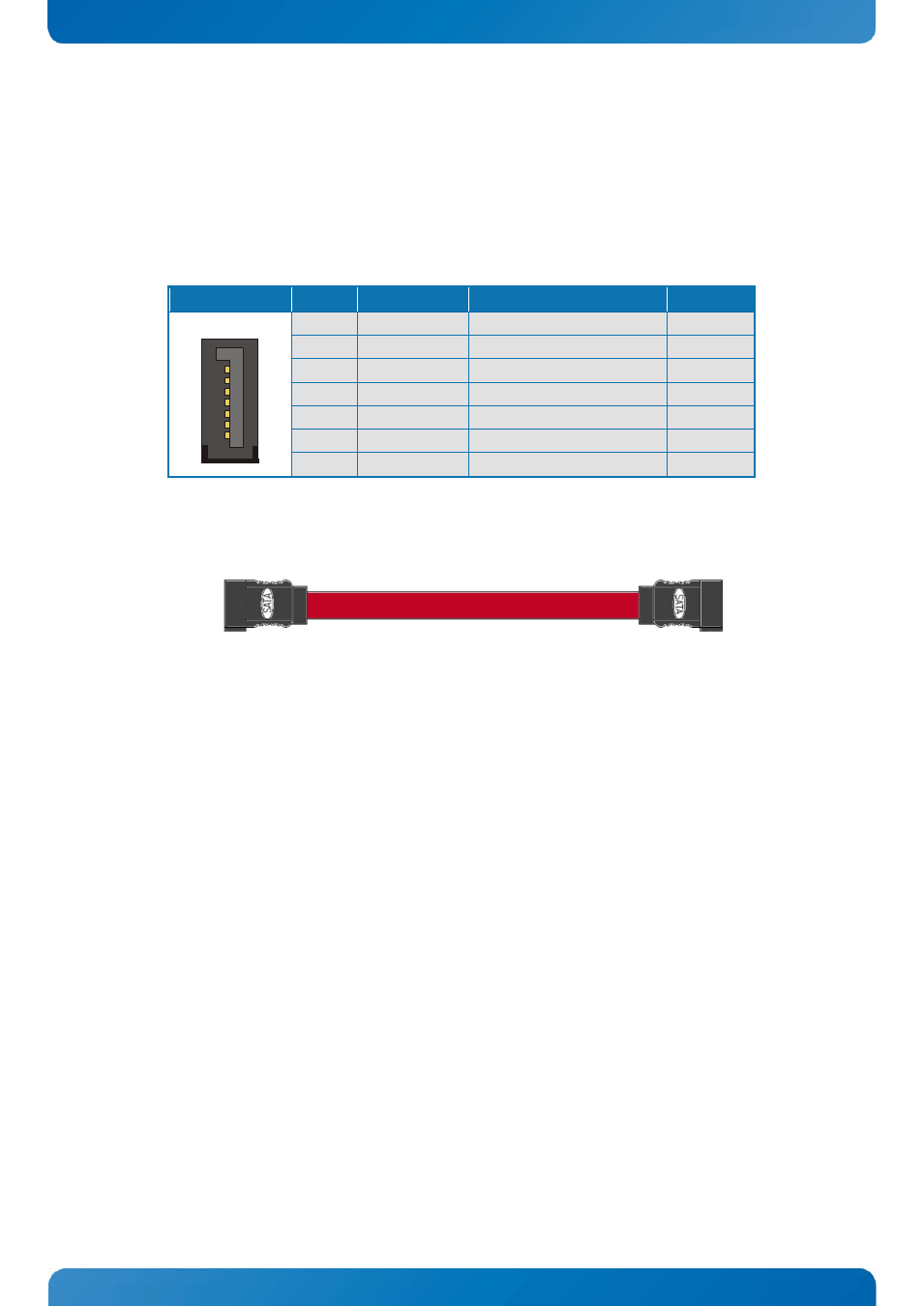

SATA0, SATA1, SATA2, SATA3, SATA4 (J12, J13, J9, J11, J10)
The five SATA ports comply with SATA 3.0 and supports IDE emulation mode, AHCI (Advanced Host
Controller Interface) 1.3 mode and RAID mode (RAID 0 and RAID 1) across all 5 ports.
The SATA 3.0 supports transfer rates up to 6 Gbit/s, but also SATA 1.0 and SATA 2.0 transfer rates are
supported, 1.5 Gbit/s and 3.0 Gbit/s respectively.
The S-ATA
®
interface is available through standard L-type connector (7 pins).
Header
Pin
Signal
Description
Type
1
GND
Ground
PWR
2
TX+
Transmit (positive)
DSO
3
TX-
Transmit (negative)
DSO
4
GND
Ground
PWR
5
RX-
Receive (negative)
DSI
6
RX+
Receive (positive)
DSI
7
GND
Ground
PWR
Available cable kit:
PN 821035 Cable SATA 500mm
