7.3
Power Out Connector (J18)
The Power Out connector can be used to power source external devices like HDD. The connector is type
Molex 22-23-2041 or similar.
Header
Pin
Signal
Description
Type
1
5V
Power +5V
PWR
2
GND
Ground
PWR
3
GND
Ground
PWR
4
12V
Power +12V
PWR
Warning: Hot Plugging power supply is not supported. Hot plugging might damage the board.

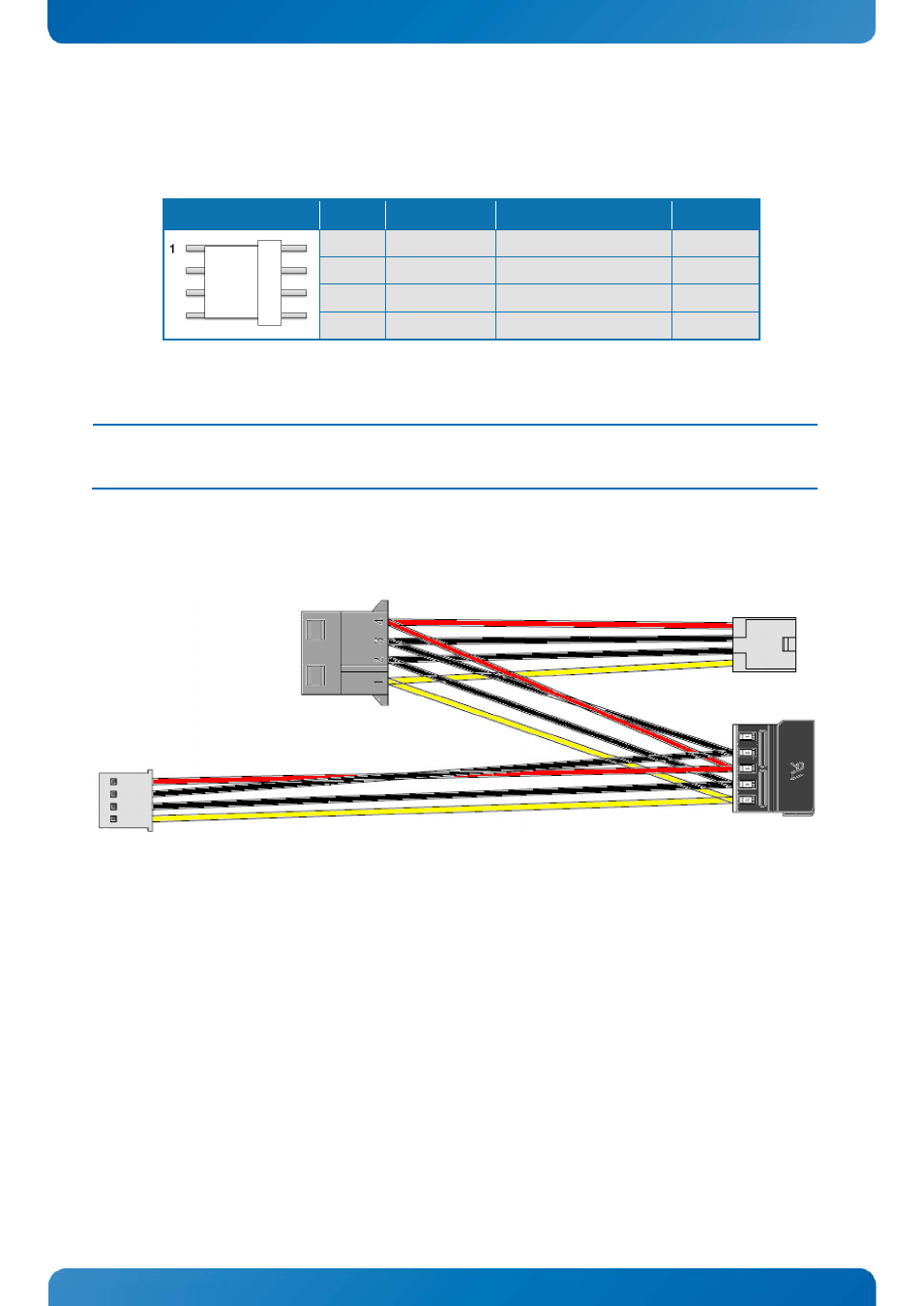

Available cable kit:
PN 1027-3669 Cable Power Out
Notes:
To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
