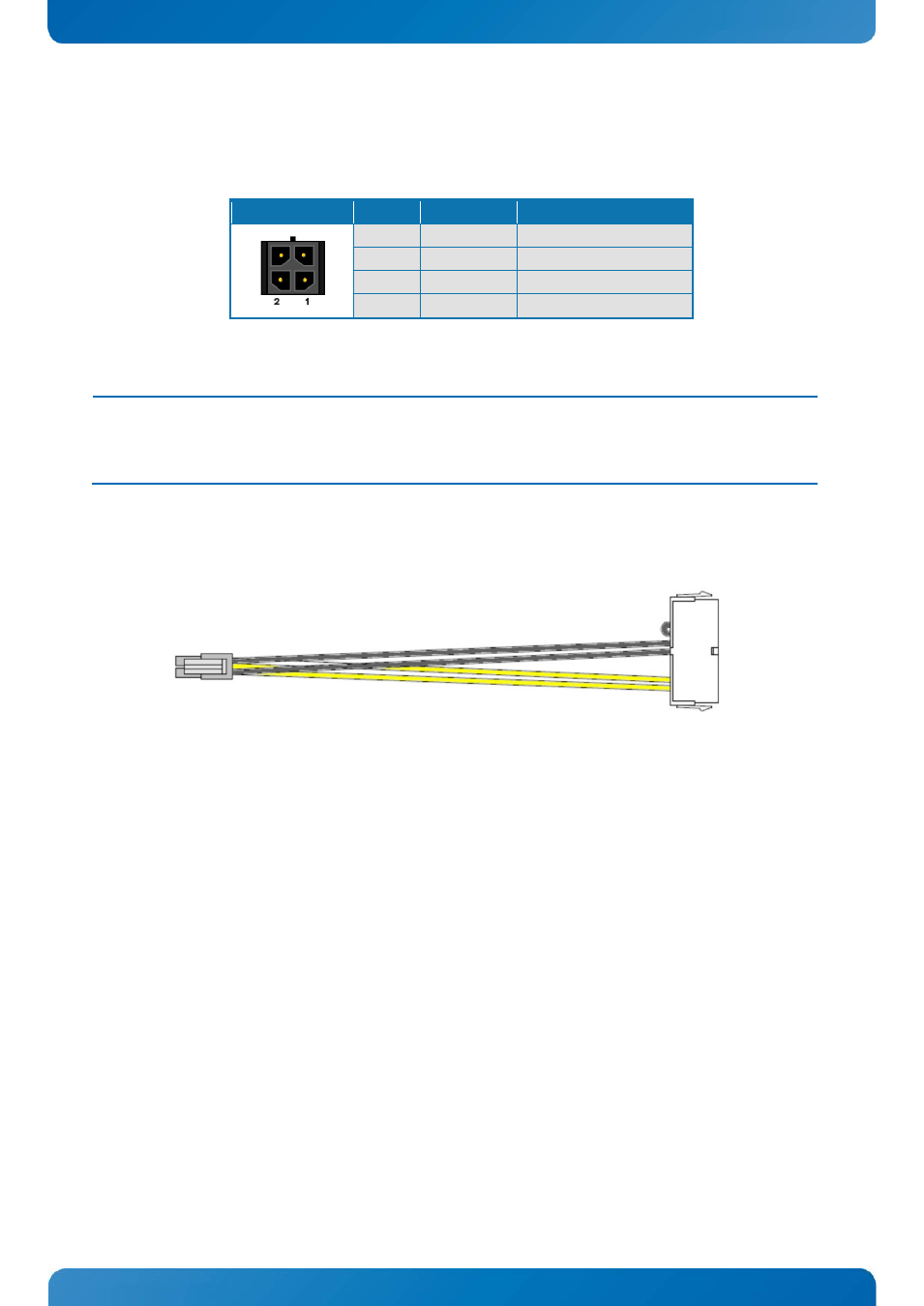

DC Power External Connector (J28)
The KTA70M/mITX board has an external power input connector for supplying voltage in the range from
+11.4V to +12.6V. The power connector is a 4 pin Micro-Fit type Molex 0430450402 or similar.
Header
Pin
Signal
Description
1
12V
Power supply +12V
2
12V
Power supply +12V
3
GND
Ground
4
GND
Ground
Warning: Hot Plugging power supply is not supported. Hot plugging might damage the board.
Available cable kit:
PN 1052-5814 Cable ATX Power for KTA70M, 200mm long.
Notes:
To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
Alternatively the DC Power Internal Connector can be used
