KTD-N0861-B Page 13 Connectors Location
KTA70M/mITX Users Guide
KTA70M/mITX Users Guide
COM1 J23
COM2 J22
USB4/5 J16
SysFan J24
Power J19
(Internal)
ClearCMOS J34
Frontpanel J5
CPUFan J25
SATA4 SATA2 SATA0
SATA3 SATA1
SPI J21
PCIex8 J7
(x16 slot)
PCIex4 J6
(x16 slot)
KBD/MSE J27
Feature J26
SODIMM J1
mSATA J39
(backside)
mPCIe J38
(backside)
12V-SB-In J31
PowerOut J18
Audio J41
NC J36
AlwaysOn J37
IMC debug J35
HDT+ J32
(backside)
(not mounted)
SODIMM J2
Bp J33
(backside)
(not mounted)
LPC J29
USB12 J14
USB13 J14
DP0 J4
LineIn
LineOut
Mic
J40
Power J28
(external)
DP1 J43 USB10 J15
USB11 J15
DP2 J3
ETH1
ETH2
J8
USB6
USB7
USB8
USB9
J20

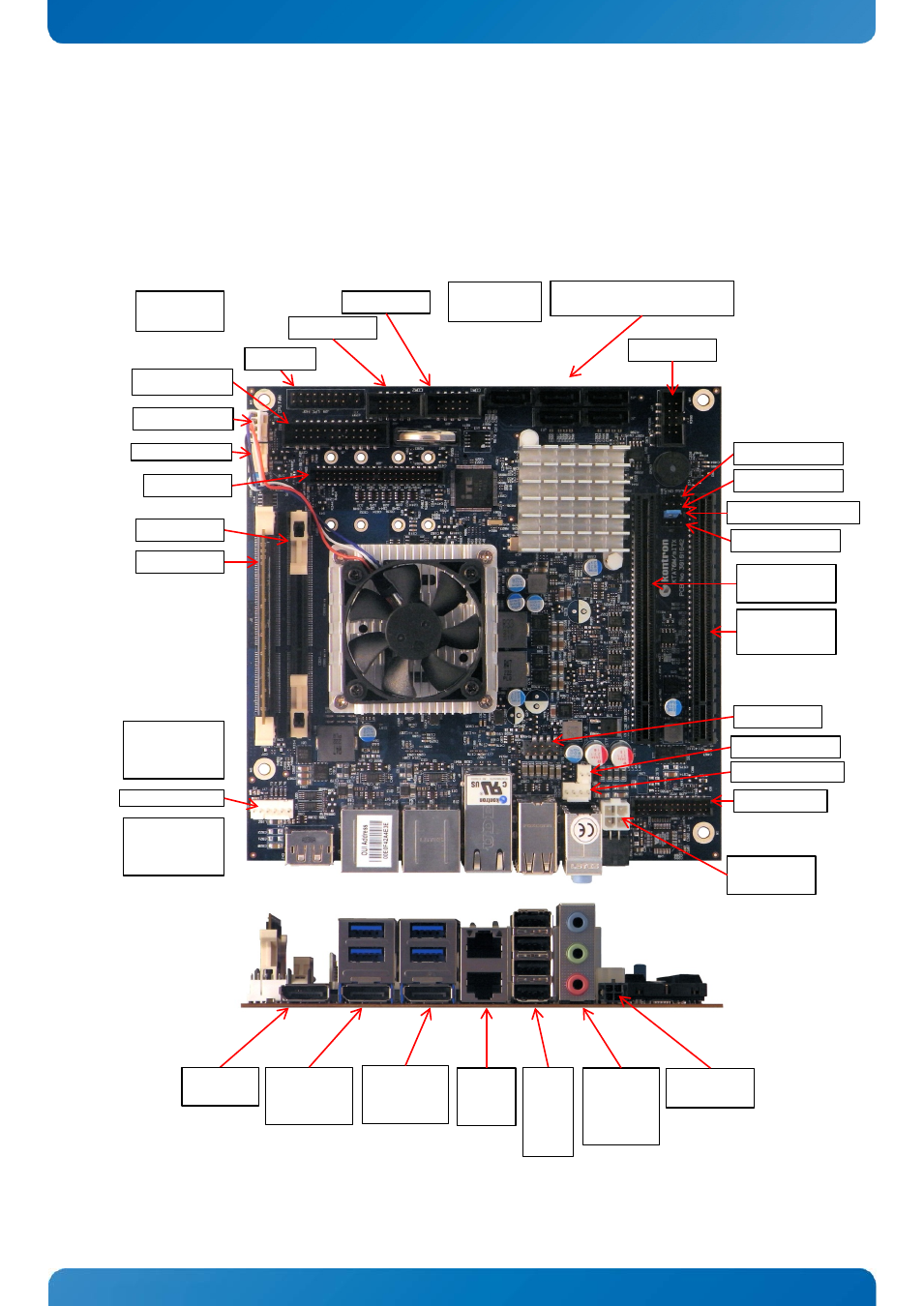

4 Connectors Locations
4.1 KTA70m/mITX Topview
