HI n 1710 Manual Page — 21
analog output signal will indicate 10 mW/cm 2 .

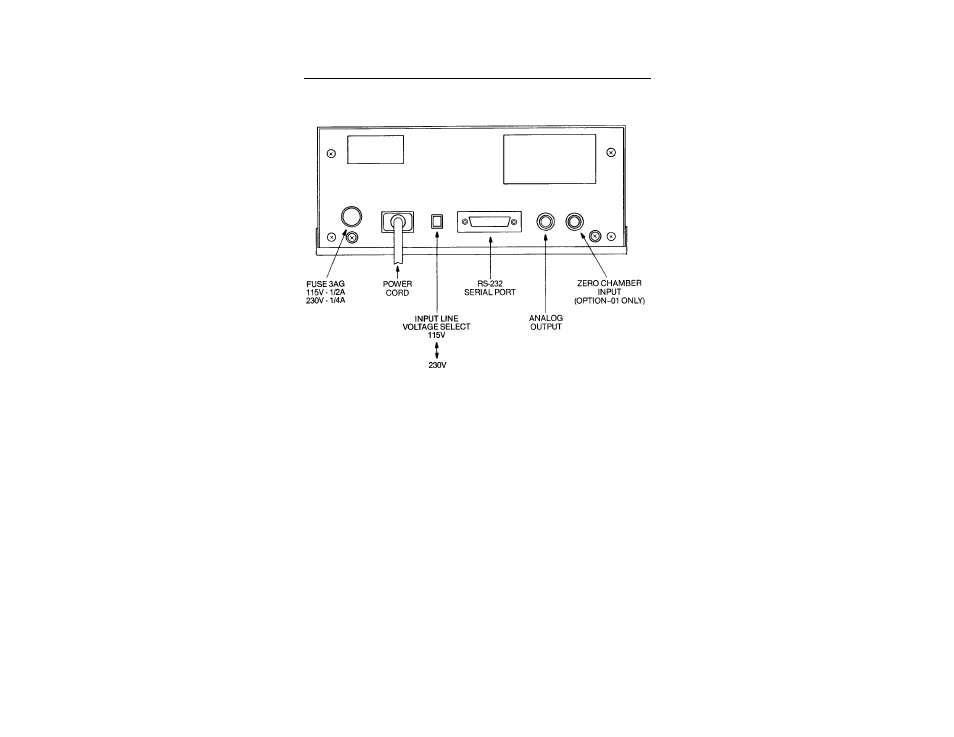

Figure 3
HI-1710 Rear Panel
Important: The resistance of the external load connected
to the analog output receptacle should not be less than
5000 ohms.
Digital (RS-232) Input/Output
A full, two-way RS-232 serial data port is provided as
standard equipment on the HI-1710. External devices are
connected through the standard 25 pin RS-232
receptacle at the rear of the instrument. These external
devices can monitor and/or control the HI-1710. Refer to
Appendix B for pin designations.
With the serial data port, all functions normally accessed
by the touch switch inputs can be controlled externally
and all data normally displayed can be transmitted
