Installation Procedure
Removing the K3Top Cover
Disconnect power and all cables from your K3.
Remove the nine screws to free the top cover as shown in Figure 1. After the cover is open, lift it gently to
reach the speaker wire connector. Unplug the speaker then set the top cover aside in a safe place.
Whenever you remove screws from a panel, if one screw seems too tight to loosen
without damaging it, first loosen the other screws then try again. Sometimes one screw
binds in its hole when the other screws are tightened.

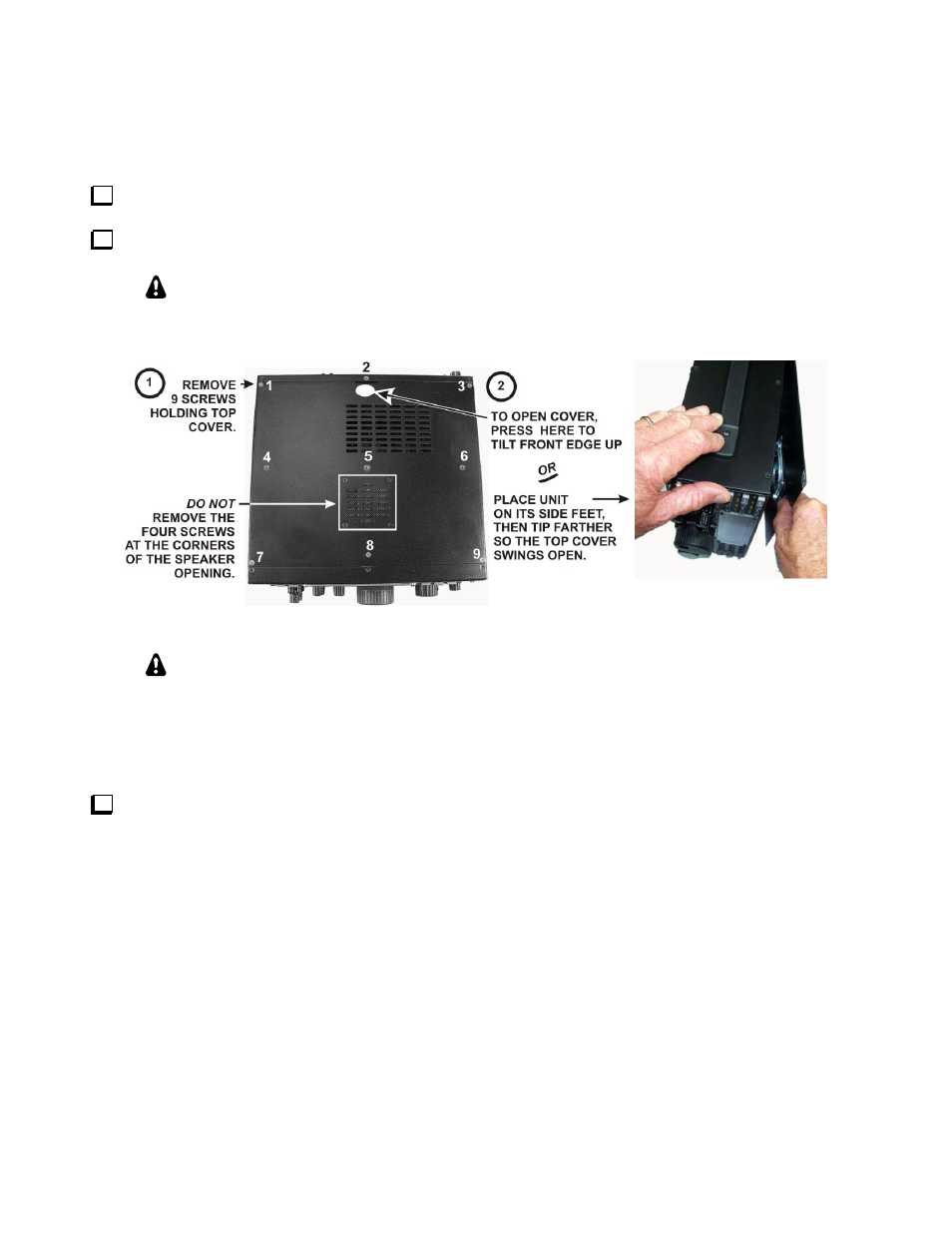

Figure 1. Removing K3 Top Cover.
CAUTION:
Touch an unpainted metal ground or wear a grounded wrist strap
before touching components or circuit boards inside the K3. See Preventing ESD Damage on
page 5 for more information.
Preparing the K3 for Installing the K144XV
Remove the stiffener bar that runs from side to side across the top of the K3 chassis. This is the bar the
three screws across the center of the top cover thread into. The bar is held in place by a single screw at each side
and, if the KPA3 100 watt option is installed, by two screws attaching it to the KPA3 shield.
