Elecraft K144XV Manual User Manual
Page 15
15

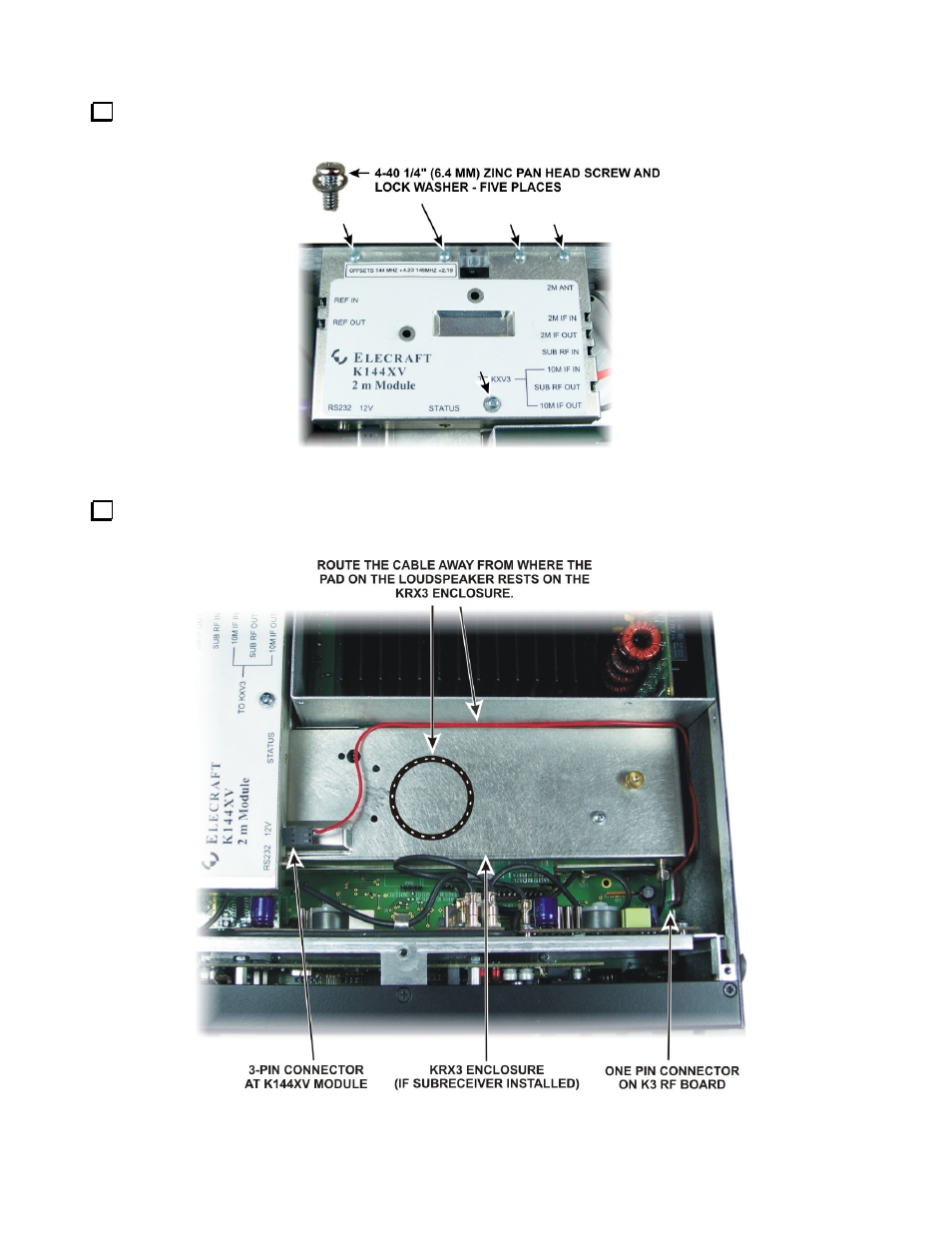

Install the top cover on the K144XV module. Ensure the lip fits outside the bottom cover on all three sides,
then secure the cover with five 4-40 1/4” (6.4mm) zinc pan head screws as shown in Figure 8.
Figure 8. Installing the K144XV Module Top Cover.
Connect the power cable you assembled earlier to the one-pin connector you installed on the RF board and
the 3-pin connector on the K144XV module as shown in Figure 9.
Figure 9. Installing K144XV Power Cable.
