Tighten all four screws that you just installed in the battery holders until the heads are sunk into the plastic
as shown in Figure 47. You may need to stand the assembly on the heat sink and put a second screwdriver on
the corresponding screw on the bottom cover to keep the standoff from turning while you tighten the screw in
the battery holder.
CAUTION!
Failing to tighten the battery holder screws as described may result
extensive damage to your KX3.

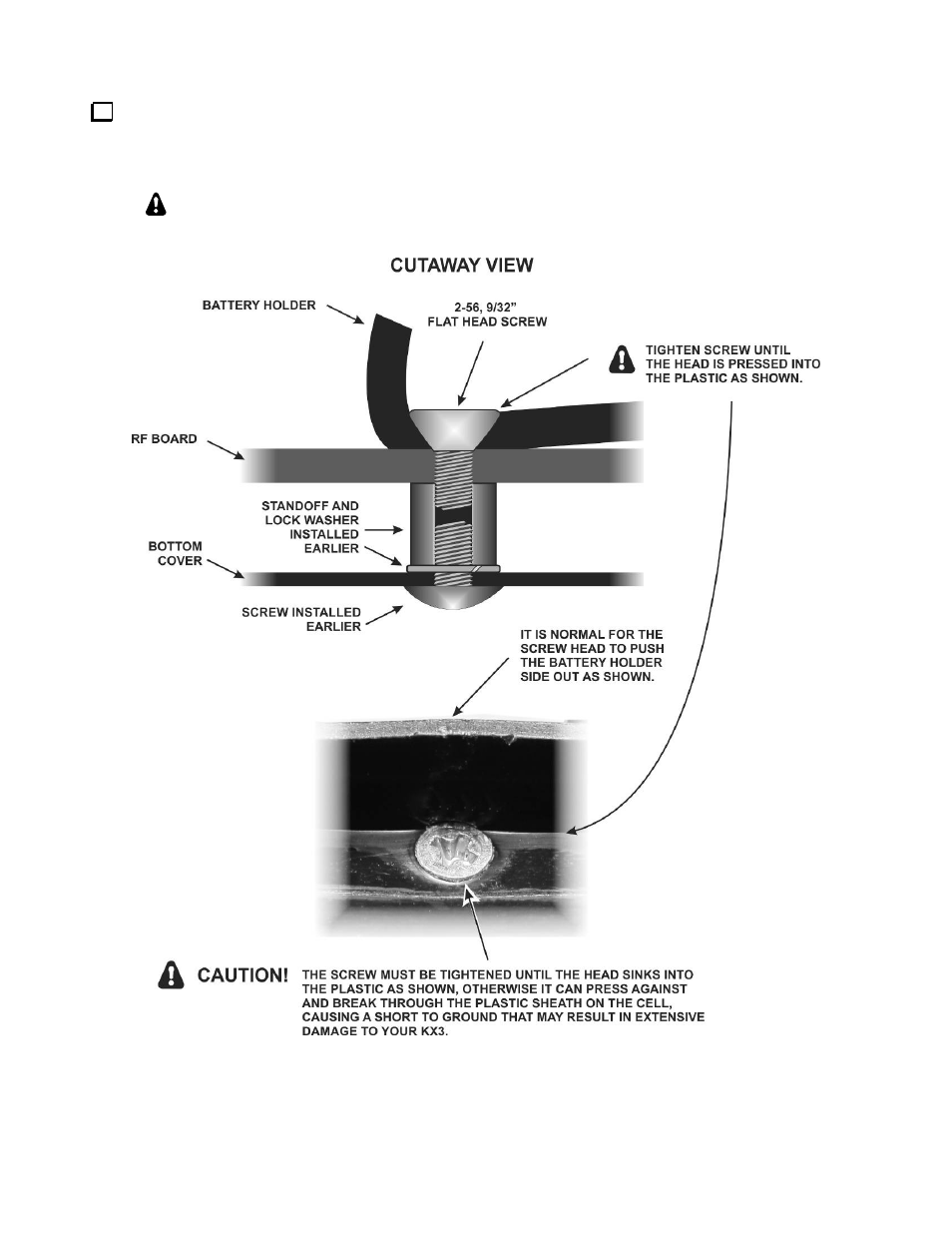

Figure 47. Final Tightening Battery Holder Screws.
