Elecraft KX3 Assembly Manual User Manual
Page 27
25

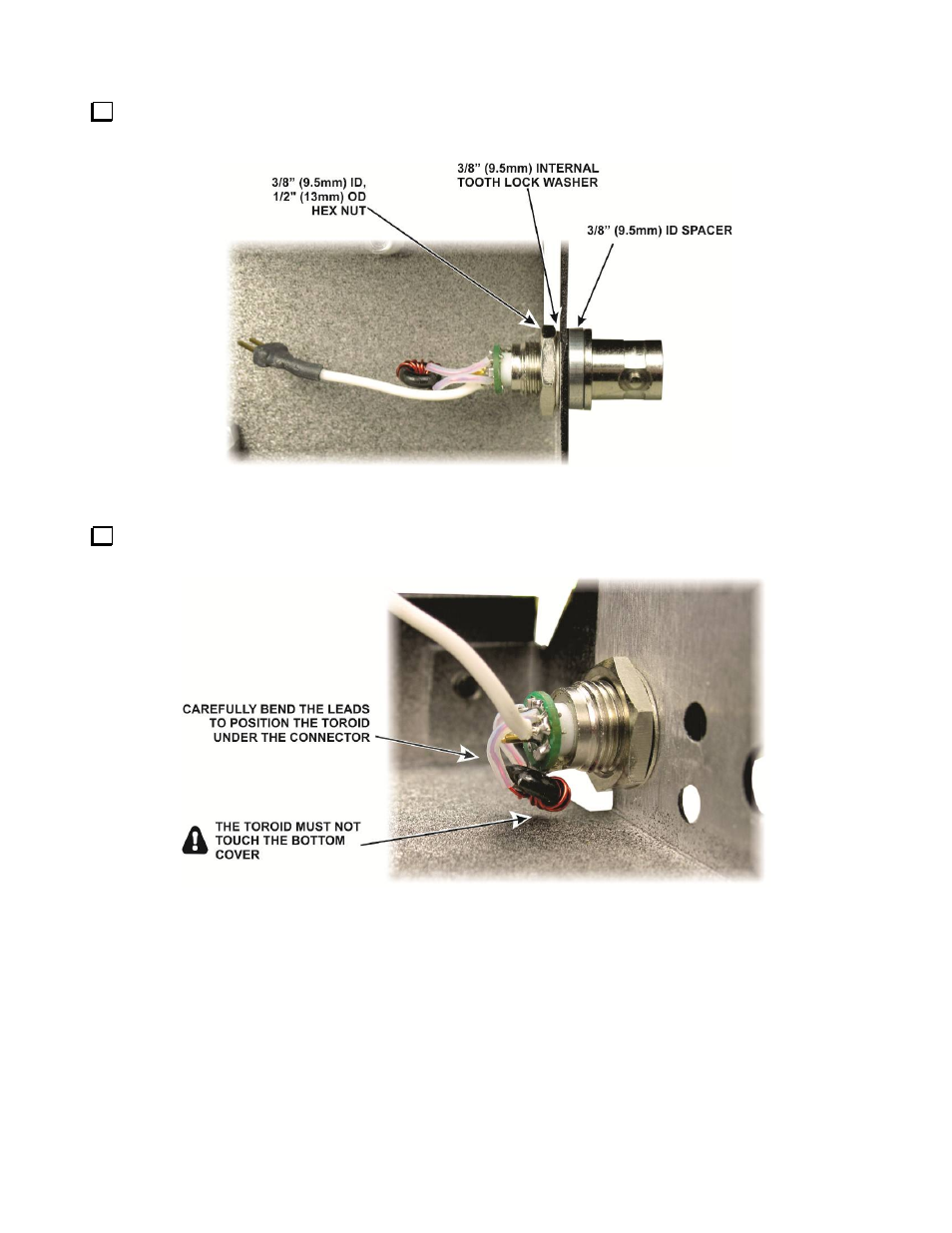

Mount the antenna connector assembly in the largest hole in the bottom cover end plate as shown in Figure
35. Note that the hole has a flat side. Align it with the flat on the connector.
Figure 35. Antenna Connector Mounted on Bottom Cover.
Carefully bend the leads to position the toroid underneath the antenna connector as shown in Figure 36. Be
sure the toroid does not rest against the bottom cover.
Figure 36. Positioning the LPF Toroid Under the Antenna Connector.
