Install a flat washer and black nylon screw on each tilt leg as shown in Figure 31. Note the orientation of

the screw as well as the rubber foot that you installed earlier. They must be as shown for the foot to work
properly.

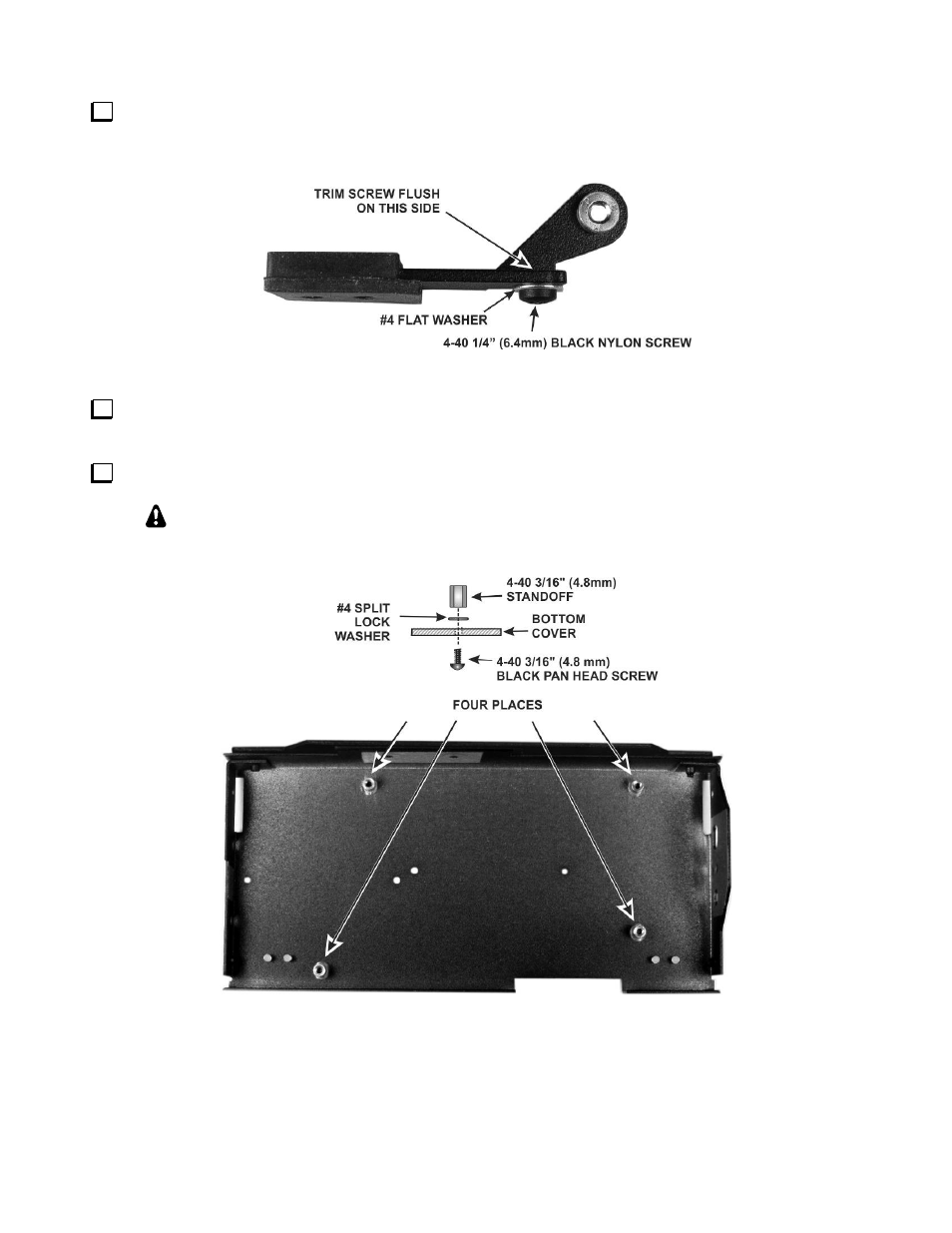

Figure 31. Placing Nylon Bumpers on the Tilt Legs.

Verify that you trimmed the screws flush with the legs as shown in Figure 31. Set the legs aside. They will

be installed later.

Install the four #4 (larger) standoffs in the bottom cover as shown in Figure 32.

CAUTION!

Place the lock washers between the standoff and the bottom cover

as shown. If they are left out the cover will strike the RF pc board when it is
installed.

Figure 32. Installing 4-40 Standoffs in the Bottom Cover.
