A 9-volt battery is included as a backup power source for the alarm siren if power is lost.
To disable low battery indication, slide "DisLoBat" switch to 'ON'. See EM ELECTRICAL OPTIONS page.
LOW BATTERY INDICATION
If battery voltage is low (7 volts or less), unit remains armed but LED flashes RED and unit beeps
twice every 45 seconds. Replace battery as soon as possible.
BATTERY BACKUP FOR ALARM
With door closed, insert key in the cylinder, turn CCW then back to the home key position and remove it.
LED glows green. Authorized personnel can exit the door during this rearm cycle. After a 1, 5 or 15-second
arming period, alarm issues three quick beeps and LED goes off, indicating that the unit is armed.
Insert key, turn CW to a stop. Green LED will blink twice to indicate the unit is disarmed.
To exit, push and maintain pressure on the pushpad. LED flashes RED and alarm pulses on and off for 15
seconds. After 15 seconds, alarm issues short and long pulses to indicate that you can exit by depressing
the pushpad. Alarm sounds continuously and LED is steady RED. Turn key CW to stop alarm. In case of fire,
the fire alarm over-rides the 15 second delay and the door opens without delay when the pushpad is pushed.
ARMING AND AUTHORIZED EXIT
performing alarm test operations
push and hold deadlatch while
NORMAL OPERATION
EXITING UNDER ALARM
DISARMING
For BENCH TESTING:
Deadlatch
Turn Key CW To Disarm
Red LED while alarming
Glowing Green LED
Turn Key CCW To Arm
Green LED
Red LED
PushPad
(LHR shown)

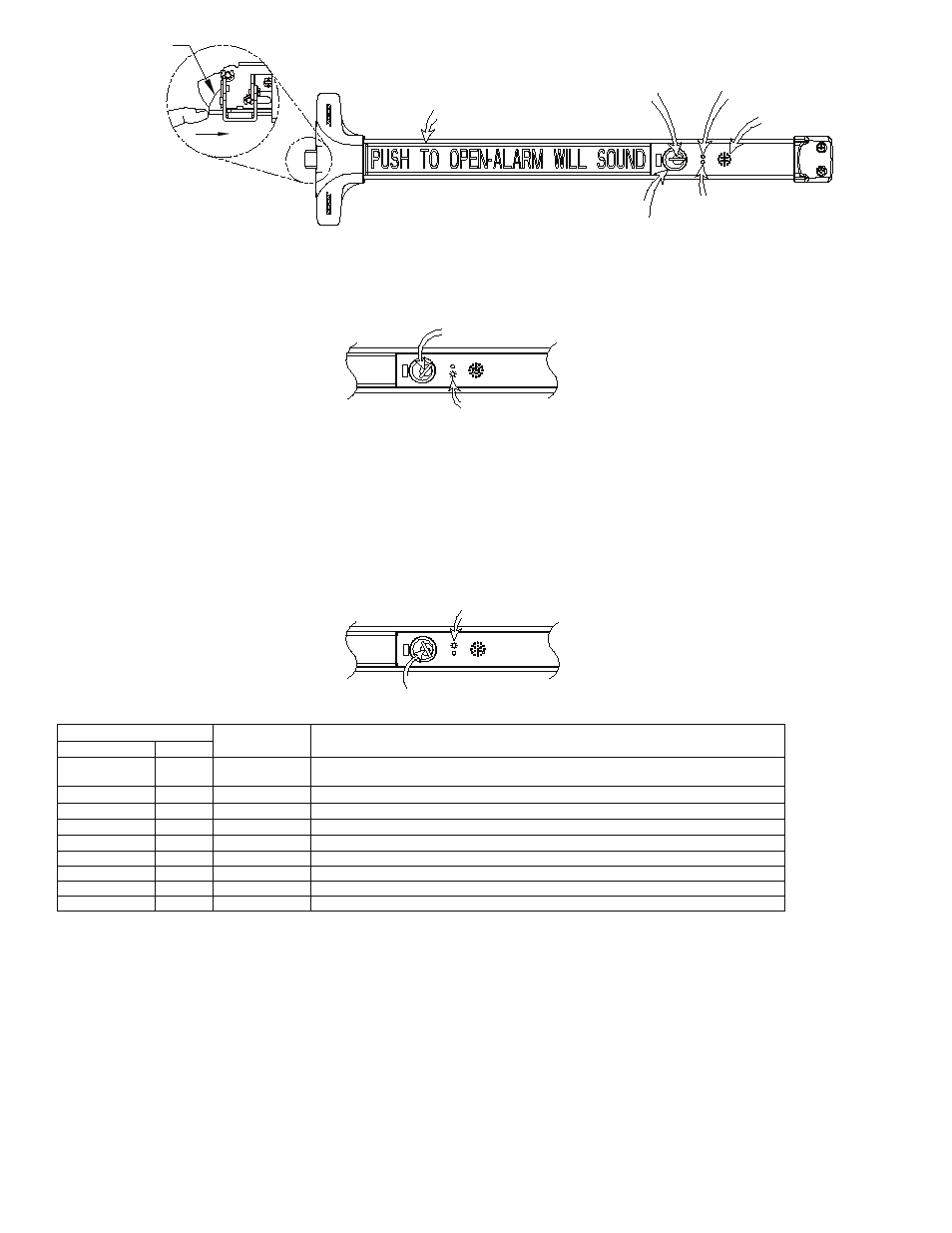

DELAYED EGRESS OPERATIONS
Mortise
Cylinder
Position
Home Key
Siren
Indicates the unit is in process of arming. The siren will chirp three times to indicate the unit
is armed and green LED will turn off
DOUBLE BLINK DOUBLE CHIRP OFF
LED COLOR
SLOW BLINKING
FAST BLINKING
ON
ON
OFF
RED
OFF
Pushpad is depressed, delay to open started
This indicates either armed or disarmed
Delay to open expired, door has been opened ON
SLOW PULSE
FAST PULSE
OFF
OFF
OFF
ON
OFF
SIREN SOUNDS
THREE CHIRPS
GREEN
ON
FUNCTION
BLINK
BLINK
OFF
OFF
Factory installed jumper removed from terminals 3 & 4
Delay to open expired
Low Battery - every 45 seconds
Armed - status ON
Disarmed - ON
