When required), 98 strike installation, Strike hook installation – Detex V40 EE User Manual
Page 15
98 Strike Locator
(Caution: This installation is required on fire rated door openings with removable mullion.)
For mounting hole locations use Strike Locator Template provided.
#25 or 9/64"
tap 10-24
#22 or 5/32"
pilot hole
#10 Sheetmetal screw
DRILL CHART
10-24 Machine screw
Mark and drill holes as necessary.
#7 for 1/4-20 machine screws,
For #14 self-drilling screws, no pilot
hole necessary.
7/64" for 6-32 machine screws,
9/64" for #6 sheetemtal screws
(see fastener table)
(when required)
Door
Mullion Post
99 Strike
Strike Hook

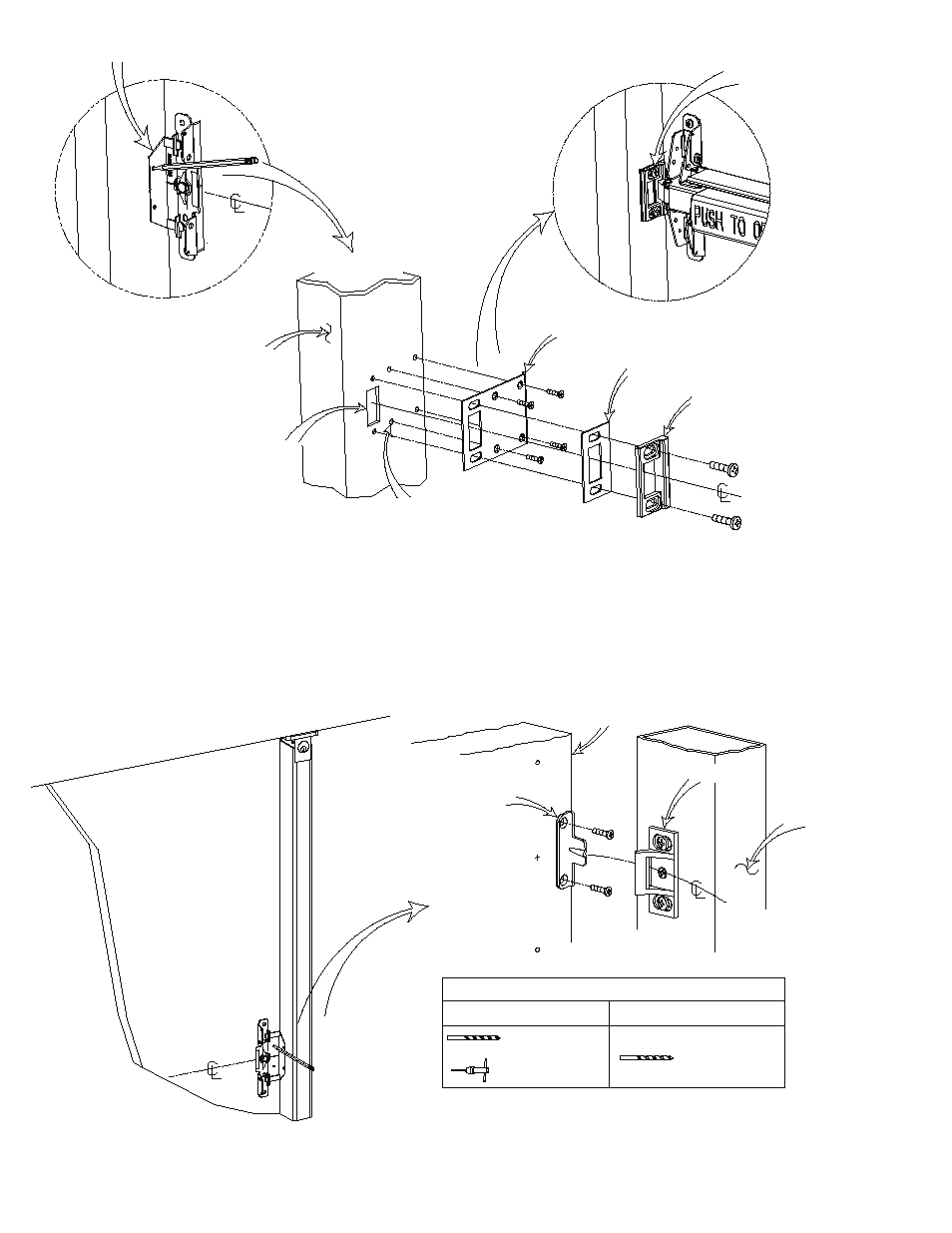

98 STRIKE INSTALLATION
Shim (if necessary)
98 Strike
Shield (if necessary)
Cutout per
Door frame
STRIKE HOOK INSTALLATION
98 strike
Align the strike with
Firmly tighten screws
the latchbolt.
Door
Door
