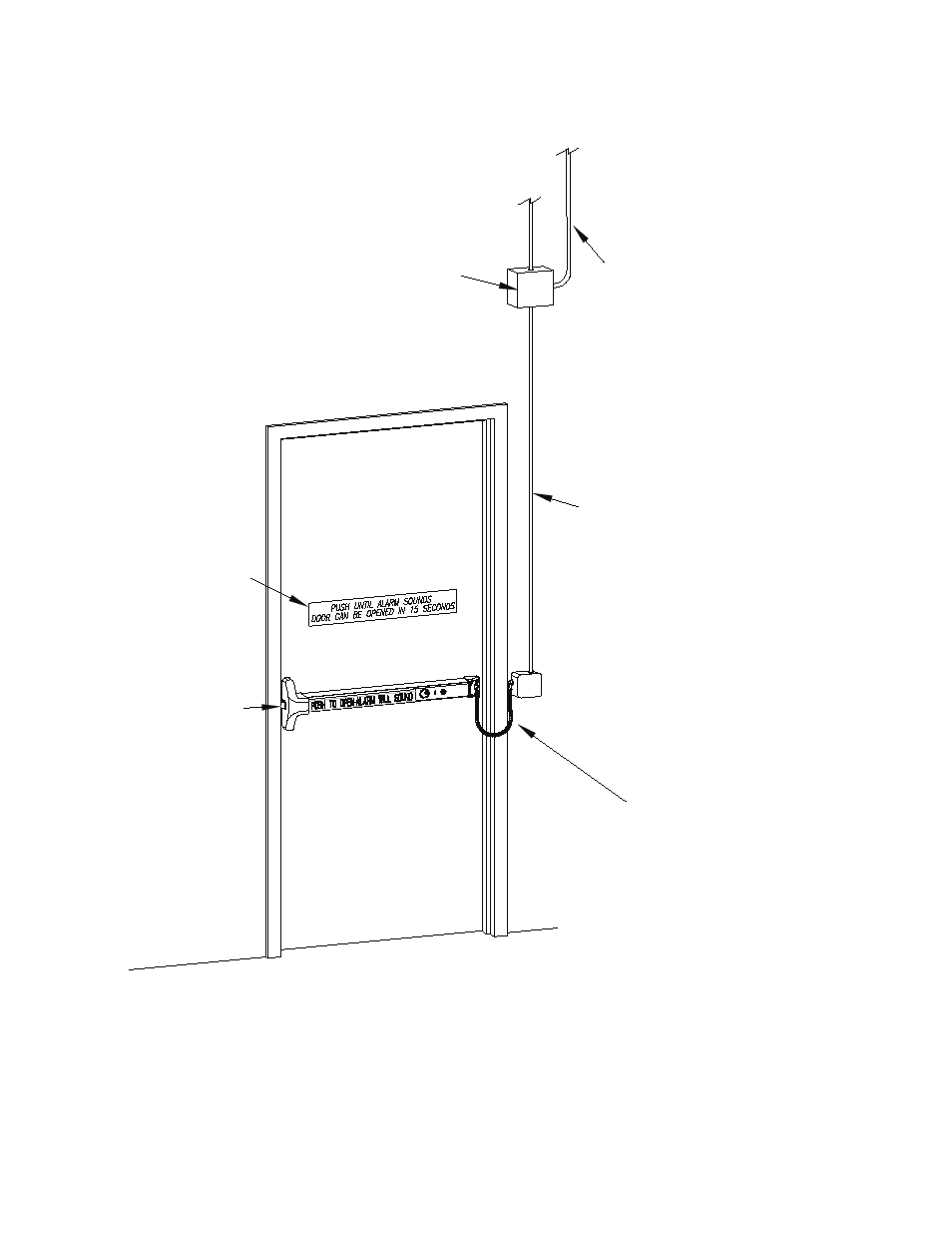

RISER DIAGRAM
DETEX FILTERED AND REGULATED POWER SUPPLY
WITH FIRE ALARM SYSTEM LOOP 24 VDC @1 AMP MIN
DETEX REQUIRES THE POWER SUPPLY BE LOCATED
WITHIN 40 FEET OF THE DEVICE
REQUIREMENTS:
MIN. 22 GA STRANDED WIRE FOR SIGNALING
MIN. 18 GA STRANDED WIRE FOR POWER
DETEX DELAYED EGRESS
PANIC HARDWARE
INSTALLED BY
TRAINED TECHNICIAN
DOOR SIGN SUPPLIED WITH
DETEX DELAYED EGRESS
PANIC HARDWARE
REFER TO WIRING &
FIRE ALARM DIAGRAMS
FOR WIRING
INSTRUCTIONS
J
THE LOSS OF POWER OR OPEN FIRE
ALARM CIRCUIT WILL ELIMINATE THE
DELAYED EGRESS FUNCTION
PROVIDE WIRING CONDUIT, CONNECTOR,
ETC BETWEEN DETEX POWER SUPPLY AND
FIRE ALARM CONTROL PANEL AS REQUIRED
TO ALLOW THE FIRE ALARM SYSTEM TO
OVERRIDE THE DETEX DELAYED EGRESS
FEATURE DURING A FIRE ALARM
