Projector
Front of Board
Projector

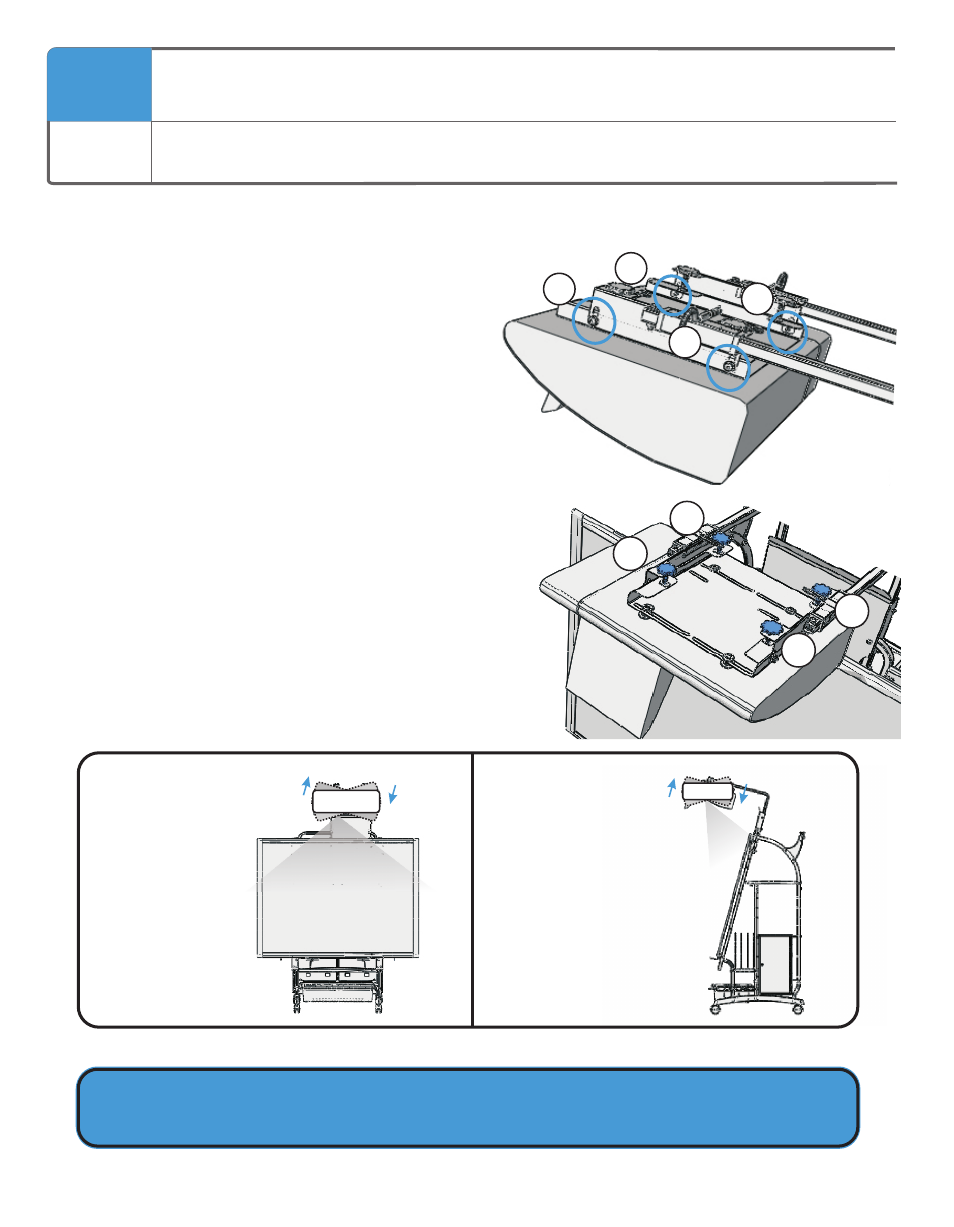

Adjusting Projector for Use/Correcting the Projected Image
Turn Hardware Items ‘W1 to W4’ to
tilt the projector upwards or
downwards or in each corner.
Adjust Keystone & Zoom settings
on the Projector to make the
image fill the screen.
Re-tighten Hardware Items ‘Z’
to lock in place once desired
image is achieved.
Loosen Hardware Items ‘Z’ in FOUR
locations to allow for adjustment of
the projected image.
28
Z
Z
Z
Z
W3
W2
W1
W4
W1/2/3/4
Side Tilt Adjust
W1/2/3/4
Vertical Tilt Adjust
Looking from
the Side
Adjusting Projected Image
