Copernicus IS702 - Manual (Page 35)

IS600-IS700 Series - Version B - December 16, 2013 - Copernicus Educational Products Inc.

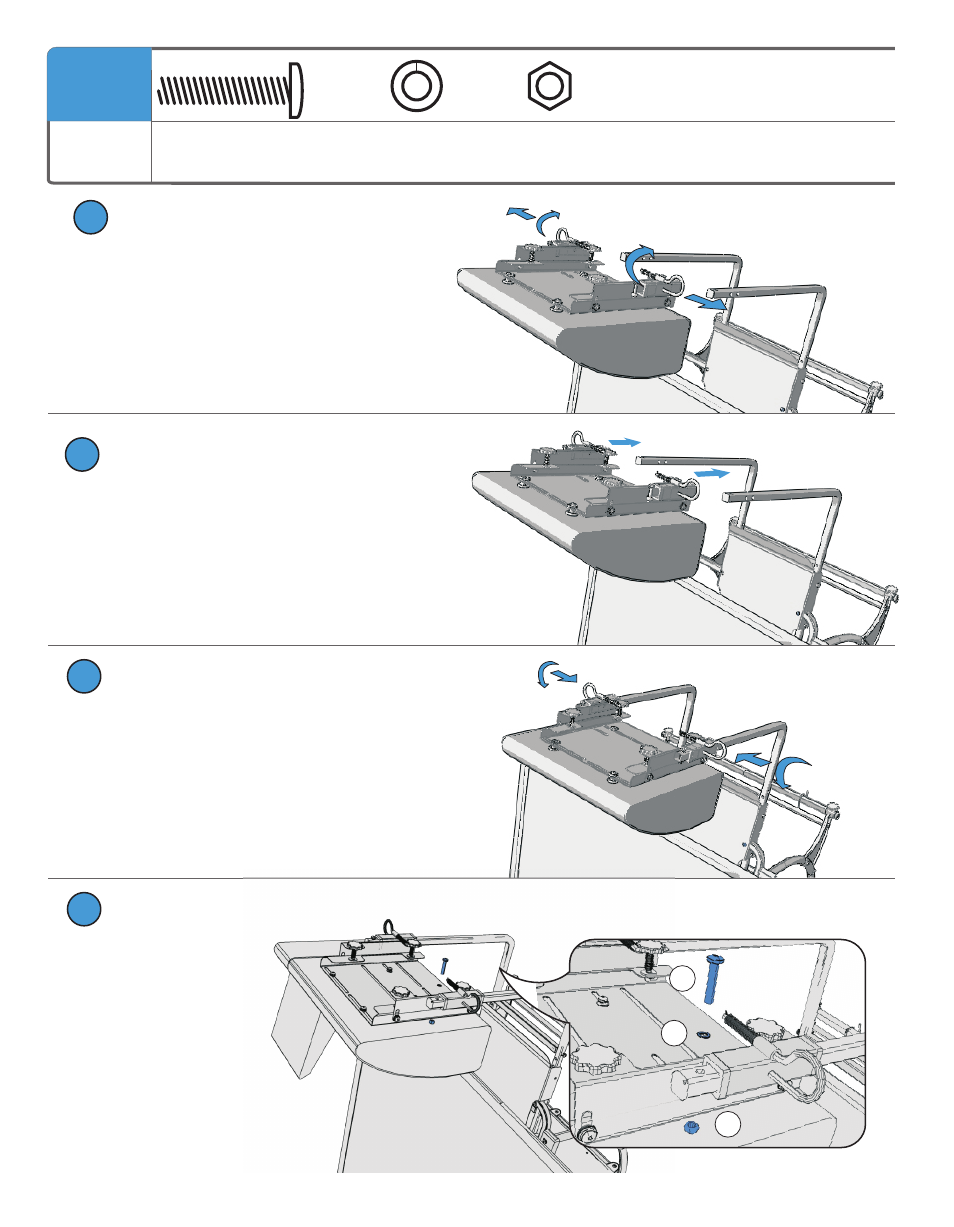

24.2
Actual Size:
Pull and turn Locking Pins to
disengage them from their
locking position
Slide Projector assembly onto Arms
until Pin Snaps at proper position
according to the projector and board
combination used.
(Refer to Step 24.1 for proper position)
1
2
Push Pin in hole to fix Projector in
position.
(Refer to Step 24.1 for proper position)
3
Snap!
Snap!
Assemble stop
bolts at ends of
projector arms.
4
DD
XX
YY
DD
x 2
YY
x 2
XX
x 2
35
