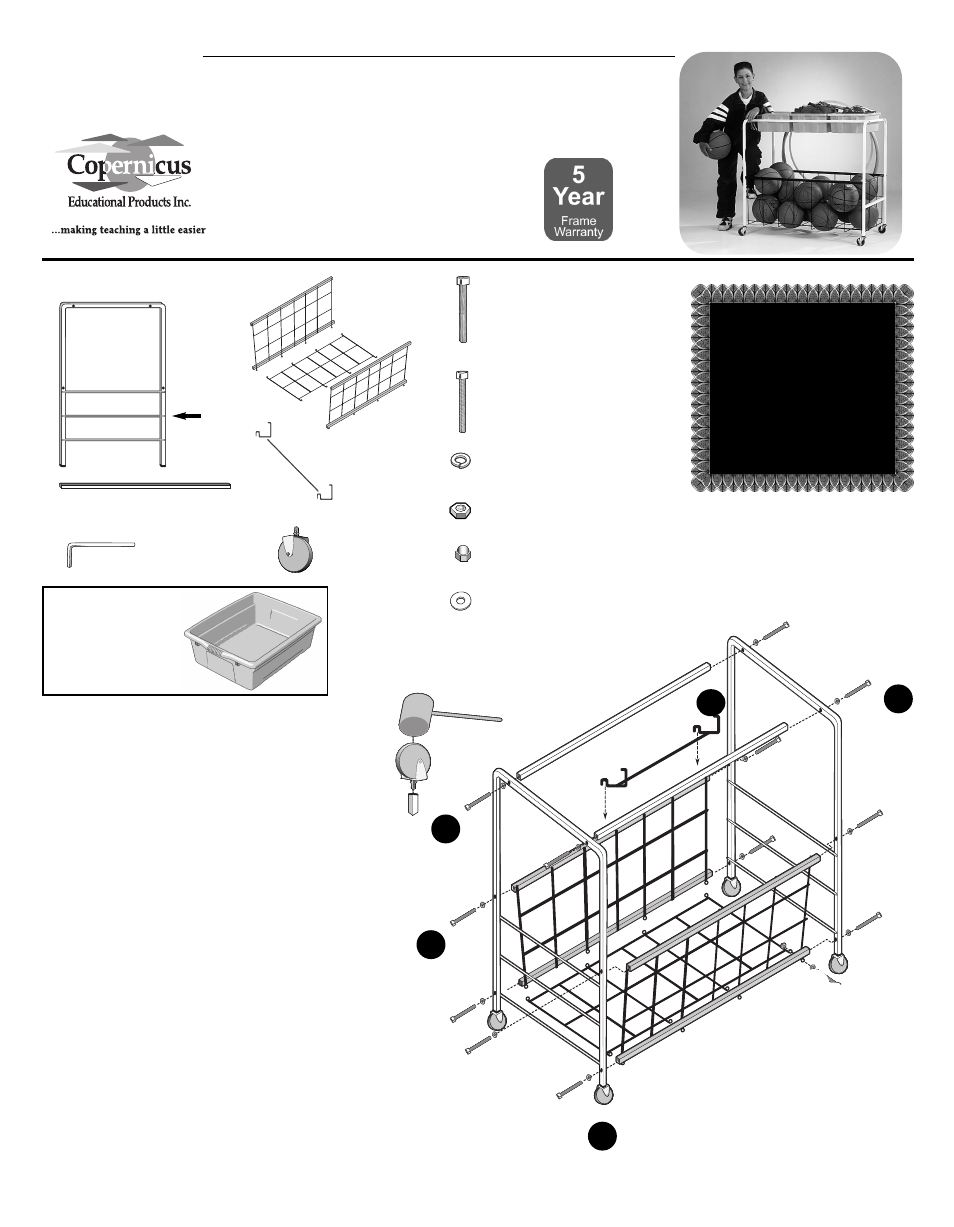

Copernicus BC300 User Manual
Phys-ed cart, X 20, X 12

21-5/8" x 34"
end tube frame
x 2
wire ribs
stretchers 39"
x 2
ball rack (3 parts)
x 1
To validate your five year
frame warranty and
lifetime tub warranty,
submit the ON-LINE
form at
www.copernicused.com
User name: quality
Password: safety#1
5" casters
(2 with brakes)
(2 without brakes)
x 4
M6 lock washer
x 20
M6 nut
x 8
Allan key
x 1
hula hoop assembly
x 1
(3 parts)
3
8
2
2
1
acorn nut
x 2
flat washer
x 2
BC300-2007-A
Phys-Ed Cart
Contents of Box 1
If parts are missing or you experience problems, please call:
1-800-267-8494
Have your packing slip ready for reference
or email
Visit
www.copernicused.com to browse our entire line of educational aids
Assembly:
1. Insert caster stems into black caster inserts on
frames. Push casters in by hand until they bottom
out against lip on caster stem. If you find they are
hard to push in, tap gently directly over the stem
with a mallet until caster bottoms out against lip
on caster stem.
2. Assemble on the side. Attach the two end tube
frames to the stretchers with the M6 x 45mm bolts
and lock washers as shown.
Do not tighten.
3. Attach rack stretchers keeping wires to the inside
using the M6 bolts and the lockwashers.
4. Turn upright.
5. Attach bottom of ball rack to sides with
M6 x 30mm bolts, lock washers and nuts.
6. Tighten all bolts.
7. Fasten Hula Hoop assembly together using 2 flat
washers and acorn nuts
8. Snap the hula hoop assembly on a top stretcher.
9. Place the three tubs between the top stretchers.
N
Noottee:: Only when total assembly is complete - tighten
all bolts.
Contents of Box 2
Royal
TM Open Book
Tub
x 3
M6 x 45mm (long) bolt
x 12
M6 x 30mm bolt
x 8
BC300-2007-A
April 24, 2007
1 of 1
