Copernicus IS702 - Manual (Page 25)

IS600-IS700 Series - Version B - December 16, 2013 - Copernicus Educational Products Inc.
SMARTBoard
640 OR 660
(Sold Separately)
Magnetic Dry
Erase Whiteboard

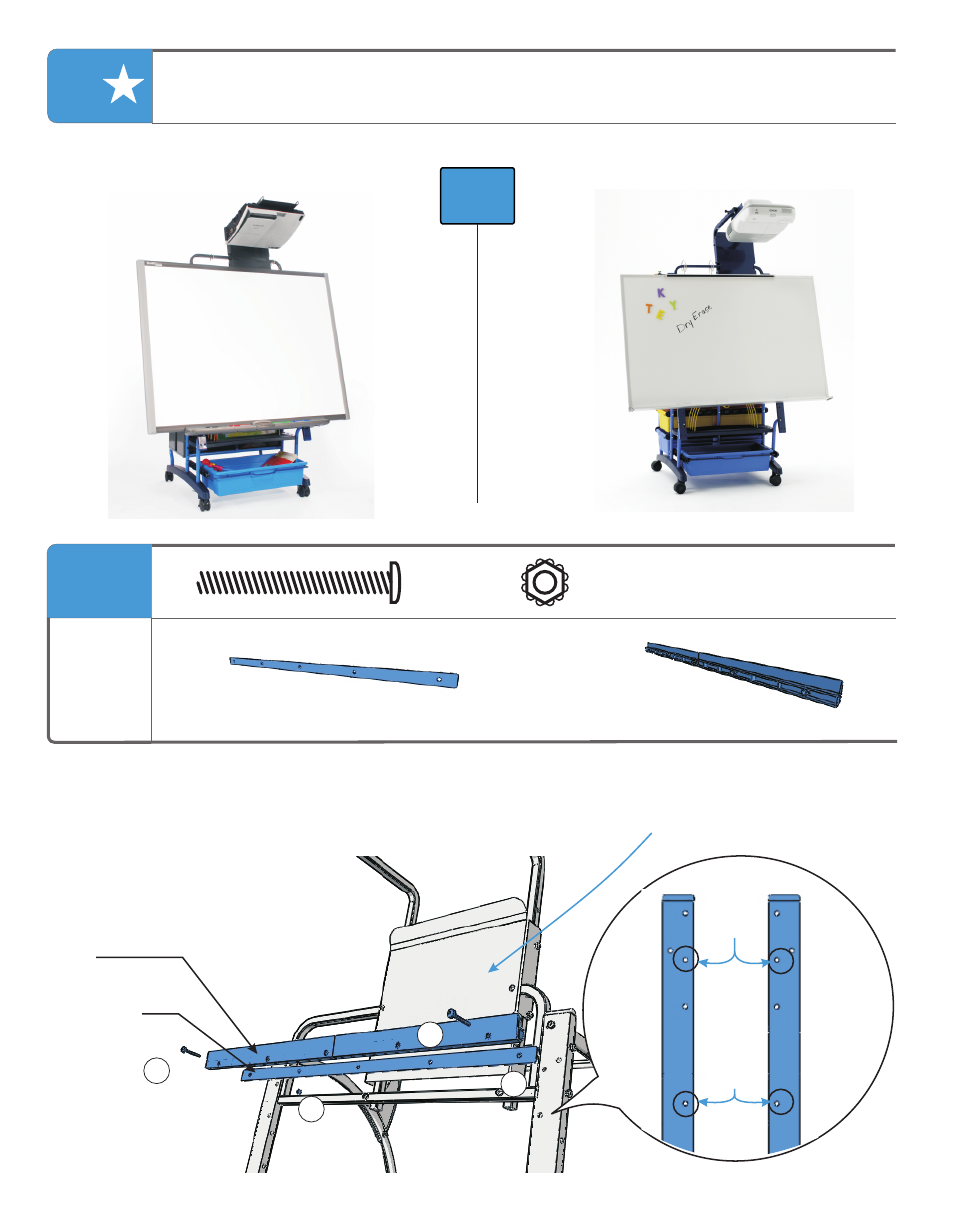

IMPORTANT - Assembly Option
Select Steps according to the Center you are building!
For IS600 series
See Step 19A to 22A, then proceed to
Step 23 on.
OR
For IS700 series
See Step 19B and 20B, then proceed
to Step 23 on.
19A
You will need:
(Not to Scale)
Actual Size:
Attach Wall Mount Board Bracket and Support
Wall Mount Board
Bracket
Support for
x 1
Wall Mount
Board Bracket
Support for
Board Bracket Wall Mount
TT
x 2 FF
x 2
FF
TT
SMARTBoard Wall Mount Board
Bracket x 1 -
This is found in the
box with your SMARTBoard
Image shown for Smartboard 660.
Use same technique for
Smartboard 640.
Left Side Right Side
This Hole for
SB 660
This Hole for
SB 640
Wire Cover Plate not
included
!
FF
TT
25
