IS600-IS700 Series - Version B - December 16, 2013 - Copernicus Educational Products Inc.
14A

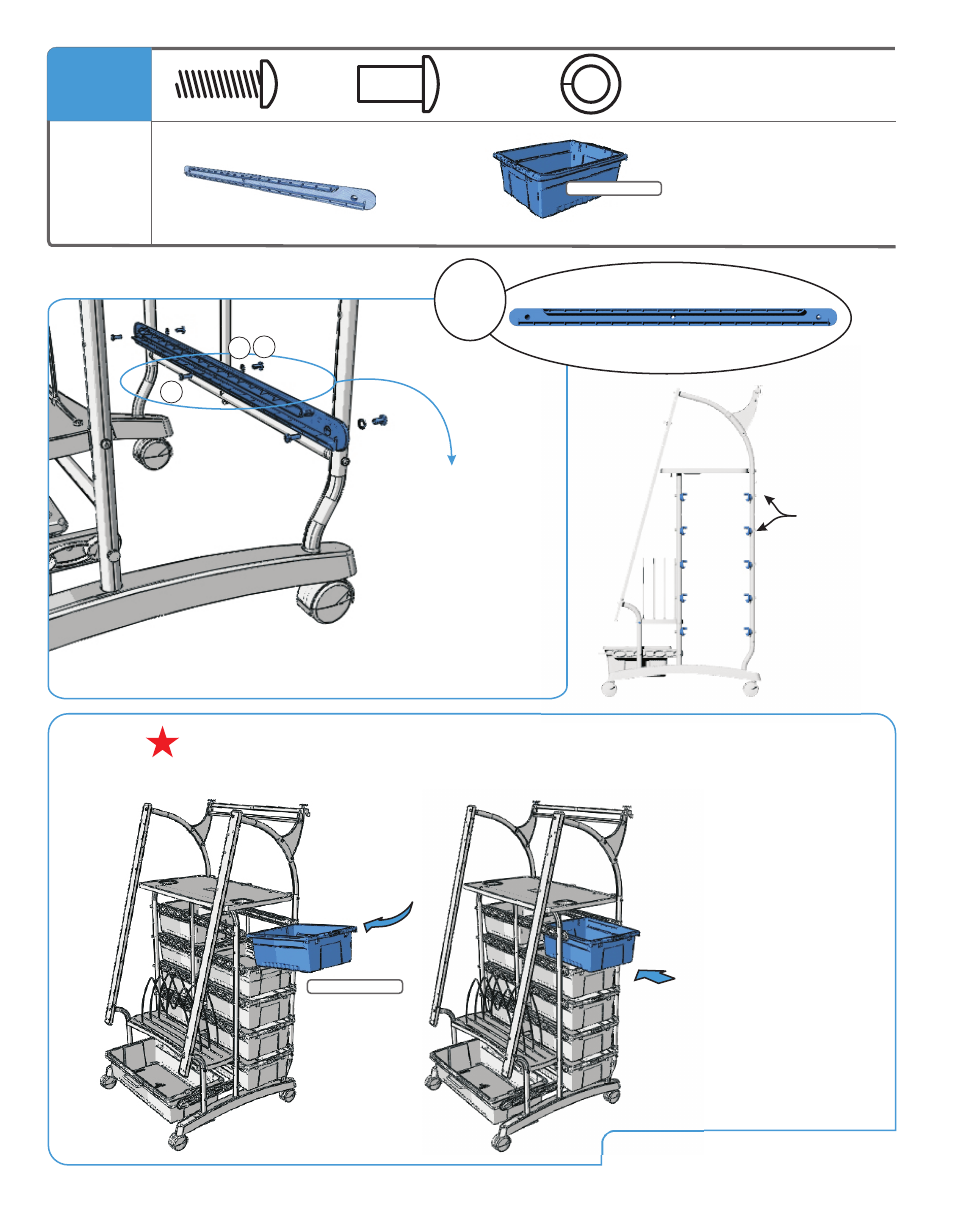

IS600 or IS700: Install Tub Channels
Tub Channel x 6 Open Tub x 10
You will need:
(Not to Scale)
x 18 x 18 x 18
C D F
Actual Size:
Fasten middle bolt first
HAND TIGHTEN ONLY
this will make the
other two bolts easier
to install.
!
Top
Bottom
!
F
C
D
Angle tub into
the Channel
Slide
Install all pairs of
Channel spaced
out evenly
Before installing tubs, tighten all fasteners firmly
Here use 1st
and 3rd set
of holes
Proceed to Step 15...
10 lbs Weight Limit
10 lbs Weight Limit
18
