10

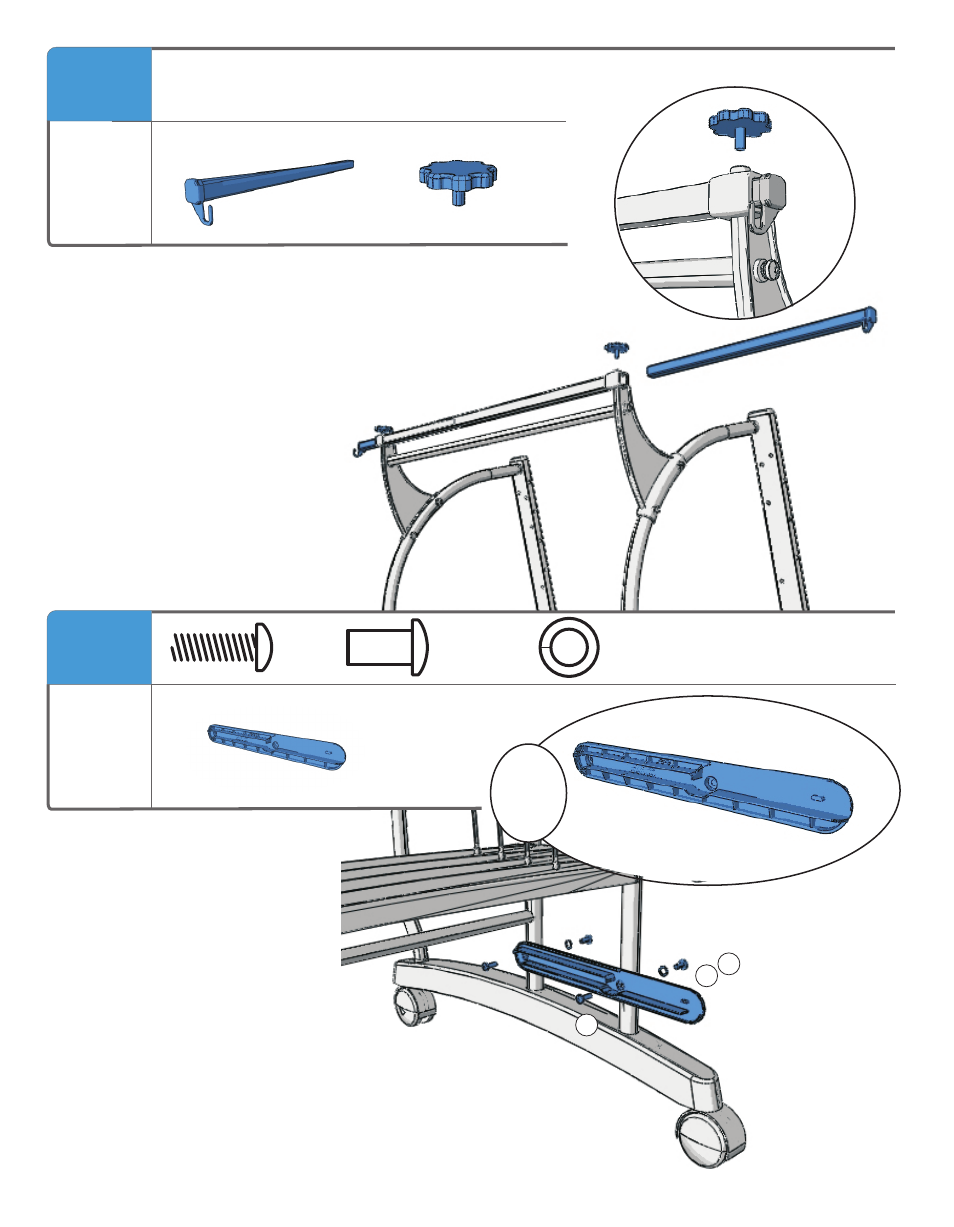

Install Telescoping Rods
?
Slide Telescoping Rods into the left
and right side of the Square
Accessory Rod.
?
Insert Knobs into place on the
Accessory Rod. Loosening these will
allow for the rods to slide in or out,
while tightening them will hold the
rods at the desired location.
?
Ensure that the correct hook is on
the left and right side. Hooks should
face towards the back of the unit.
!
Telescoping Rod x 2
1 Left 1 Right
Knob x 2
You will need:
(Not to Scale)
11
Install Front Channels
Front Channel x 2
1 Left, 1 Right
You will need:
(Not to Scale)
x 4 x 4 x 4
C D F
Actual Size:
Identify the right and left Front
Channels
It may help to loosely install first,
and tighten once both bolts are
through the part. !
!
Right Side
Top
Bottom
F
C
D
