Routing Cables
You will need:
(Not to Scale)
Plug VGA Cable & Power Projector
Cord to the Projector - VGA cord
plugs into ‘Computer One’ source.
Split Black
Wrap VGA Cable & Power Projector
Cord with the
Wire Loom
provided.

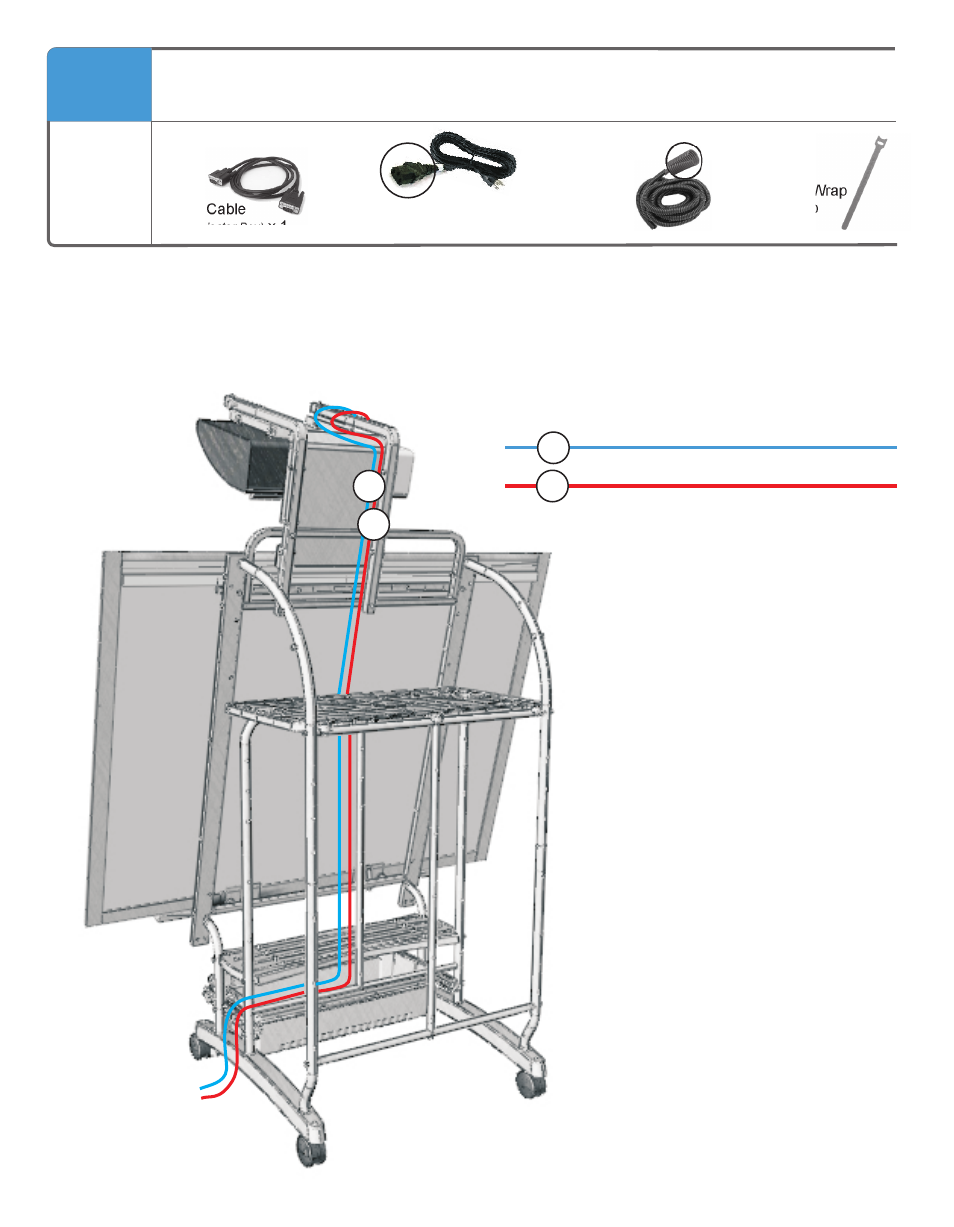

Following the diagram below, route
the cables appropriately. Secure in
multiple locations with Velcro Straps.
To simplify the information, the image shown is the configuration of a Royal
Interactive Teaching Center with SB660 board. Tubs have been removed for clarity.
Route cables the same way if installing SB640 board.
V
V
PP
PP
VGA Cable
Projector Power Cable
(provided with Projector)
(provided with Projector)
!
VGA Cable
x 1
(in Projector Box)
Power Cord
(in Projector Box)
x 1
Split Black
Wire Loom
x 1
Black One-Wrap
Velcro Strap
x 5
