Copernicus IS702 - Manual (Page 14)

IS600-IS700 Series - Version B - December 16, 2013 - Copernicus Educational Products Inc.

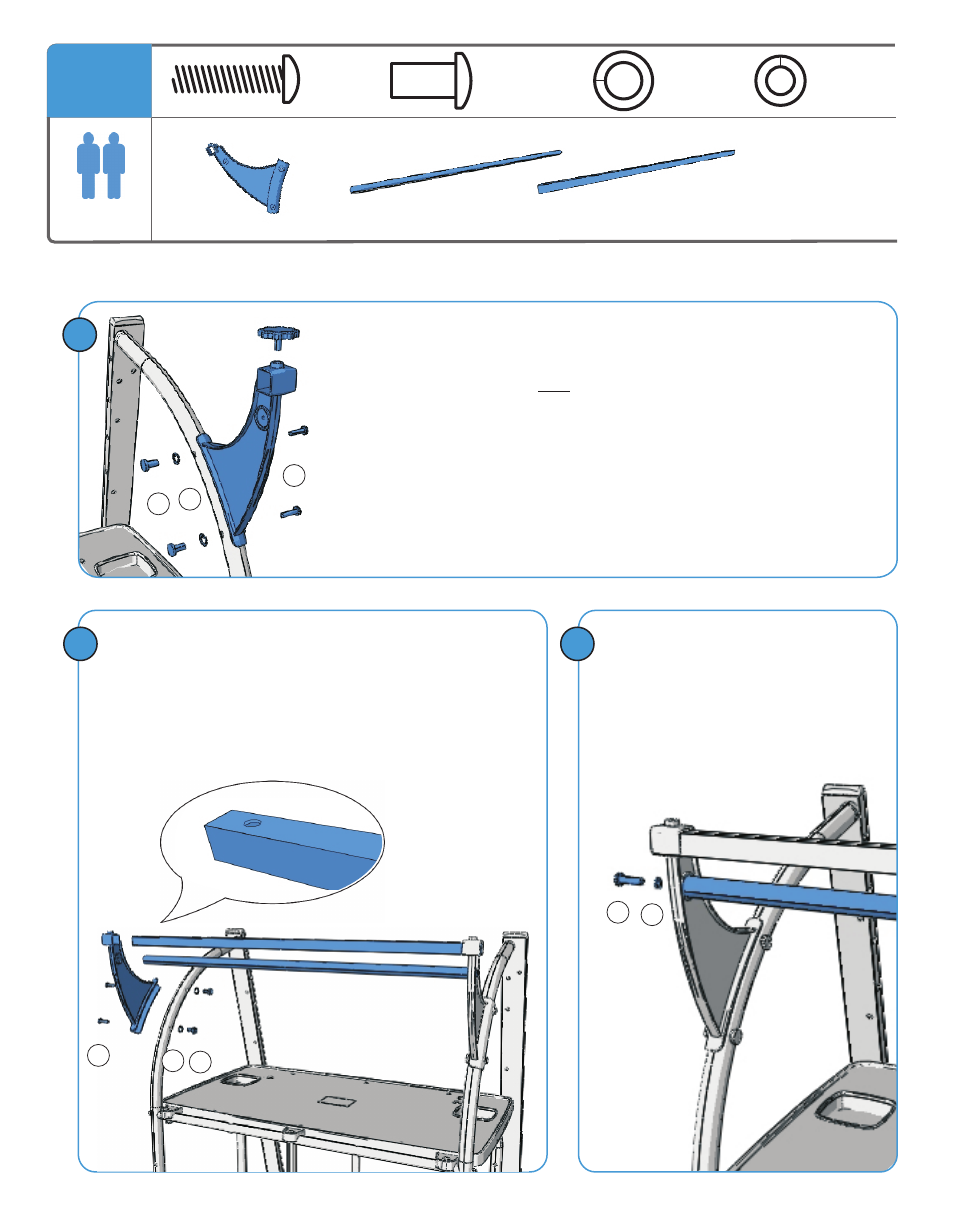

? Slide the Square Accessory Rod and the
Round Accessory Rod into their locations,
ensuring hole on square rod is turned upwards.
? Cap the other end with the second Accessory
Rod Bracket.
? Fasten.
? Unfasten the Knob from the bracket and put
aside.
? Align one Accessory Rod Bracket with the holes
in the Upper Rear Frame.
? Fasten.
? Fasten the ends of the Round
Accessory Rod to the Accessory
Brackets.
? Fasten.
9
Install Accessory Rods
Accessory
Rod Brackets & Knobs x 2
Round Accessory Rod
x 1 Square Accessory Rod
x 1
You will need:
(Not to Scale)
x 6 x 4 x 4
B F D
Actual Size:
!
Ensure hole is
turned upwards
! Remove
Knob first
F
F
D
D
B
B
B E
2 Person Task
1
2
x 2
E
3
14
