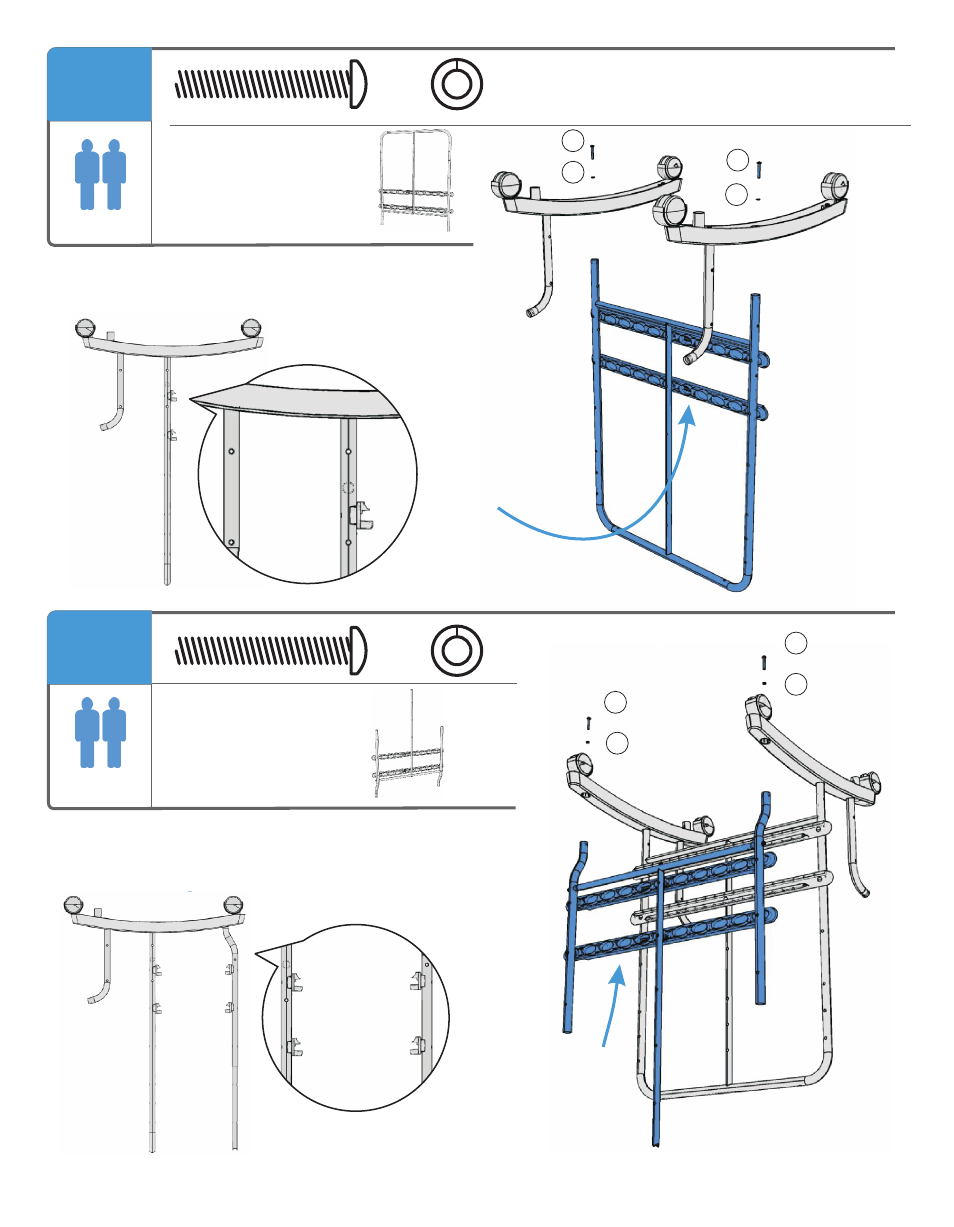

Install Middle Frame Assembly
Stand unit right side up after fastening.
Middle Frame
Assembly
x 1
You will need:
(Not to Scale)
x 2 x 2
Actual Size:
A E
E
E
A
A
2 Person Task
Front
of unit
Back
of unit
You will need:
(Not to Scale)
Actual Size:
4
x 2 x 2
A E
Rear Frame
Assembly
x 1 E
A
E
A
Install Rear Frame Assembly
2 Person Task
Back
of unit
Front
of unit
! Note the position of
the Tub Channels.
Must face the back
of unit.
! Note the position of
the Tub Channels.
Must face the front
of unit.
Front
of unit
Front
of unit
