Page 8
Epson_CART - Version 2012_A - May 8 2012 - Copernicus Educational Products Inc.
M6 x 90mm bolt
2x

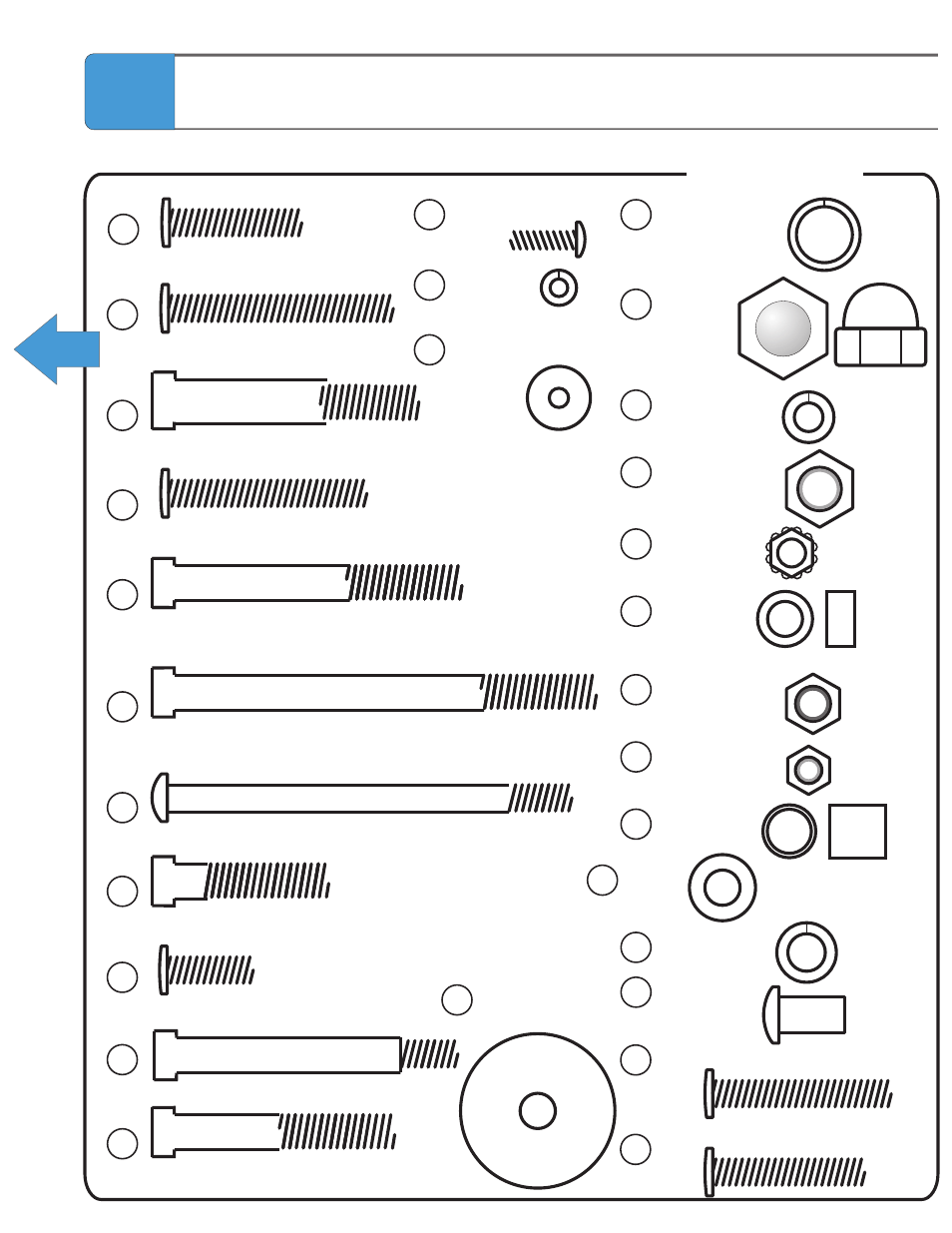

Before beginning, you should have:
In Box 1
Hardware - Box 1
front
side
M6 x 30mm bolt
1x
A
M6 x 50mm bolt
11x
B
Partially threaded M10 x 55mm bolt
2x
C
Partially threaded M8 x 65mm bolt
1x
E
Partially threaded M8 x 95mm bolt
1x
F
G
Partially threaded M8 x 35mm bolt
8x
H
M6 x 19mm Bolt
10x
I
M13 lock washer
4x
L
M13 acorn
nut 4x
M
M8 lock nut
with plastic insert
18x
R
M6 lock washer
12x
N
M10 lock nut
with plastic insert
4x
O
M6 keps nut
3x
P
M6 barrel nut
12x
W
M8 lock washer
12x
V
Small spacer
1x
Q
M8 flat
washer
16x
U
M6 lock nut
with plastic insert
3x
S
front
side
Large spacer
4x
T
M6 x 45mm bolt
1x
D
M8 x 50mm Shoulder Bolt
1x
used only in special instances
J
Partially threaded M8 x 50mm bolt
4x
K
M8 extra large
flat washer
4x
Y
M6 x 40mm bolt
2x
X
BB
M6 x 35mm bolt
2x
Epson Mobile Cart - Base Frame
Epson
CART
M4 x 16mm bolt
6x
DD
EE
M4 lock
washer 6x
FF
9/16” x 11/64” flat
washer 6x
