Copernicus IR400 - Manual (Page 15)

Epson_CART - Version 2012_A - May 8 2012 - Copernicus Educational Products Inc.
You will need:
(not to scale)
6

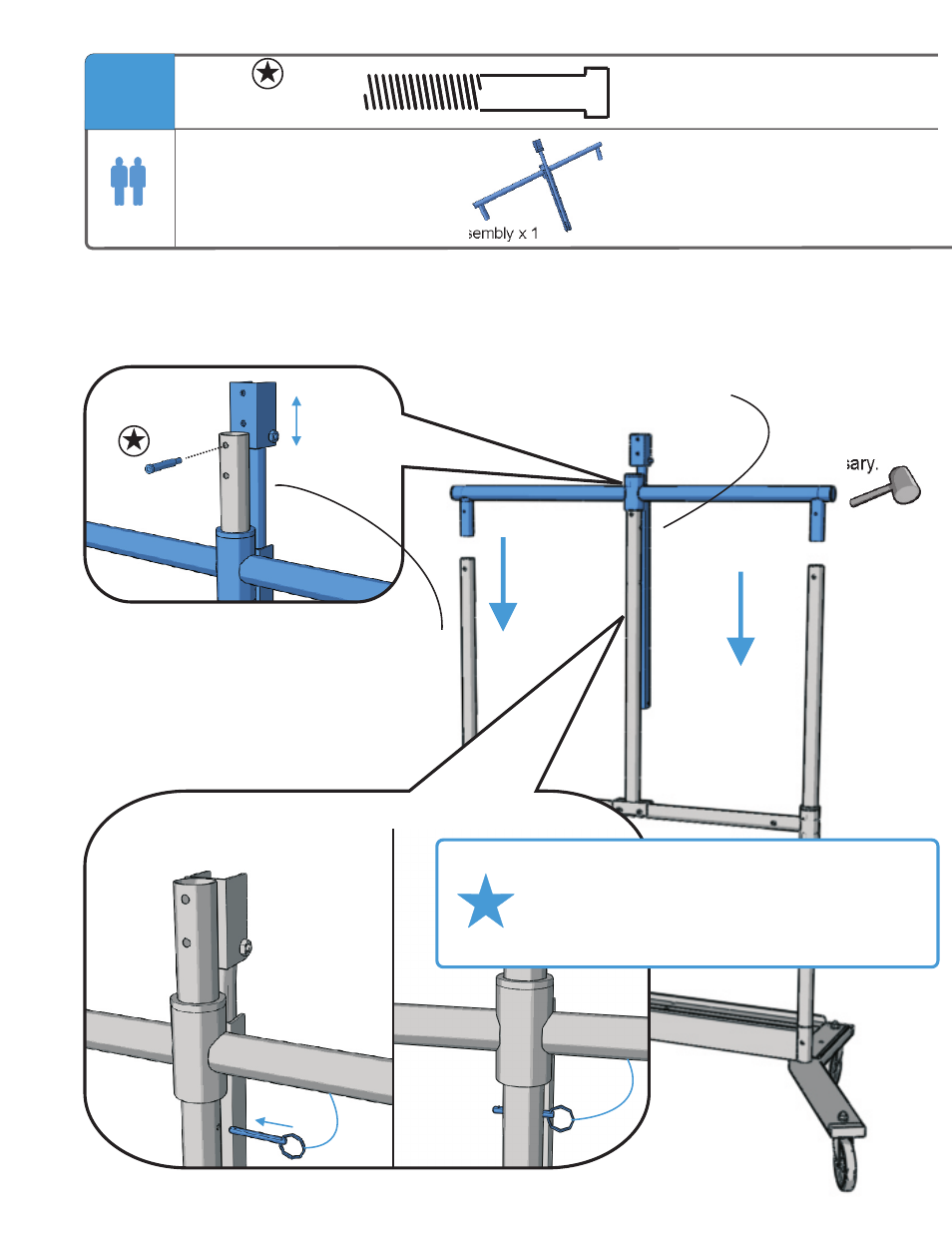

Install Upper Frame
Upper frame pre-assembly x 1
Use a spare bolt or Velcro® Strap (included)
to secure the upper frame to the
center slide pole until the top
is fastened.
Insert upper frame into the legs, ensuring that the center
slides over the center slide pole.
2-Person Task
Pull frame up
to align holes
Insert detent pin (attached to upper frame)
in hole.
Tap in with rubber
mallet
if necessary.
Bolt from Extra
hardware bag 1x
Please Note:
Sliding parts are lubricated with a Petroleum
based jelly to ensure smooth movement when
adjusting the height.
