Chapter 2 Setting Up Coolscan
SCSI Termination

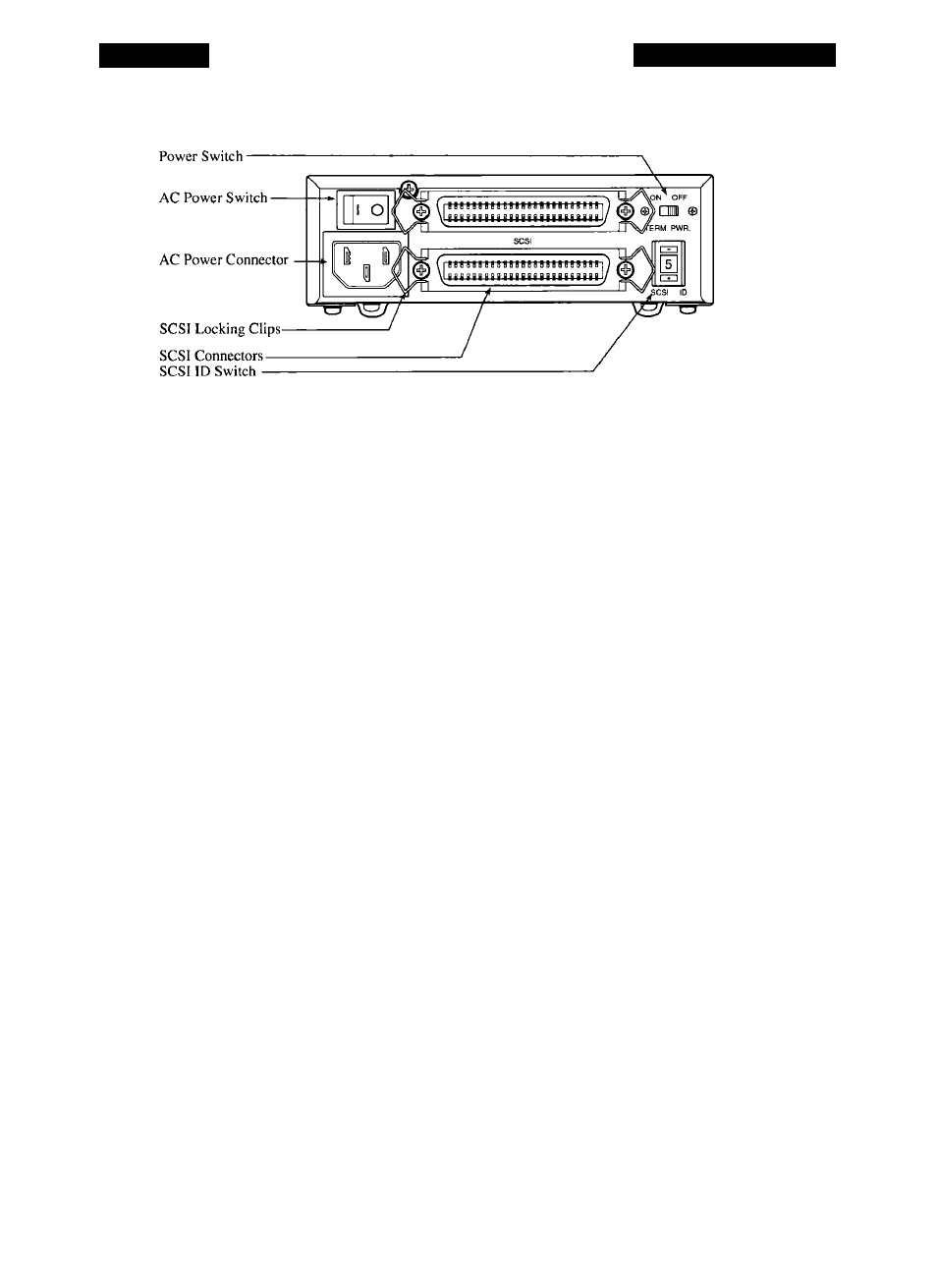

Figure 2.2 Coolscan’s rear panel - LS-IOE.
The
AC power switch
and
AC power connector
should be familiar to you. The AC
power switch is used to turn powet to the scanner on and off. The AC power connector
receives the female end of the AC power cord.
The three SCSI-related items on the rear panel will be explained in detail in the
next chapter, “The SCSI Interface.”
Please proceed to the section “Orientation and Placement of the LS-IOE.”
The Rear Panel - LS-10
The rear panel of the LS-10 is shown in Figure 2.3. Note that there are three
items of interest on the rear panel. These are the
DC power connector^ SCSI connector,
and
configuration DIP switch.
SCSI Pin 1----------------
SCSI Connector---------
Configuration ------------
DIP Switch
10-Pin Connector —
DC Power Connector
i I q q .
Figure 2.3 Coolscan’s rear panel - LS-10.
The
configuration DIP switch
is shown in Figure 2.3. In almost all cases, the fac­
tory default settings of these switches will be proper for your installation. The default
settings for the configuration DIP switch block are shown in Table 2.1.
The significance of the SCSI connector, DC power connector, and the configura­
Nikon Coolscan Installation Guide for Macintosh Page 9
