322
Ports

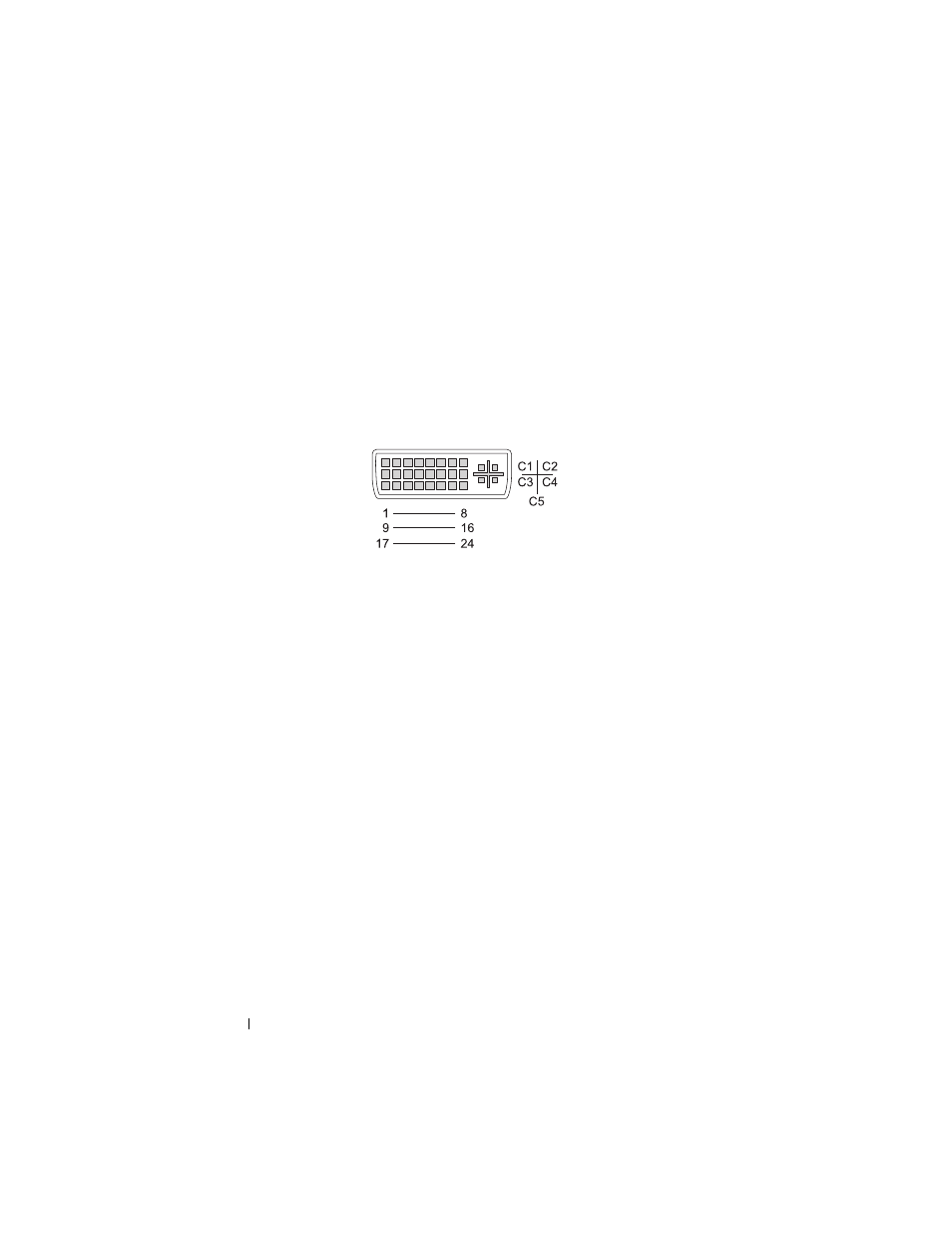

DVI-I Port
DVI-I (Digital Video Interface-Integrated) port supports both analog signals
and digital signals in a single cable. The cable can transmit either a digital-to-
digital signal or an analog-to-analog one, but it will not transmit crossovers of
either one (digital-to-analog or analog-to-digital). If you have a DVI-I port on
your video card, you can connect most DVI-D (Digital Video Interface-
Digital) or DVI-A (Digital Video Interface-Analogue) devices without the
need for a separate adapter.
Pin Signal Pin Signal
1 TMDS DATA2– 13 TMDS DATA3+
2 TMDS DATA2+ 14 +5V
3 TMDS DATA2/4 SHLD 15 GND (FOR +5V)
4 TMDS DATA4– 16 HOT PLUG DETECT
5 TMDS DATA4+ 17 TMDS DATA0–
6 DDC CLK 18 TMDS DATA0+
7 DDC DATA 19 TMDS DATA0/5 SHLD
8 ANALOG VERT SYNC 20 TMDS DATA5–
9 TMDS DATA1– 21 TMDS DATA5+
10 TMDS DATA1+ 22 TMDS CLK SHLD
11 TMDS DATA1/3 SHLD 23 TMDS CLK+
12 TMDS DATA3– 24 TMDS CLK–
