Installing System Components

93

3 Position the module so the tabs on the underside of the tray fit into the

hooks on the chassis, then lower the opposite edge of the card into place.

See Figure 3-8.

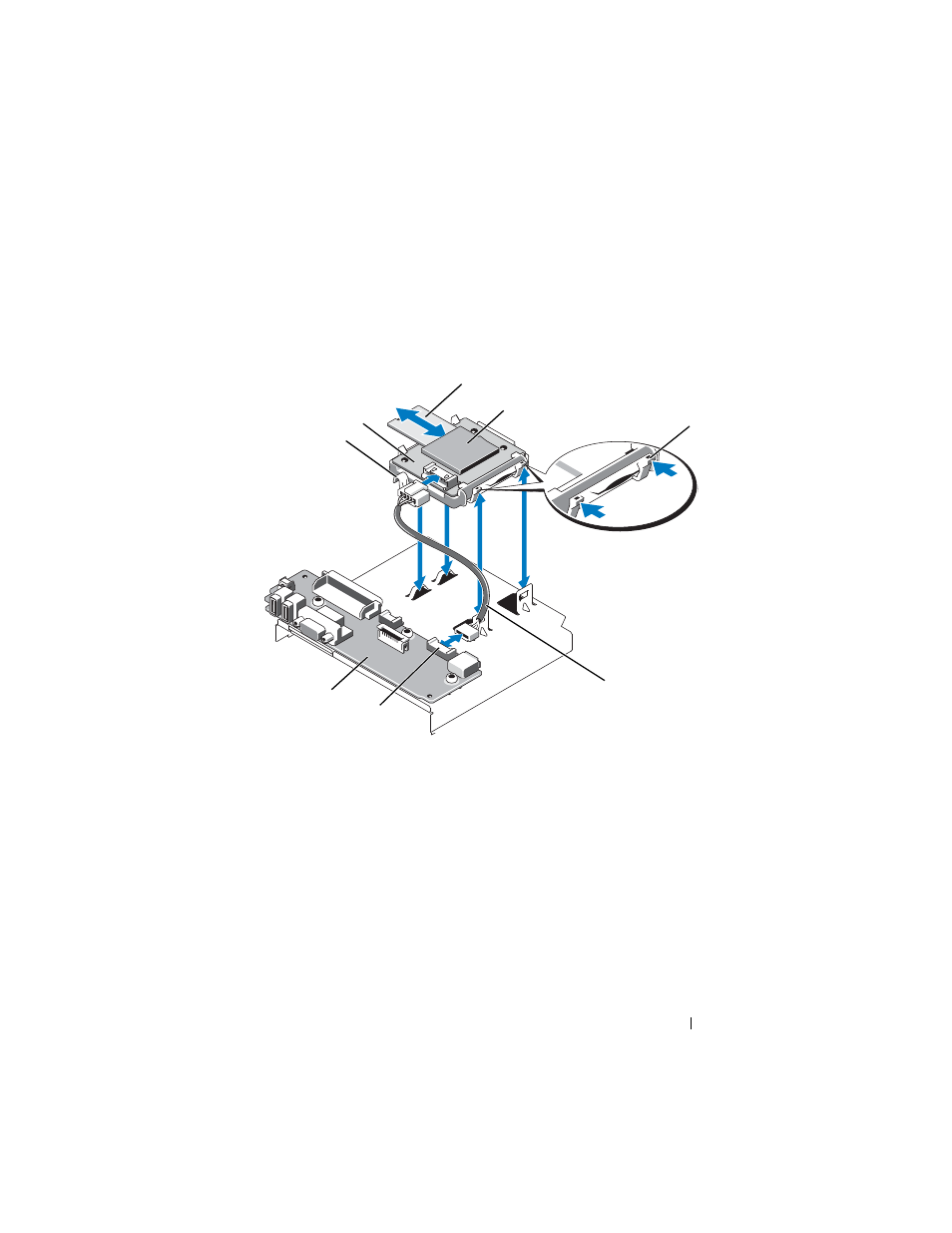

Figure 3-8. Removing or Installing the Internal SD Module

4 Connect the internal SD module cable to the connector on the control

panel board. See Figure 3-8.

5 Close the system. See "Closing the System" on page 83.
6 Reconnect the system and peripherals to their power sources, and turn

them on.

1

latch

2

internal SD module

3

SD flash card

4

SD card slot (SD connector)

5

release tab

6

internal SD module cable

7

internal SD module connector

8

control panel board

5

2

4

8

3

6

1

7
