128 Installing System Components

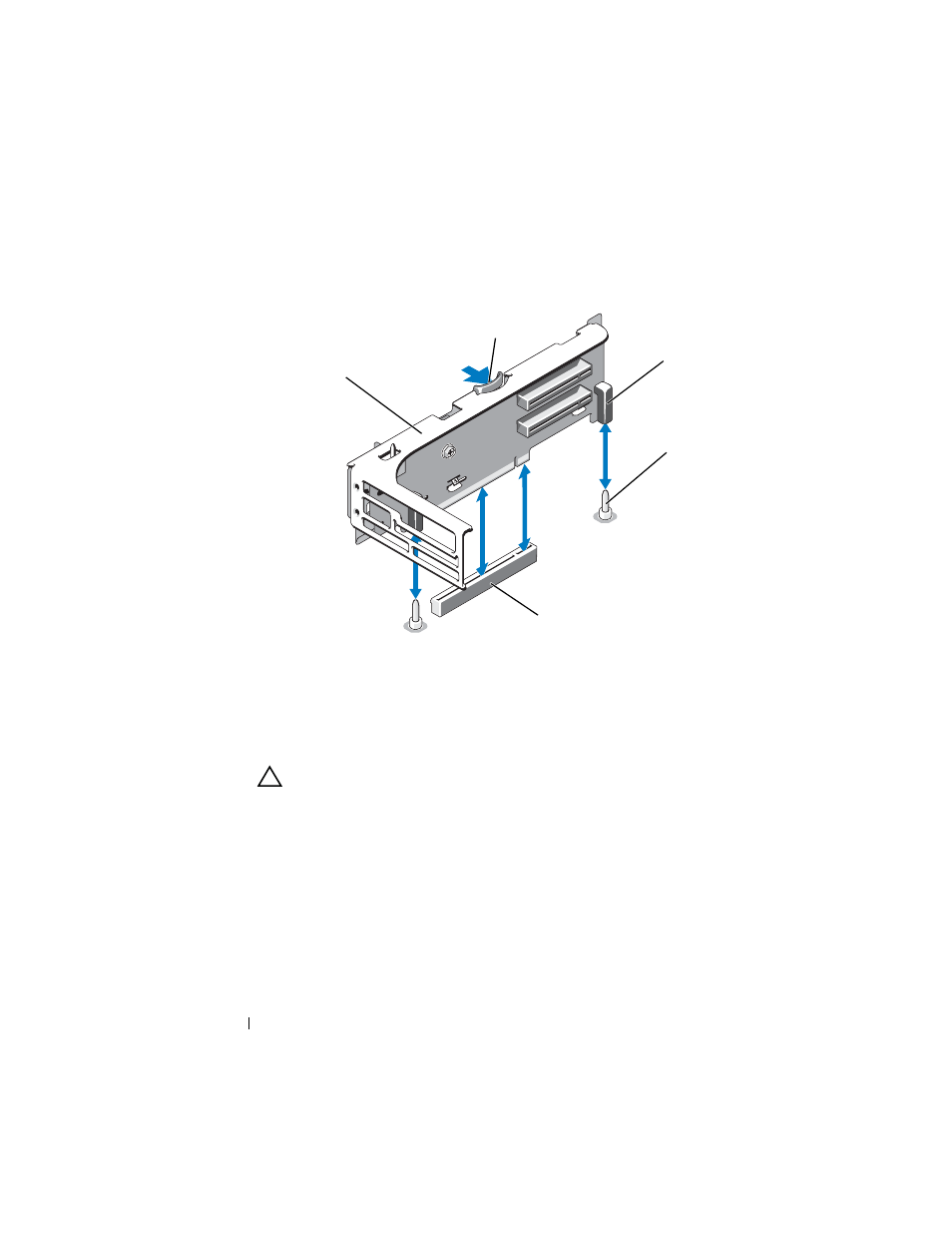

Figure 3-23. Removing and Replacing Expansion-Card Riser 2
Removing Expansion-Card Riser 2 From the Expansion-Card Bracket
CAUTION: Many repairs may only be done by a certified service technician.
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came
with the product.
1 Turn off the system and attached peripherals, and disconnect the system
from the electrical outlet.
2 Open the system. See "Opening the System" on page 83.
3 Remove any expansion cards from the expansion-card riser 2. See
"Removing an Expansion Card" on page 123.
1 expansion-card riser 2 2 release latch
3 pin collars (2) 4 mounting pins (2)
5 riser 2 connector on system board
1
3
2
4
5
