Installing System Components
3 Remove the top cooling shroud. See "Removing the Cooling Shrouds" on page 49.
4 Locate the VRM sockets. See Figure 6-2.
5 Press down and out on the ejectors on each end of the socket and lift the VRM out of the socket. See
Figure 3-13.
Installing a Diskette Drive
1 Turn off the system, including any attached peripherals, and disconnect the system from the electrical
outlet.
2 Remove the front bezel, if attached. See"Removing and Replacing the Optional Front Bezel" on
page 45.
3 To remove the drive carrier, pull the release latch forward, then slide the carrier out of the chassis. See
Figure 3-14.

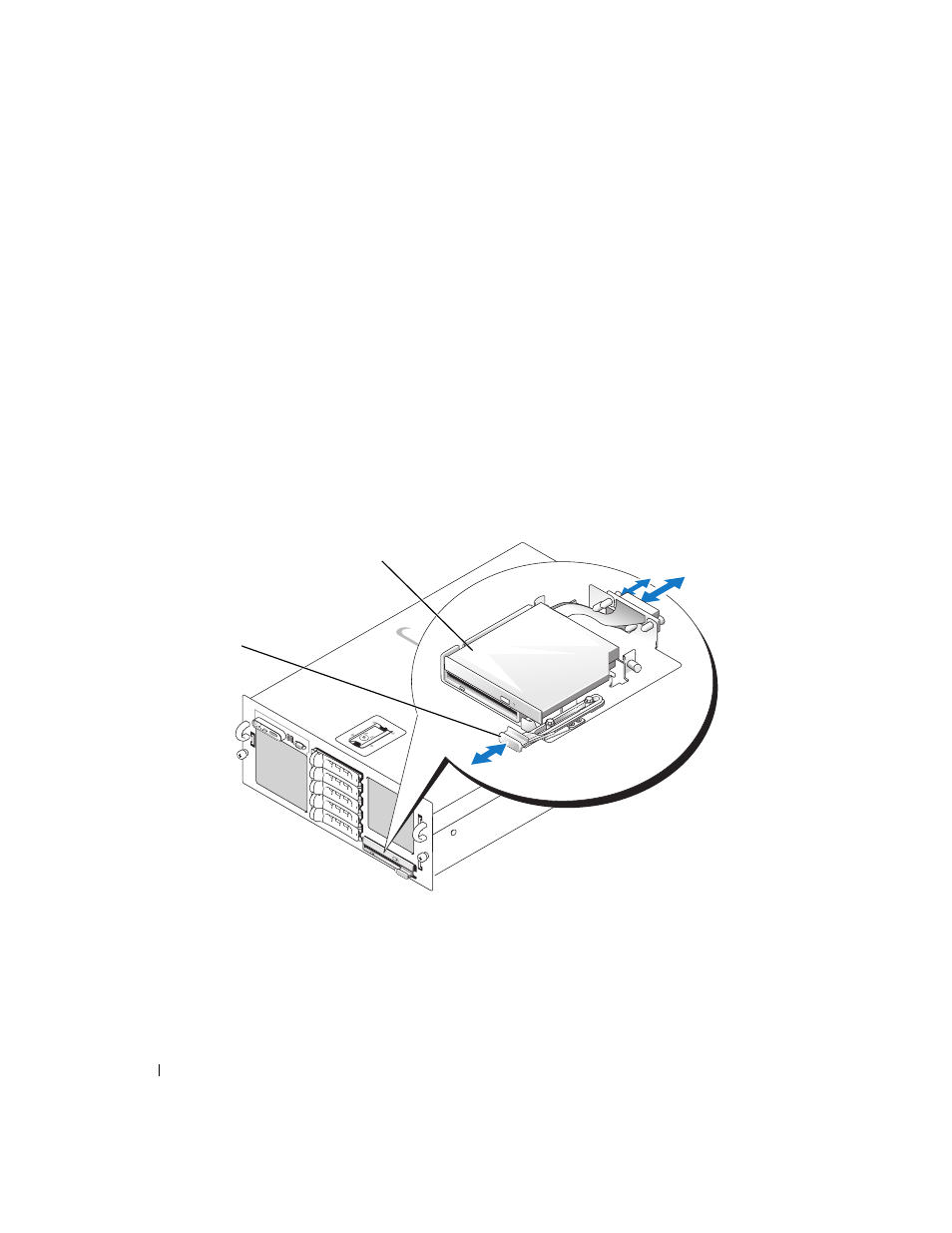

Figure 3-14. Removing and Installing the Diskette/Optical Drive Carrier
4 Remove the optical drive or optical drive filler plate from the carrier:
a Loosen the thumbscrew on the latch securing the optical drive or filler plate. See Figure 3-15.
b Remove the latch.
c Lift the optical drive or optical drive filler plate from the carrier.
1 release latch 2 diskette/optical drive carrier
2
1
