Installing System Components
71

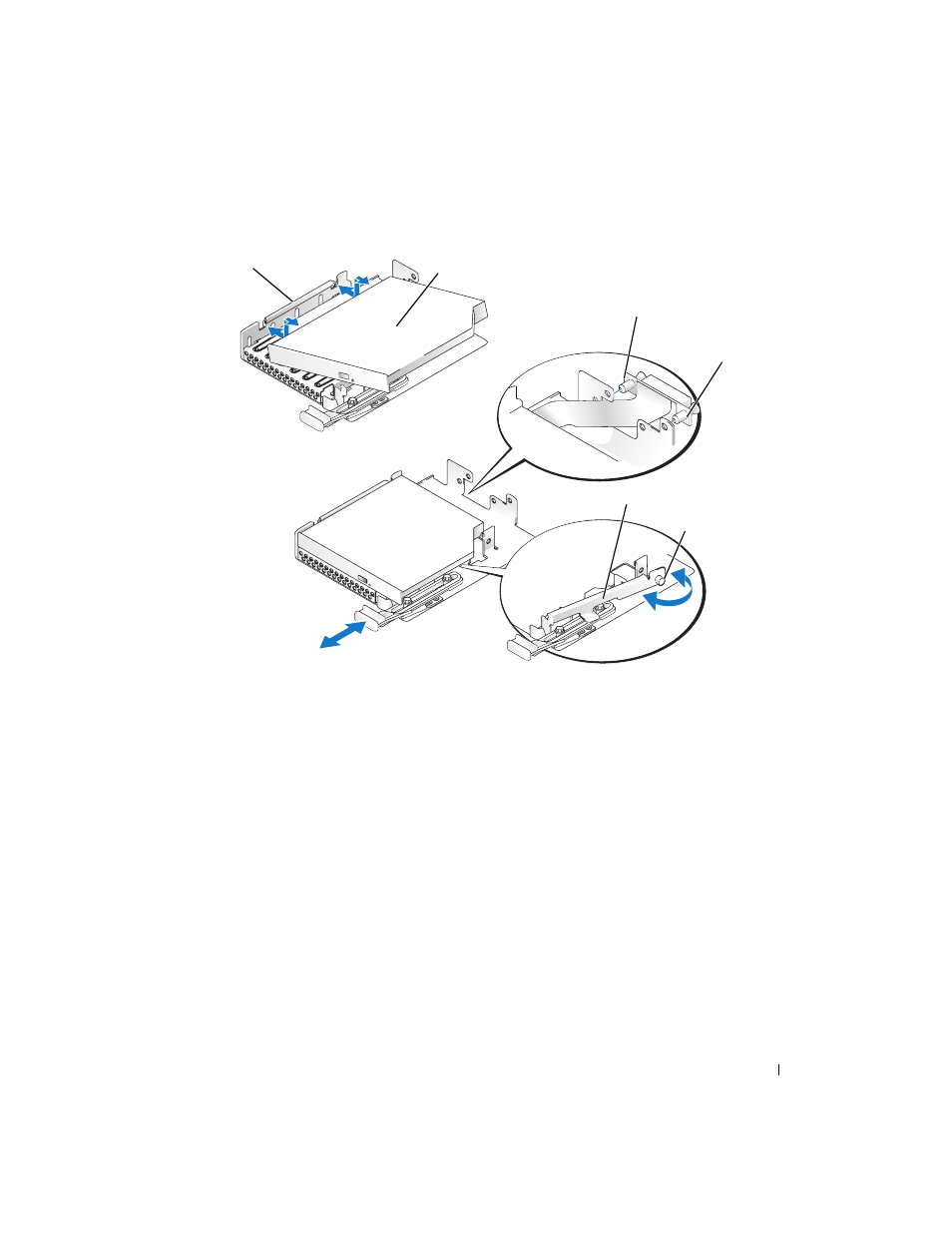

Figure 3-16. Installing an Optical Drive in the Drive Carrier
5 Install the new optical drive in the carrier. See Figure 3-16.
The pins on the carrier fit into the corresponding holes in the side of the drive.
6 Attach the interface board to the back of the carrier, using the two plastic rivets. See Figure 3-16.
7 Reinstall the latch and tighten the thumbscrew.
8 Slide in the drive carrier until the tray snaps into place. See Figure 3-14
9 Replace the front bezel, if applicable. See "Removing and Replacing the Optional Front Bezel" on
page 45.
10 Reconnect the system and peripherals to their electrical outlets.
1 diskette/optical drive carrier 2 optical drive 3 interface board
4 plastic rivets (2) 5 latch 6 thumbscrew
