Power Indicator Codes
The power button on the front panel controls the power input to the system's power supplies. The power
indicator can provide information on power status (see Figure 1-1). Table 1-4 lists the power button
indicator codes.
The indicators on the power supplies show whether power is present or whether a power fault has
occurred (see Figure 1-4).

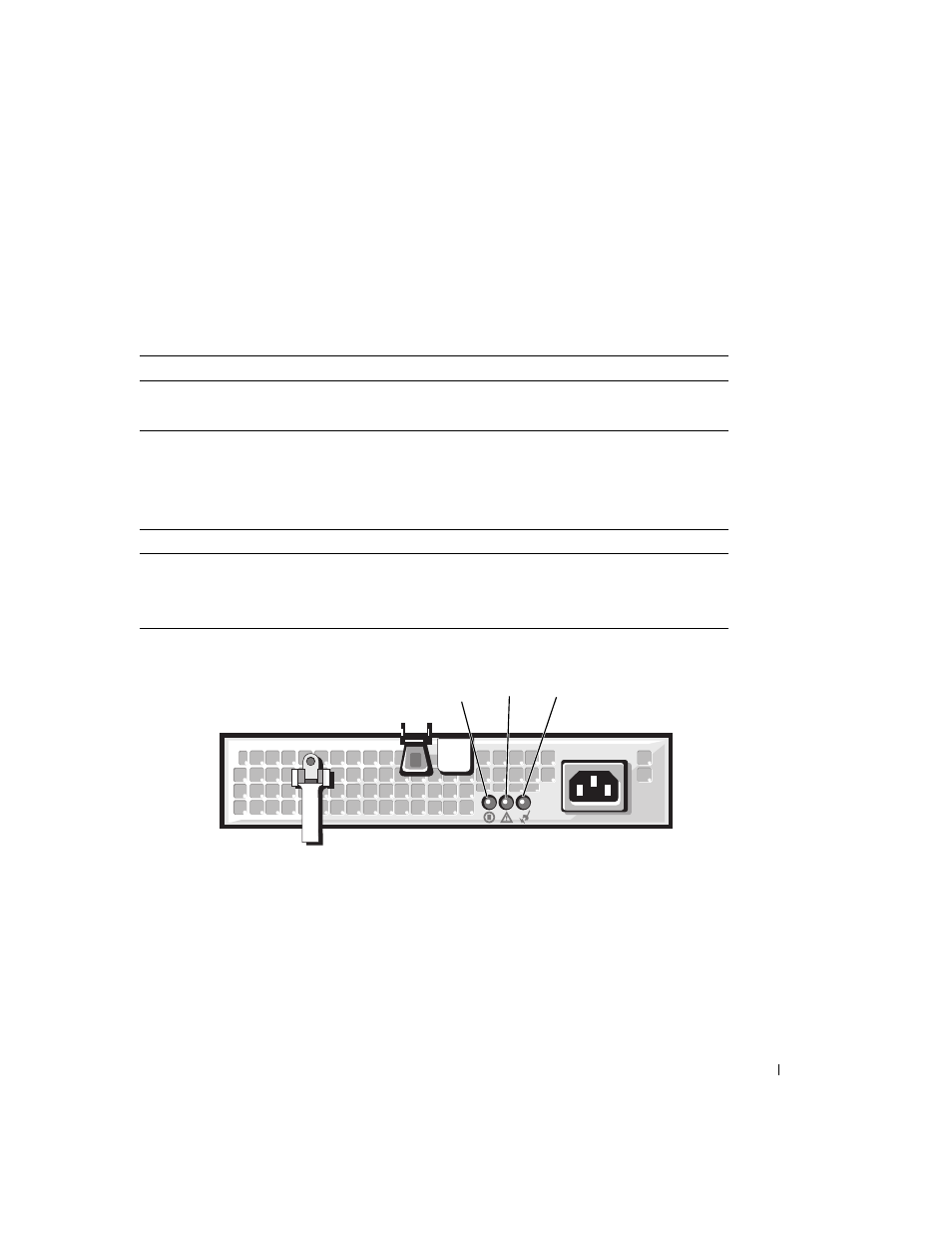

Figure 1-4. Power Supply Indicators
Table 1-4. Power Button Indicators
Indicator Function
On Indicates that power is supplied to the system and the system is operational.
Off Indicates that no power is supplied to the system.
Table 1-5. Power Supply Indicators
Indicator Function
Power supply status Green indicates that the power supply is operational.
Power supply fault Amber indicates a problem with the power supply.
AC line status Green indicates that a valid AC source is connected to the power supply.
1 power supply status indicator 2 power supply fault indicator 3 AC line status indicator
3 2
1
