240

|

Jumpers and Connectors


NOTE: Pin 9 and pin 10 of FCB firmware recovery and PS-ON connector are used
for firmware recovery, and pin 1-8 are used for debug when pin 9 and pin 10 are
shorted by jumper.

Power Distribution Board Connectors

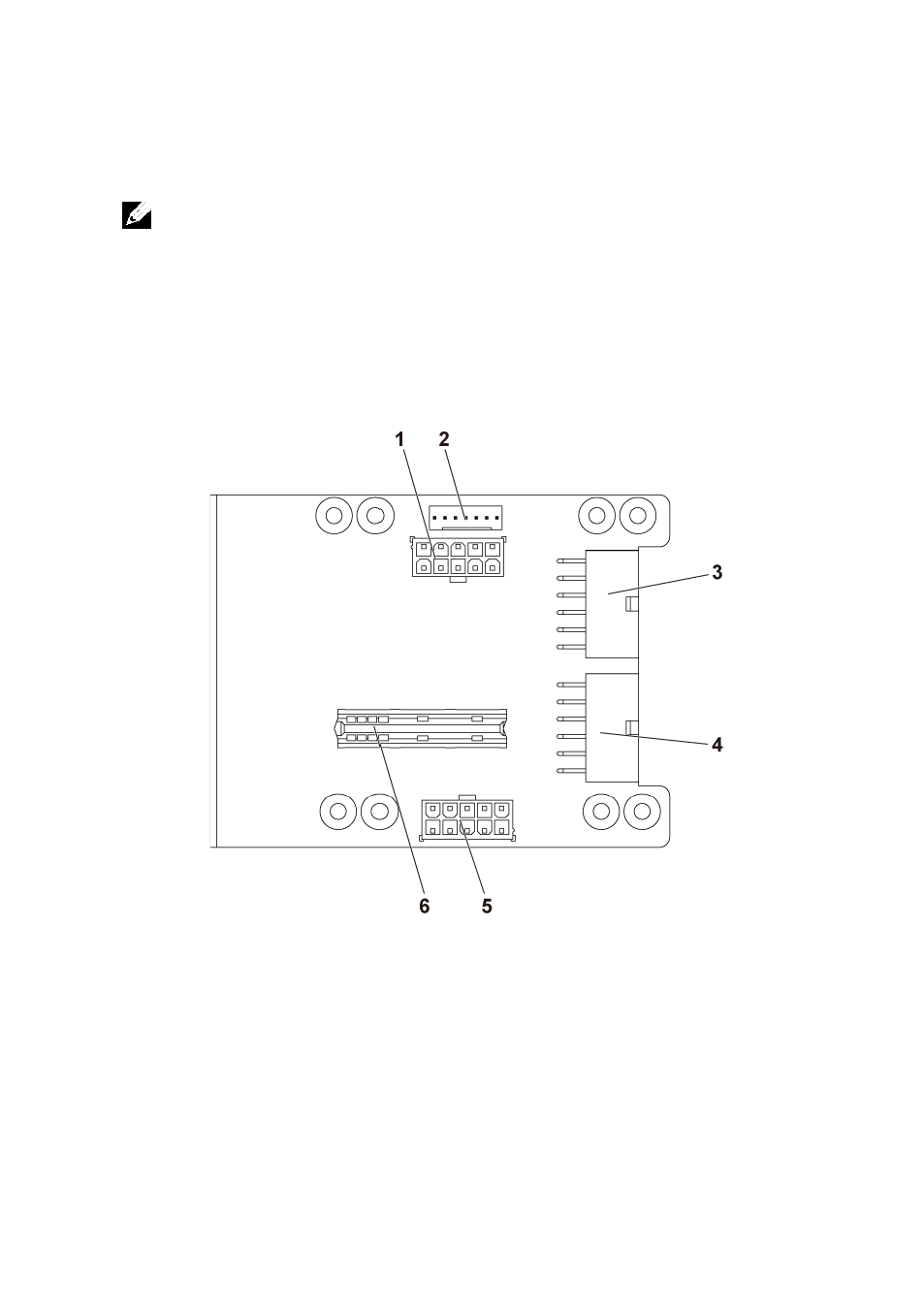

Figure 5-14. Power Distribution Board Connectors

1

hard-drive backplane power
connector

2

PMbus connector

3

main power connector 1

4

main power connector 2

5

system fan board power connector

6

bridge card connector
