Jumpers and Connectors | 229
Jumpers and Connectors
System Board Connectors
This section provides specific information about the system jumpers. It also
provides some basic information on jumpers and switches and describes the
connectors on the various boards in the system.

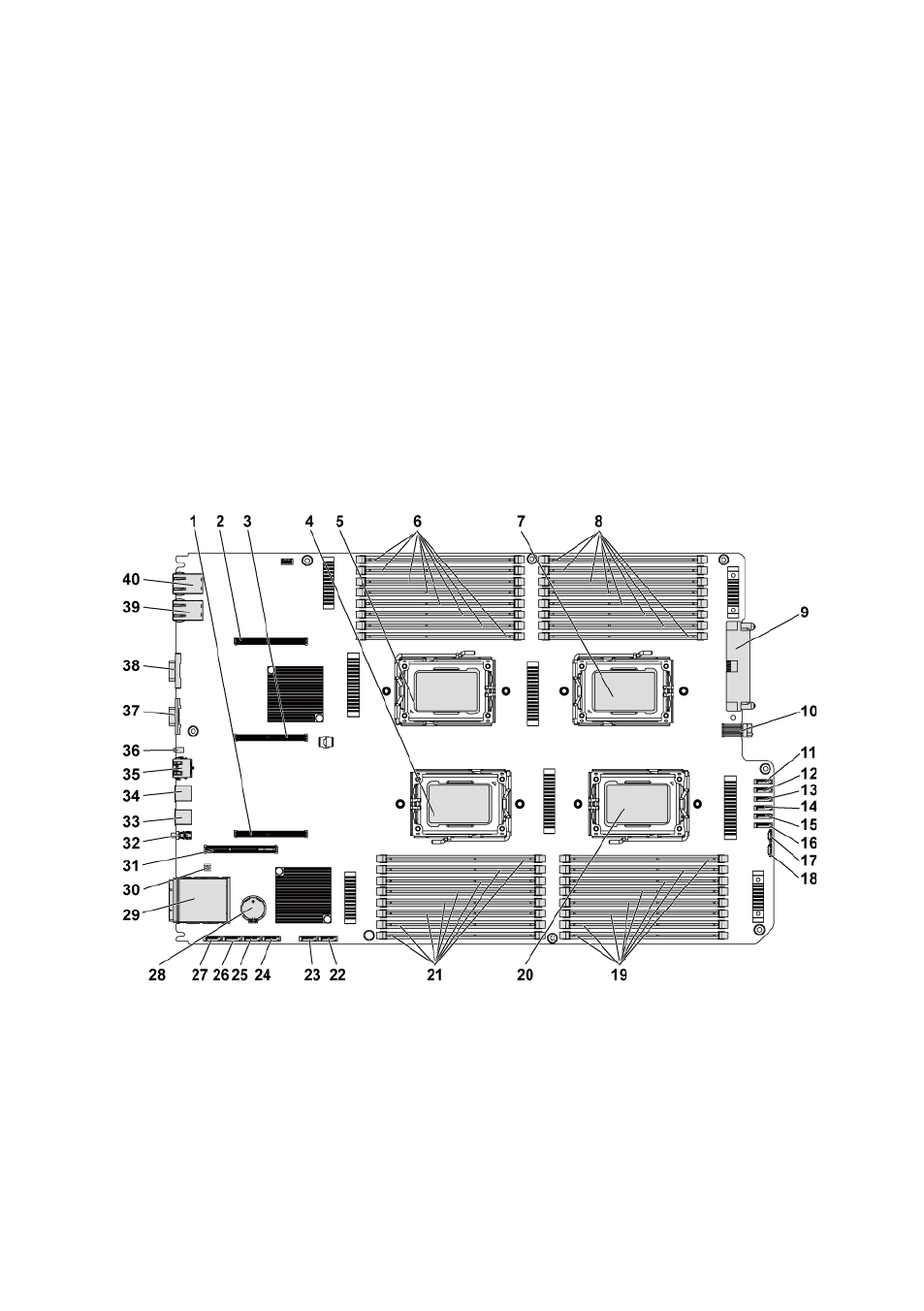

Figure 5-1. System Board Connectors
