Jumpers and Connectors | 231


Backplane Connectors

3.5" Hard-Drive Backplane With CPLD

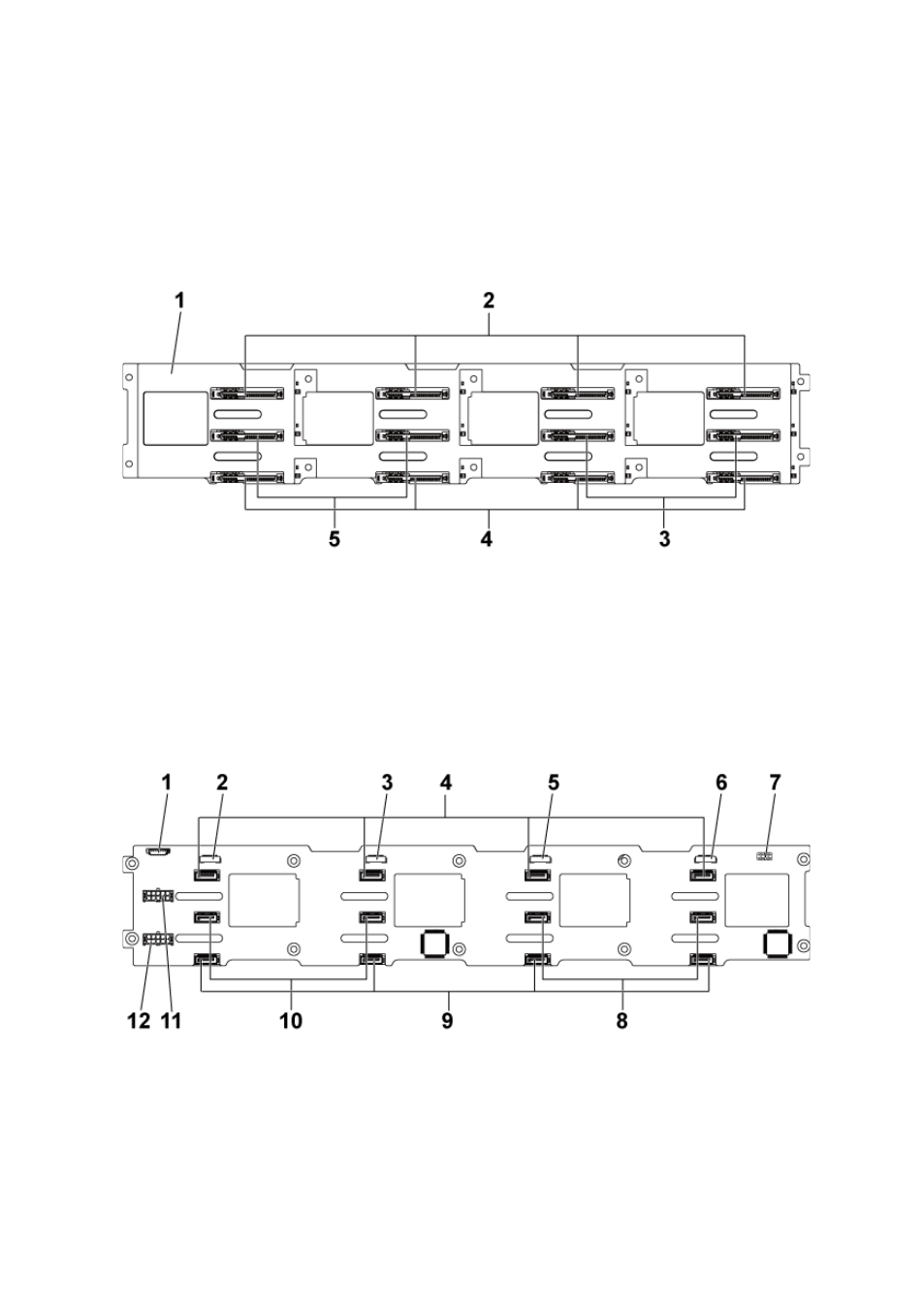

Figure 5-2. Front View of the Backplane

1 3.5” backplane with CPLD

2 SATAII and SAS connectors 1-4 (from

left to right) for system board 1

3 SATAII and SAS connectors 6-5

(from left to right) for system board 2

4 SATAII and SAS connectors 1-4 (from

left to right) for system board 2

5 SATAII and SAS connectors 5-6 (from

left to right) for system board 1

Figure 5-3. Back View of the Backplane

1

fan controller board connector

2

SGPIO connector 4

3

SGPIO connector 3

4

SATAII hard-drive connectors 1-4

for system board 1 (from right to left)
