Installing System Components

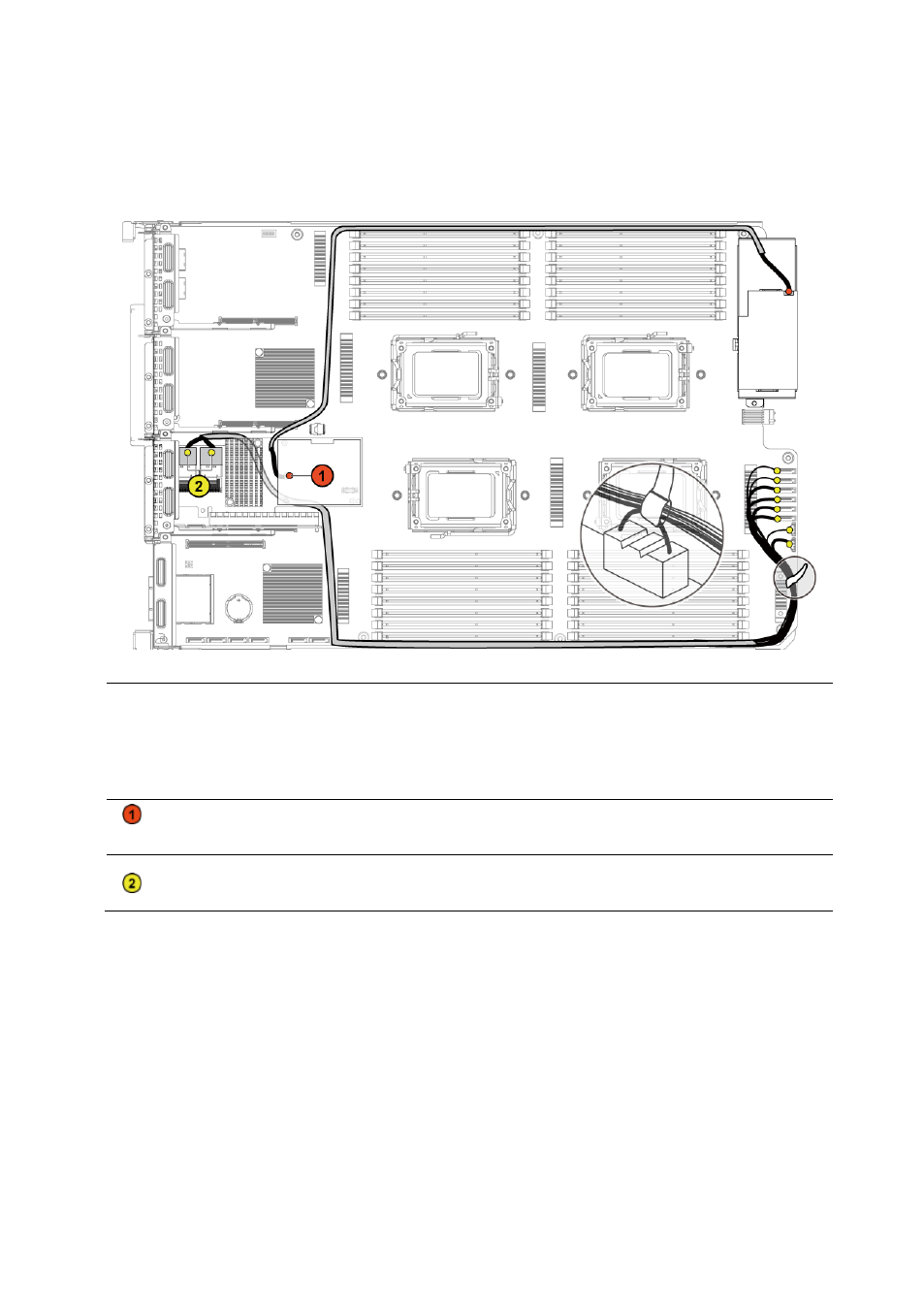

Figure 3-14. Cable Routing for LSI 9260-8i Card
Item
Cable
From
(LSI 9260-8i Card)
To
(RAID Battery and HDD
to Backplane SATAII
Connectors)
RAID battery
cable
RAID battery connector
(J4)
RAID battery
connector
SAS/SGPIO
cable
Mini-SAS connector A &
Mini-SAS connector B
SATAII connectors
0~5 and SGPIO A&B
