136

|

Installing System Components

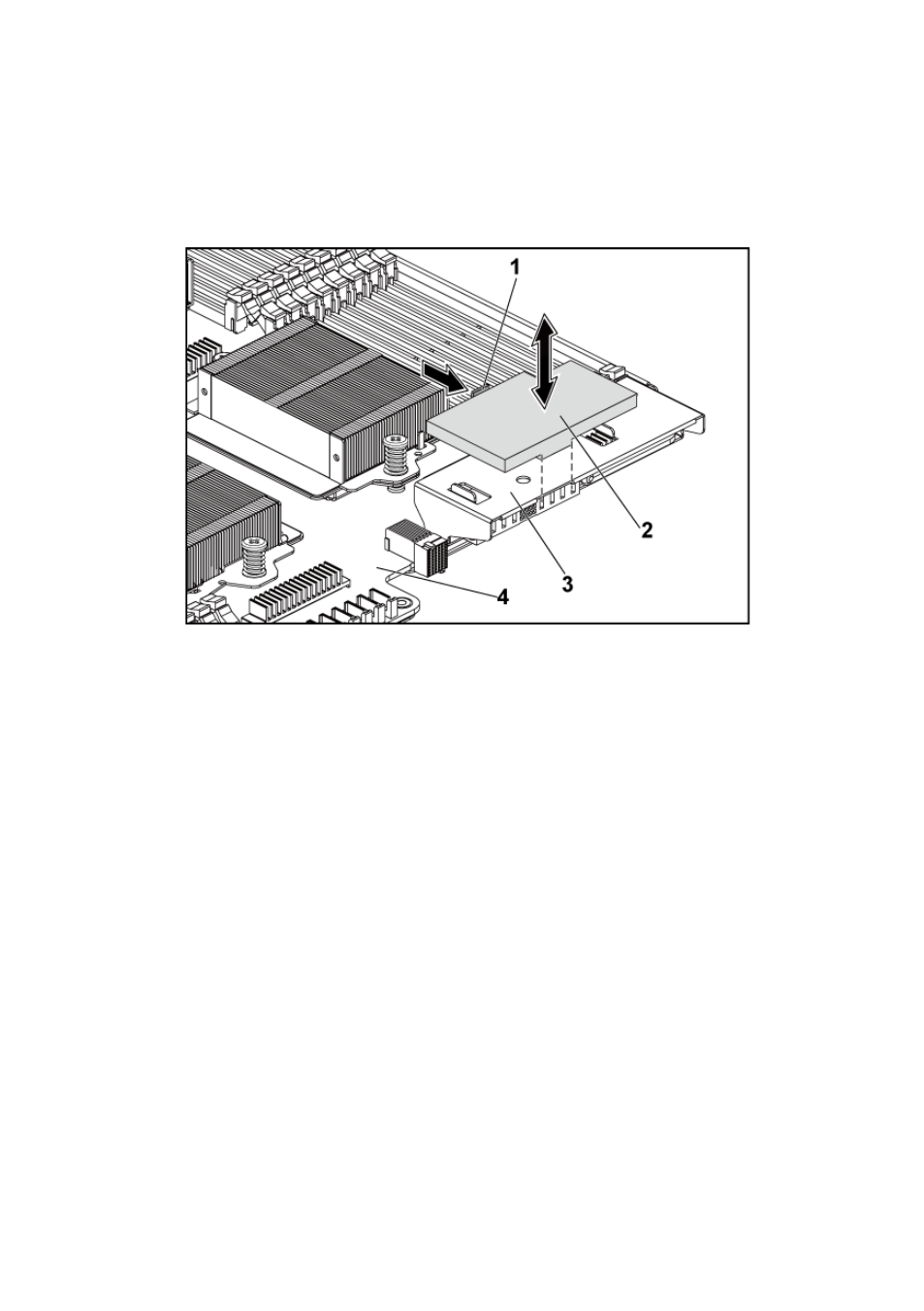

Figure 3-15. Removing and Installing the LSI 9260-8i RAID Battery

1

RAID battery latch

2

LSI 9260-8i RAID battery

3

LSI 9260-8i RAID battery carrier

4

system-board assembly

Installing the LSI 9260-8i RAID Battery

1 Insert the LSI 9260-8i RAID battery into the battery carrier until the

RAID battery latch locks into place. See Figure 3-15.

2 Connect the cable connecting to the LSI 9260-8i card.
3 Install the system-board assembly. See “Installing a System-Board

Assembly” on page 116.

4 Reconnect the system to the electrical outlet and turn the system on,

including any attached peripherals.
