2.5" Hard-Drive Backplane With Expander

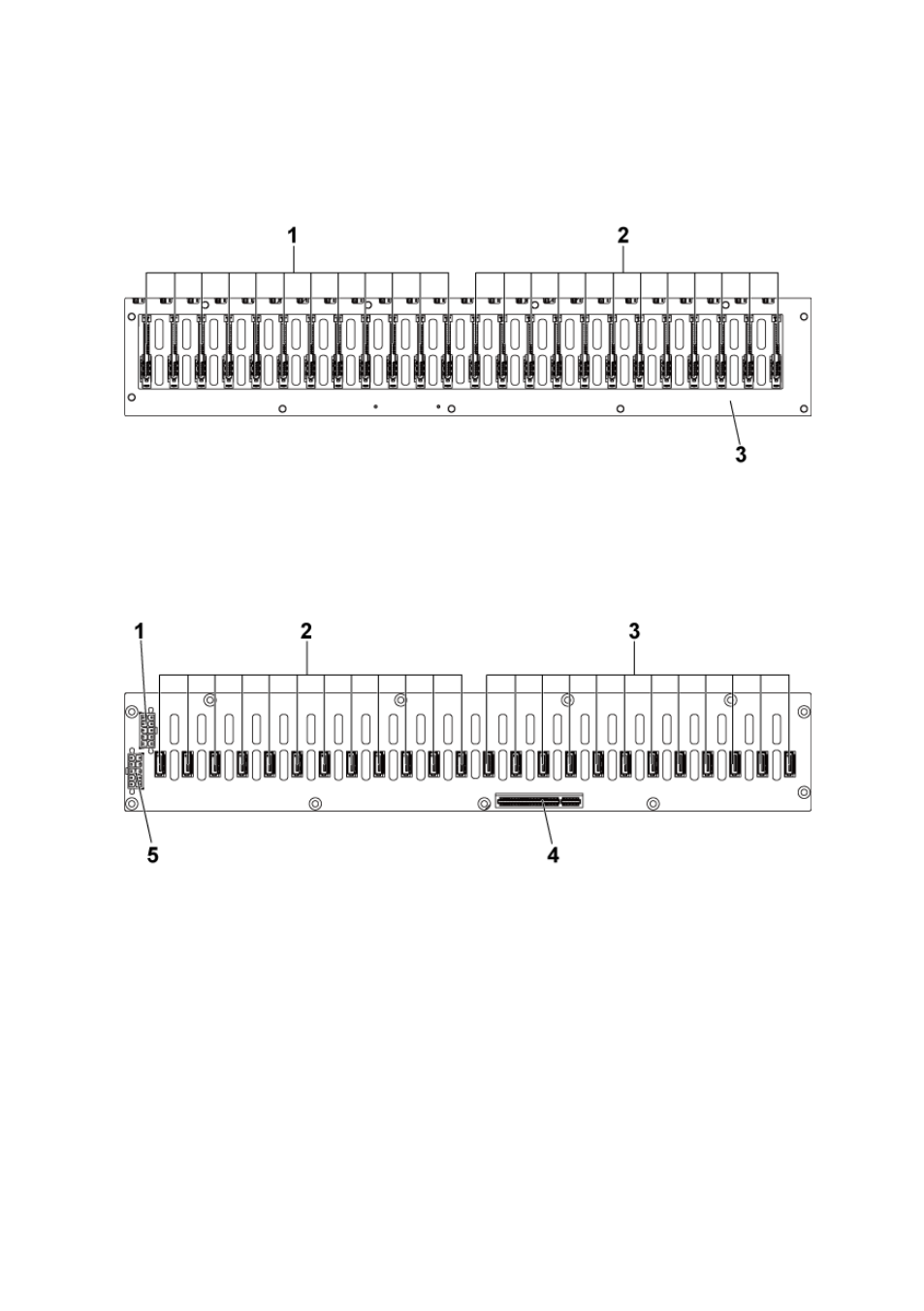

Figure 5-6. Front View of the Backplane

1 SATAII and SAS connectors 1-12

(from left to right) for system board 1

2 SATAII and SAS connectors 1-12

(from left to right) for system board 2

3 2.5” backplane with expander

Figure 5-7. Back View of the Backplane

1 power-supply connector 1

2 SATAII hard-drive connectors 1-12

(from right to left) for system board 2

3 SATAII hard-drive connectors 1-12

(from right to left) for system board 1

4 PCI-E x8 connector

5 power-supply connector 2
