Jumpers and Connectors | 239
Fan Controller Board Connectors

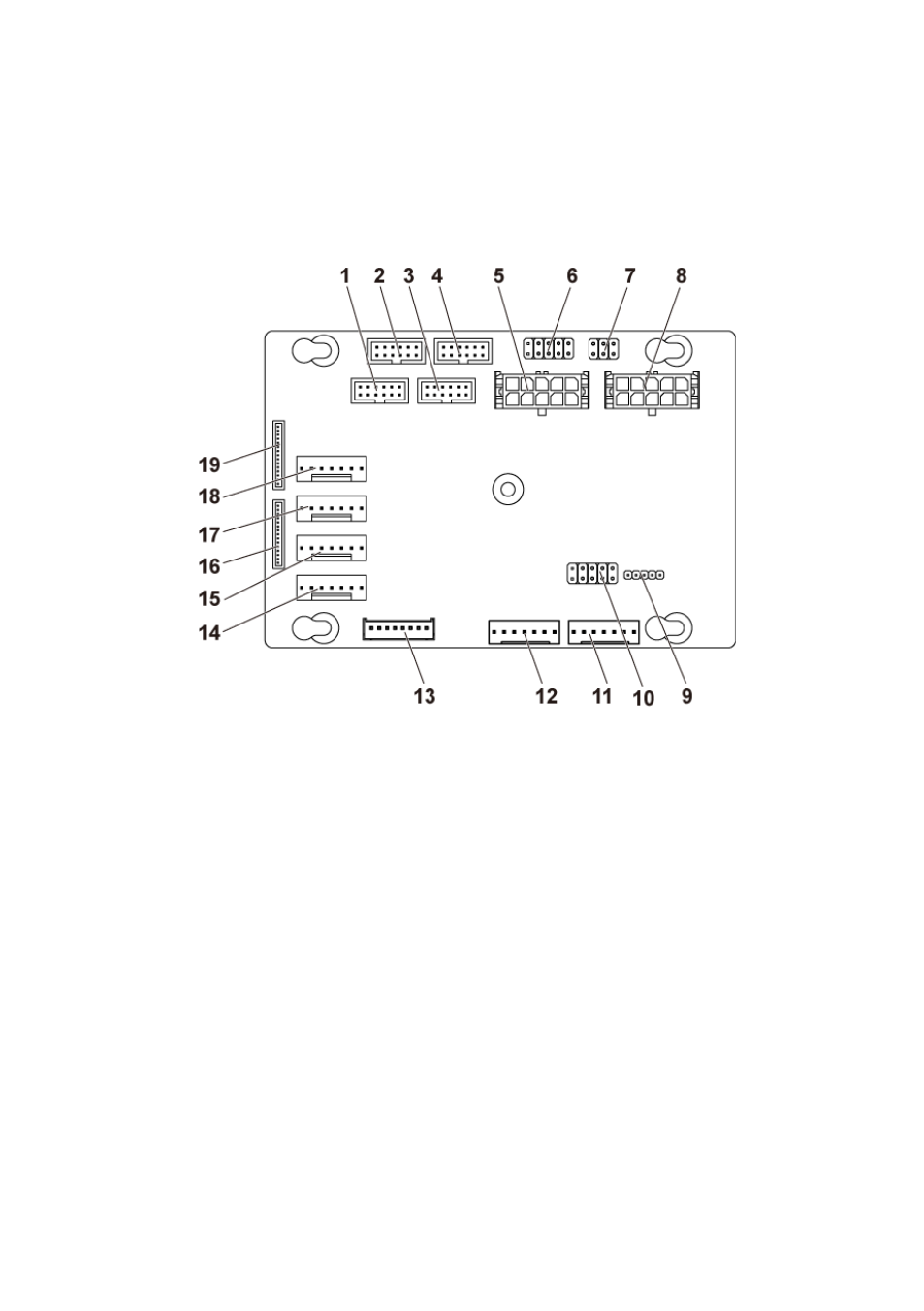

Figure 5-13. Fan Controller Board Connectors
1 front-panel connector for system
board 4 (not used) 2 front-panel connector for system
board 2
3 front-panel connector for system
board 3 (not used) 4 front-panel connector for system
board 1
5 system fan board power connector 1 6 *FCB firmware recovery and PS-ON
connector
7 system fan speed control jumper 8 system fan board power connector 2
9 FCB firmware update connector 10 product ID select and power
throttling disable jumper
11 PMbus connector 2 12 PMbus connector 1
13 hard-drive backplane connector 14 system fan connector 4
15 system fan connector 3 16 front-panel connector 2
17 system fan connector 2 18 system fan connector 1
19 front-panel connector 1
