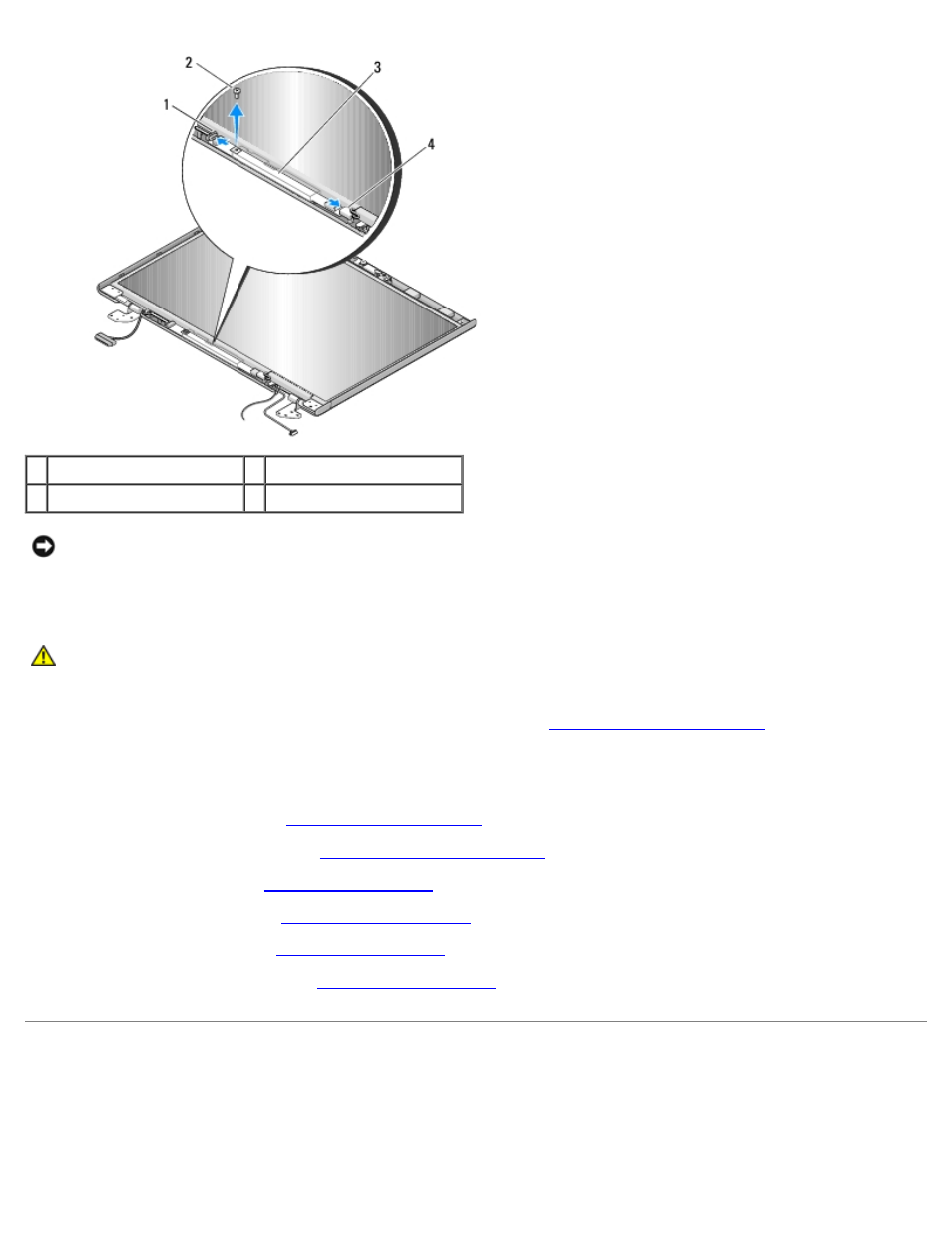

1 display inverter connector 2 M2 x 3-mm screw (1)
3 display inverter
4 display inverter connector
NOTICE: Removal of the bezel from the display back cover requires extreme care to avoid damage to the bezel.
Replacing the Display Inverter
CAUTION: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
This procedure assumes that you have completed the removal procedure Removing the Display Inverter .
1. Connect the two display-inverter connectors to the display inverter.
2. Replace the M2 x 3-mm screw that secures the display inverter.
3. Replace the display bezel (see Replacing the Display Bezel ).
4. Replace the display assembly (see Replacing the Display Assembly ).
5. Replace the keyboard (see Replacing the Keyboard ).
6. Replace the hinge cover (see Replacing the Hinge Cover ).
7. Replace the WLAN card (see Replacing a WLAN Card ).
8. Replace the hard drive cover. See Removing the Hard Drive for an illustration of the hard drive cover.
Display Panel
Removing the Display Panel
