Wireless Local Area Network (WLAN) Card
Dell™ Vostro™ 2510
Service Manual
Removing a WLAN Card
Replacing a WLAN Card
CAUTION: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
Your computer supports a WLAN card. If you ordered a WLAN card with your computer, the card is already installed.
Removing a WLAN Card
1. Follow the procedures in Before Working on Your Computer .
2. Turn the computer upside down.
3. Remove the hard drive compartment cover.
4. Gently remove the tape that secures the two antenna cables on top of the WLAN card.
5. Remove the M2 x 3-mm screw that secures the WLAN card.

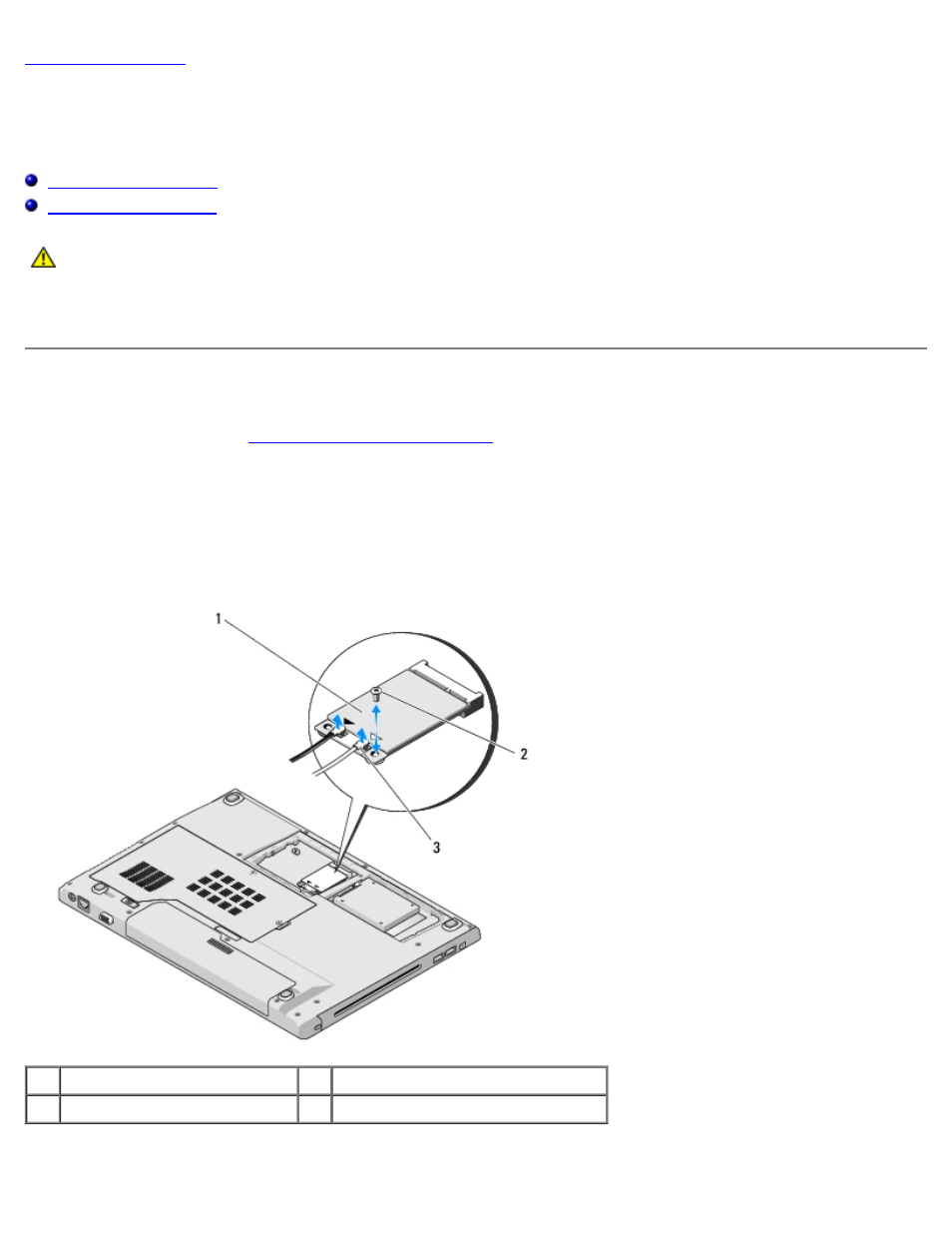

1 WLAN card 2 M2 x 3-mm screw (1)
3 antenna cables (2)
6. Slide the WLAN card at a 45-degree angle out of its connector.
