Fan
Dell™ Vostro™ 2510
Service Manual
Removing the Fan
Replacing the Fan
Removing the Fan
CAUTION: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
1. Follow the instructions in Before Working on Your Computer .
2. Loosen the two screws that secure the memory cover. (See Removing a Memory Module for an illustration of the
memory cover.)
3. Slide the cover out of the compartment and set it aside.
4. Remove the three M2.5 x 5-mm screws that secure the fan to the base of the computer.
5. Disconnect the fan connector from the system board connector, and remove the fan.

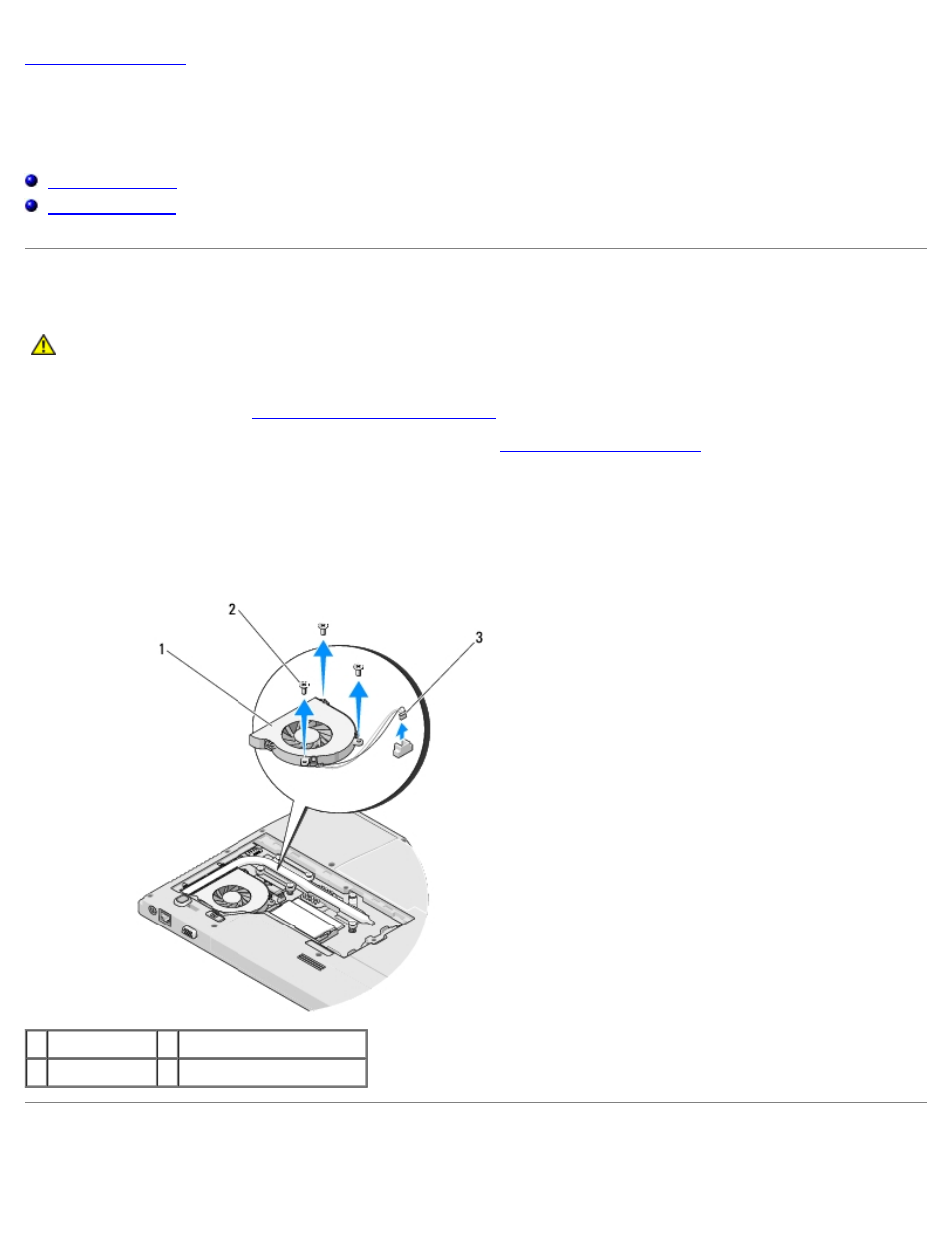

1 fan 2 M2.5 x 5-mm screws (3)
3 fan connector
Replacing the Fan
