94
Installing System Components

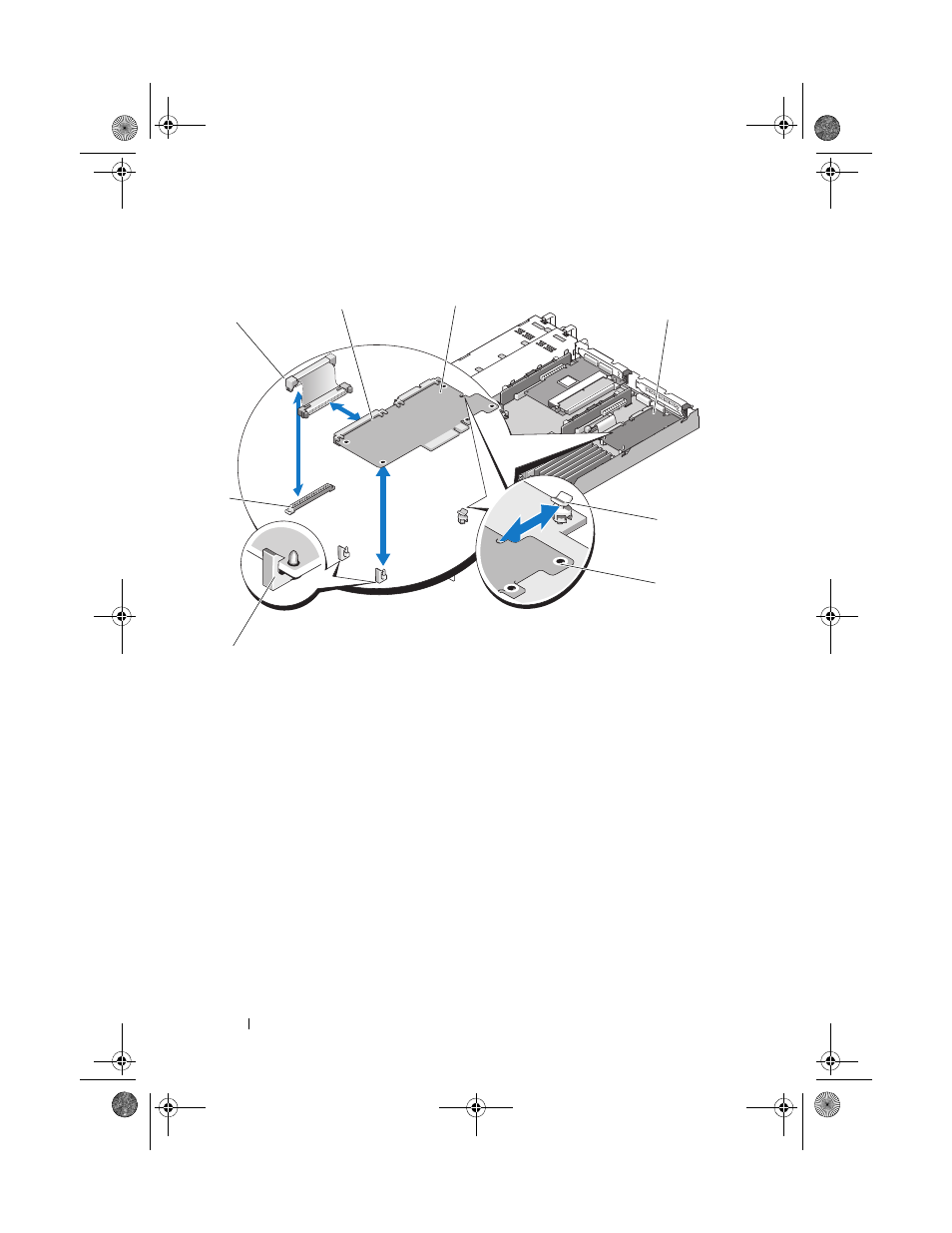

Figure 3-14. Removing and Installing a RAC Card
6 Pull back slightly on one of the blue retention standoff tabs and gently
work the edge of RAC card off of the standoff. Repeat for the other
retention standoff.
7 Angle the free end of the RAC card up and pull the card away from the
support standoff.
1 RAC-card system board connector 2 RAC-card ribbon cable
3 RAC-card connector 4 RAC card
5 RAC card bay 6 retention standoffs
7 standoff holes (5) 8 support standoffs
6
4
1
3
8
2 5
7
