Jumpers and Connectors
Riser Card Connectors
The system is available with either a PCIe riser card or a PCI-X/PCIe riser card
(not shown). See Figure 6-1 and Figure 6-2 for the location and description of
the expansion-card slots on the two riser cards.

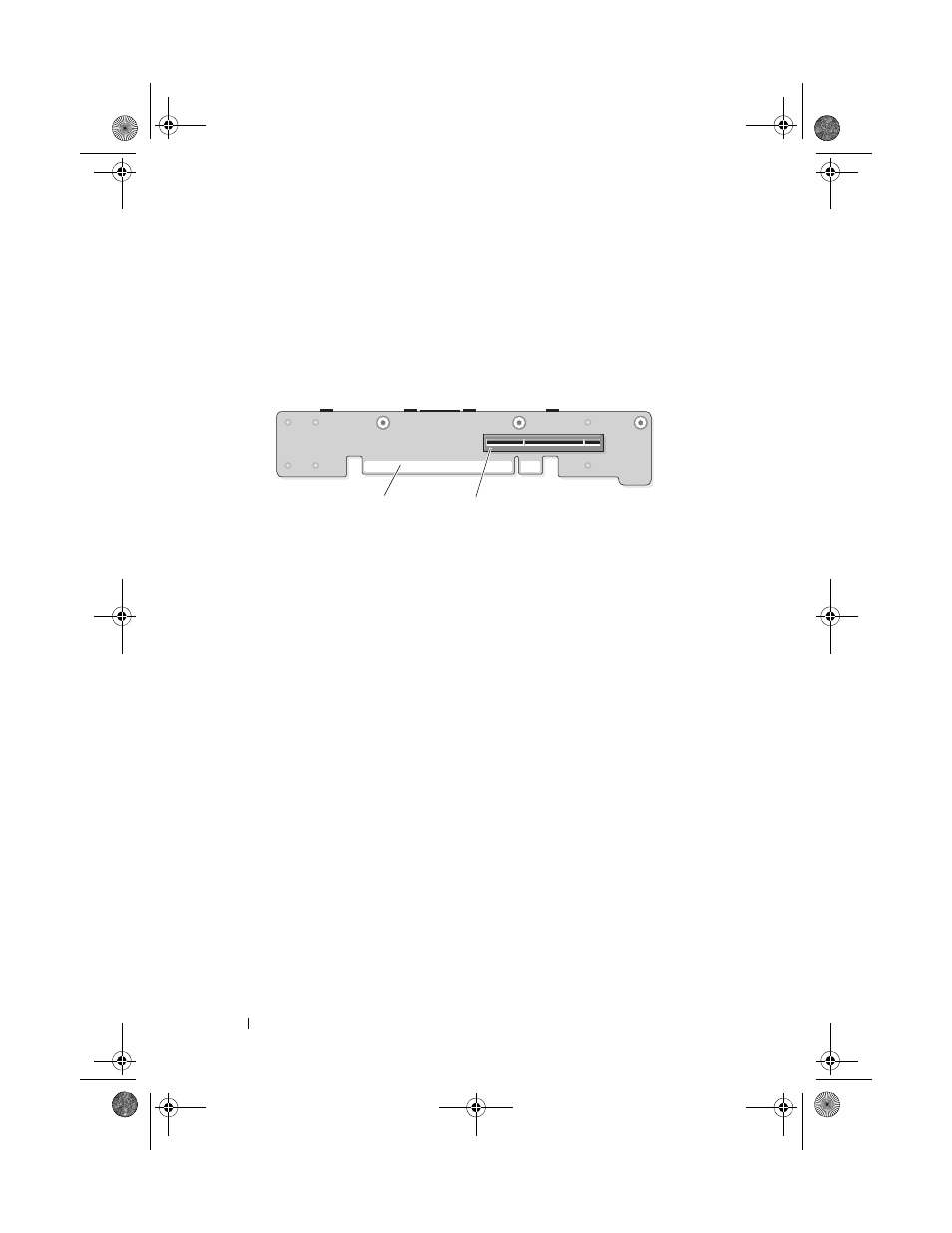

Figure 6-2. PCIe Center and Left Riser Card
Center Riser (RISER1)
Left Riser (RISER2)
1 system board connector 2 expansion card socket
1 system board connector 2 expansion card socket
2 1
