Installing System Components
73
support team. Damage due to servicing that is not authorized by Dell is not covered
by your warranty. Read and follow the safety instructions that came with the
product.
1 Open the system. See "Opening and Closing the System" on page 70.
2 If applicable, disconnect the SAS cable connector on the expansion card.
3 Locate the attachment slots on the left and right sides of the fan modules
and in front of the memory modules. See Figure 3-5.
4 Grasping the right and left sides, gently lift the shroud straight up and
away from the fan assembly. See Figure 3-5.
5 Remove the system board shroud.

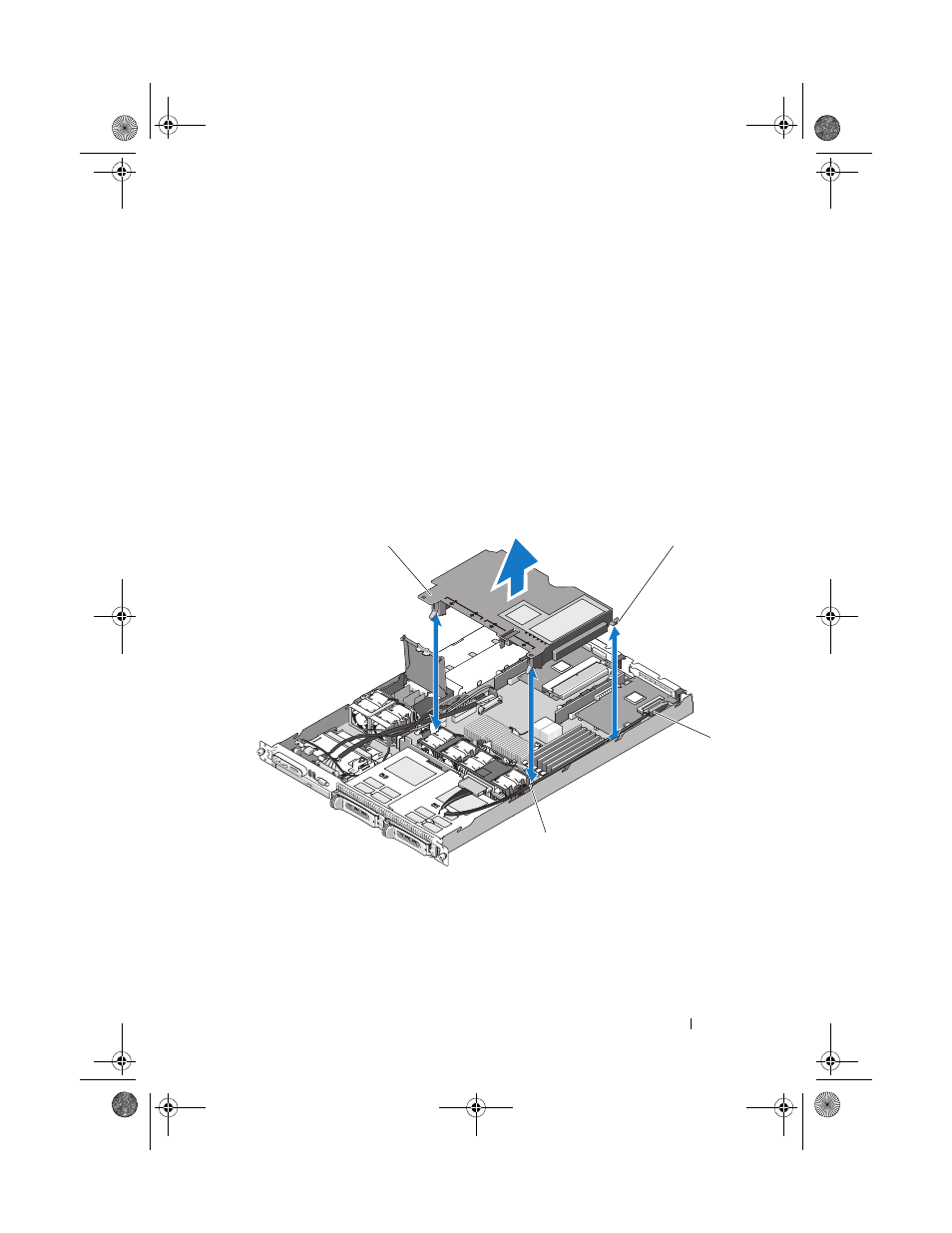

Figure 3-5. Installing and Removing the System Board Shroud
1 system board shroud 2 tabs (3)
3 SAS cable connector 4 tab slots (3)
1
4
2
3
