Installing System Components
77

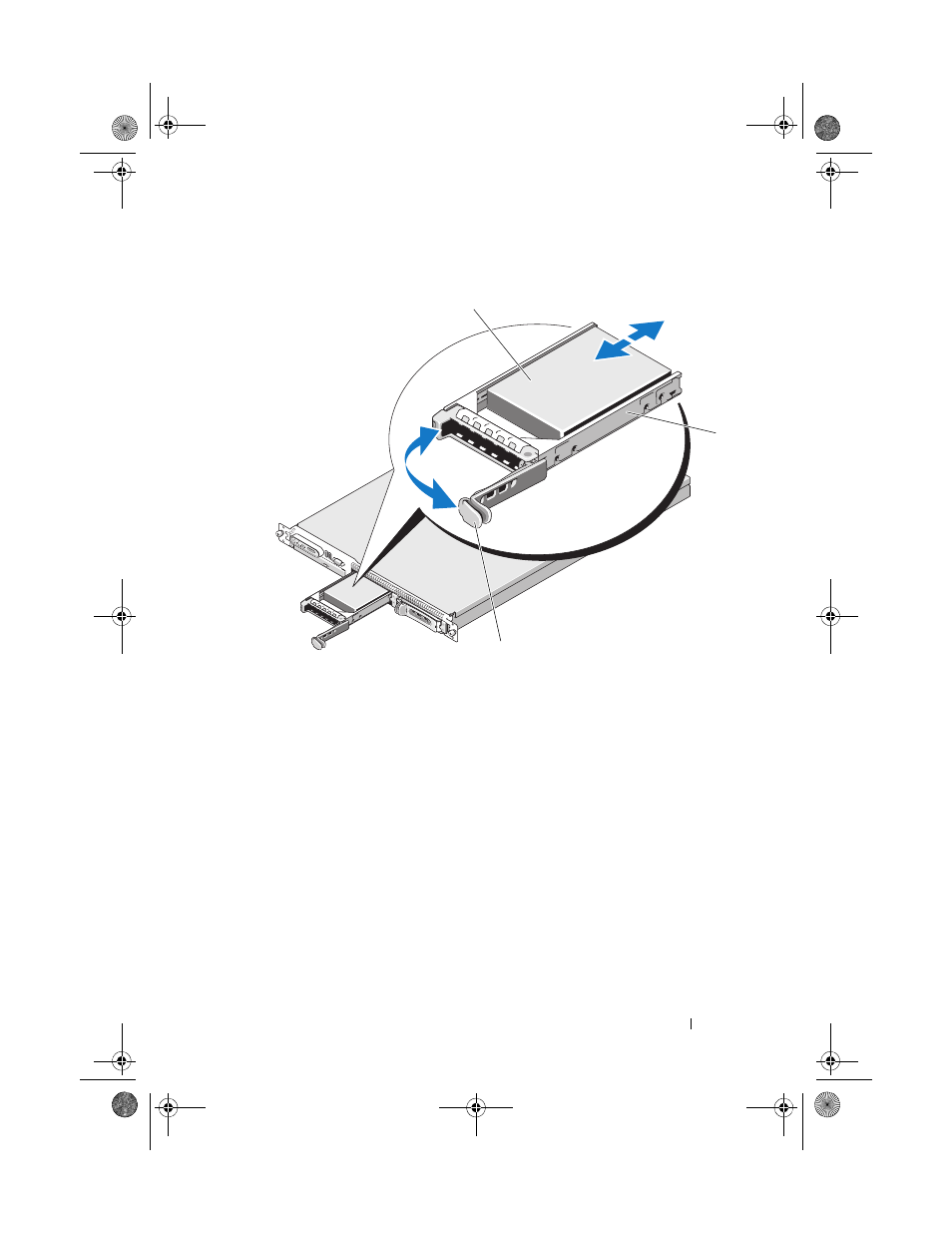

Figure 3-6. Installing a Hot-Plug Hard Drive
3 Install the hot-plug hard drive.
a Open the handle on the hard-drive carrier.
b Insert the hard-drive carrier into the drive bay until the carrier
contacts the backplane.
c Close the handle to lock the drive in place.
4 Replace the front bezel, if it was removed in step 1. See "Front Bezel" on
page 69.
1 hard drive 2 drive carrier
3 drive carrier release handle
1
2
3
