Jumpers and Connectors

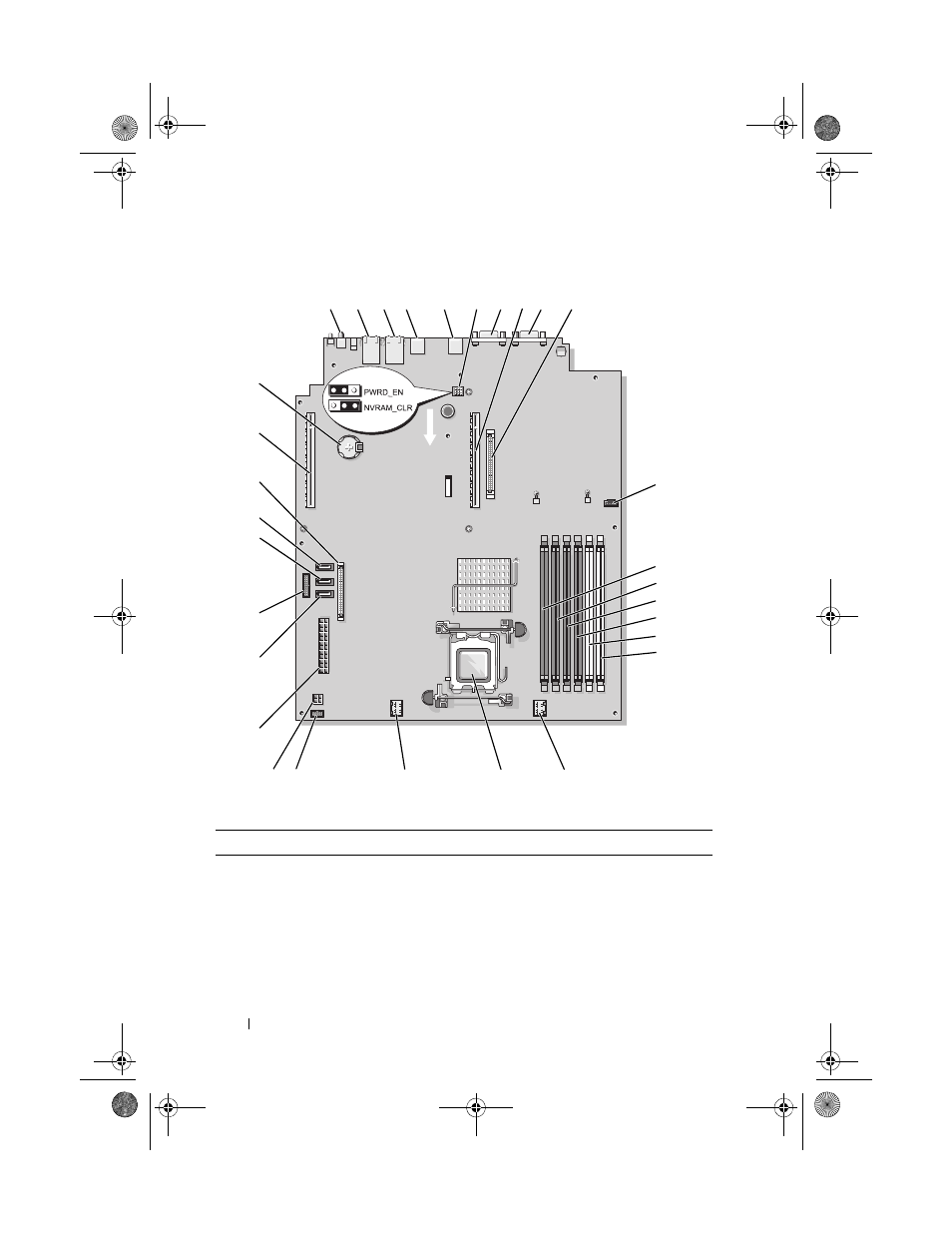

Figure 6-1.

System Board Connectors

Table 6-2.

System Board Connectors

Item

Connector

Description

1

SYSTEM ID

System ID LED indicator

2

NIC2

NIC 2 connector

3

NIC1

NIC 1 connector

4

USB2

USB connector

5

USB1

USB connector

10

12
13
14
15
16
17

18

19

22

21

23

28

20

29

30

11

27

25

26

24

1

2

3

4

7

5

9

6

8
