Control Panel Assembly Connectors
Figure 6-3 shows the configuration of the I/O control panel assembly
connectors.

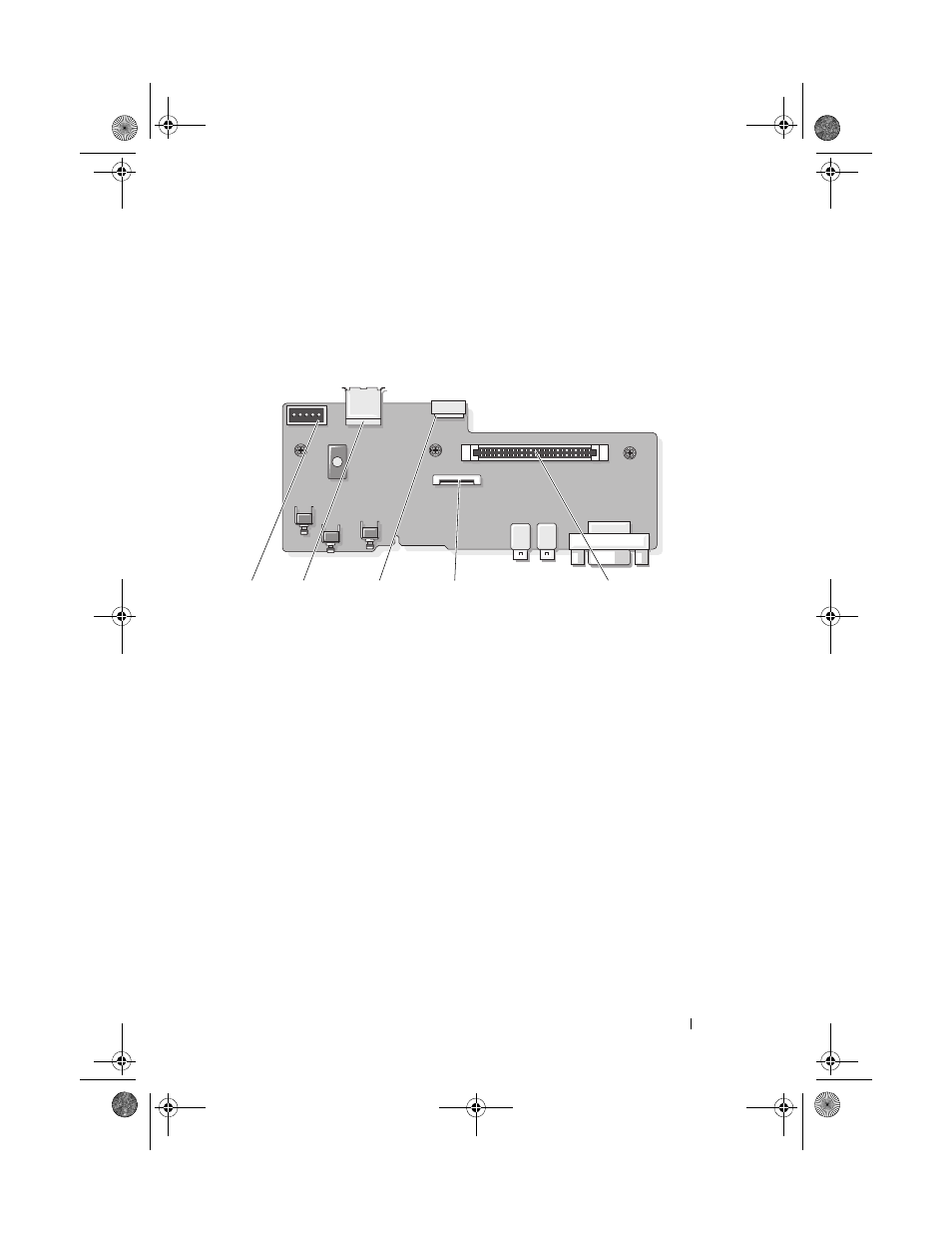

Figure 6-3. Input/Output Control Panel Board
1 backplane connector (BP_12C) 2 internal USB connector (USB3)
3 internal USB key cable connector
(USB_CONN) 4 LCD panel connector (FRONT PANEL)
5 control-panel system board
connector (J_Planar)
3 5 2 1 4
