Page 18

18
|
Installation

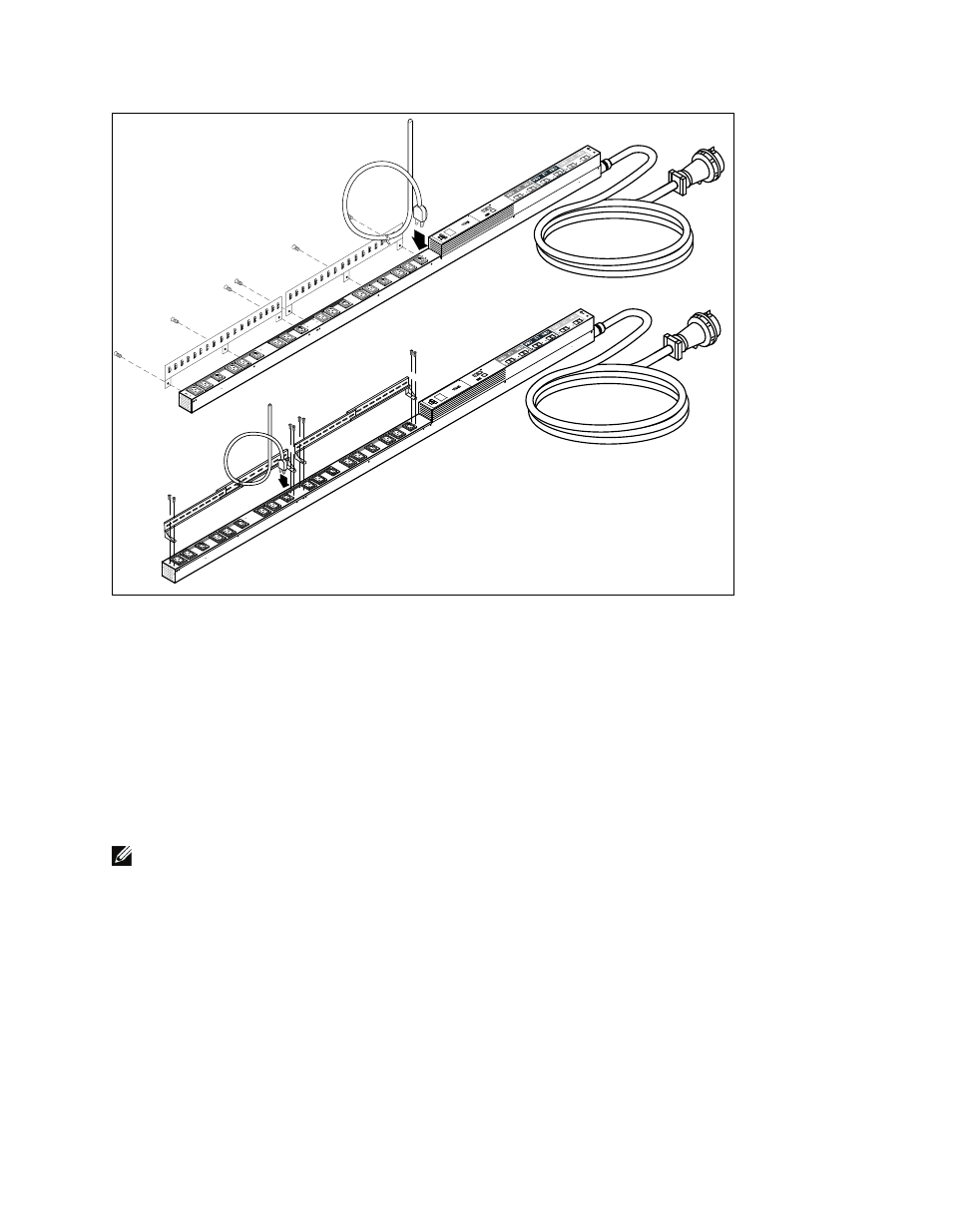

Side-Mounted Strain Relief Bracket
Front-Mounted Strain Relief Bracket
Figure 6. Strain Relief Bracket
Installing Deep Mounting Pegs
To install the deep mounting pegs (supplied) on the side of the rPDU for 90° mounting installations:
1
Remove the two deep mounting pegs and two mounting screws from the accessory bag.
2
Locate the top and bottom peg mounting holes on the side of the rPDU (see Figure 7).
3
Align the peg mounting holes on the rPDU with the mounting hole in the center of the deep mounting
pegs.
4
Secure the top and bottom deep mounting peg with the provided screws (see Figure 7).
NOTE:
Dell recommends removing the standard mounting pegs on the rear of the rPDU if you install the deep mounting
pegs (provided in the accessory kit shipped with the rPDU). Retain the standard mounting pegs so the rPDU can be
reoriented later if needed.
