The AC adapter converts AC power to the DC power required by the computer. You can connect the AC adapter with your computer turned either on or off.
air vents —
The computer uses an internal fan to create airflow through the vents, which prevents the computer from overheating.

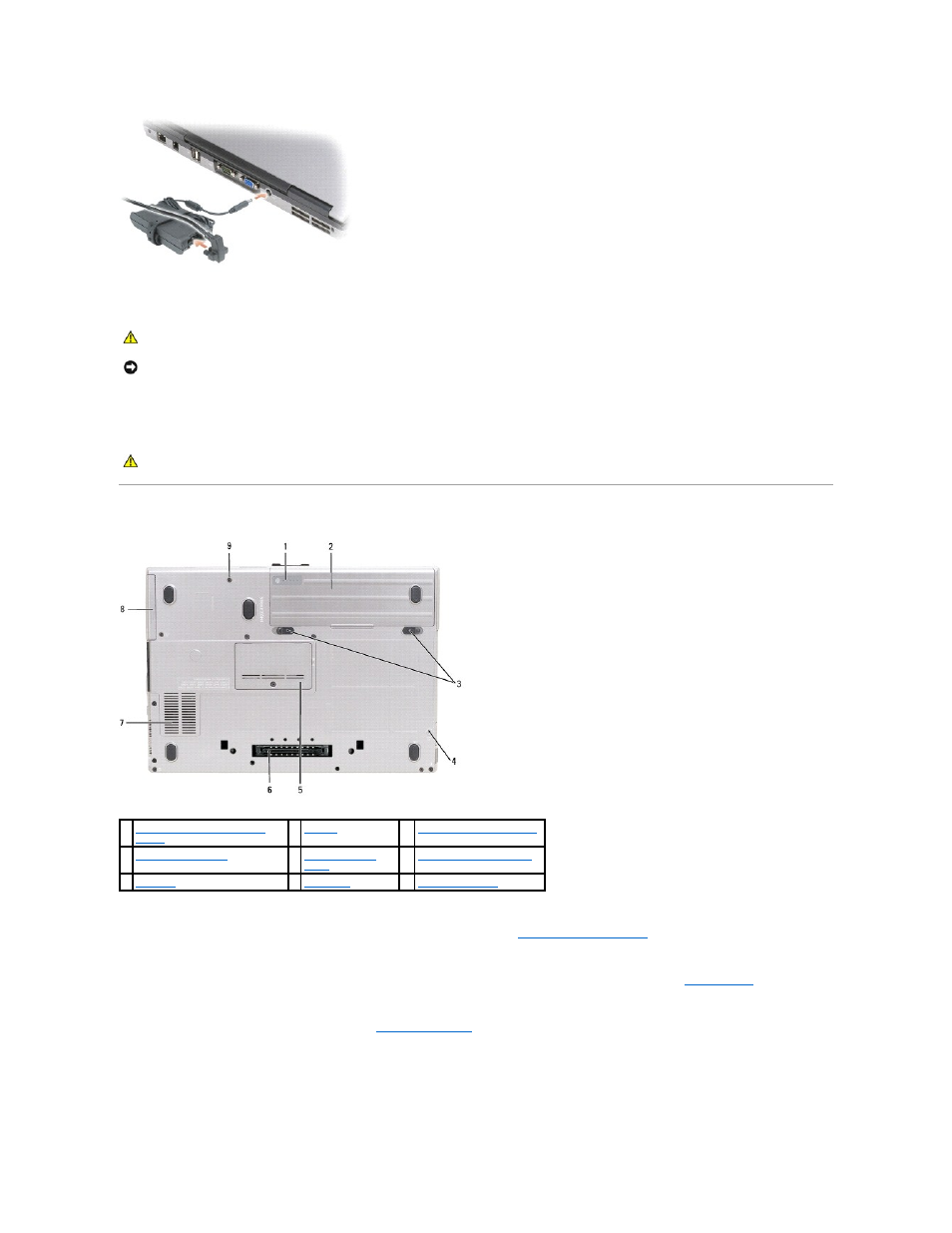

Bottom View
battery charge gauge/health gauge —
Provides information on the battery charge (see
Checking the Battery Charge
).
battery —
When a battery is installed, you can use the computer without connecting the computer to an electrical outlet (see
Using a Battery
).
battery-bay latch releases —
Releases the battery (see
Replacing the Battery
for instructions).
device locking screw —
If present, locks devices, such as an optical drive, in place.
CAUTION:
The AC adapter works with electrical outlets worldwide. However, power connectors and power strips vary among countries. Using an
incompatible cable or improperly connecting the cable to the power strip or electrical outlet may cause fire or equipment damage.
NOTICE:
When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself, and pull firmly but gently to avoid
damaging the cable. When you wrap the AC adapter cable, ensure that you follow the angle of the connector on the AC adapter to avoid damaging the
cable.
CAUTION:
Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,
such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.
1
battery charge gauge/health
gauge
2
3
(2)
4
5
6
7
8
9
(2)
